Harmony of elegance, majestic dimensions, and innovation
Pivot entrances
The Pirnar Pivot line redefines the concept of entrance by combining innovation and elegance with an unparalleled experience of opening and passing through the door. They are built on the only patented CarbonCore carbon construction for pivot doors, making them suitable for houses in all environments and climates. The pivot doors feature impressive dimensions and offer countless customization options, fulfilling the most demanding tastes and styles of homeowners.
Heavy-duty hinges, feather-light opening, flexible positioning, optimal control over door movement
Top sealing performance that places us at the very peak of quality, automatic sealing, innovative Magnet WeatherSeal technology
Unlimited customization options, a wide selection of materials, colors, equipment, and luxurious coatings
Maximum strength and stability, minimal warping, record-breaking insulation values, exceptional dimensions
State-of-the-art locking systems, smart control via mobile app, 5-layer tempered safety glass

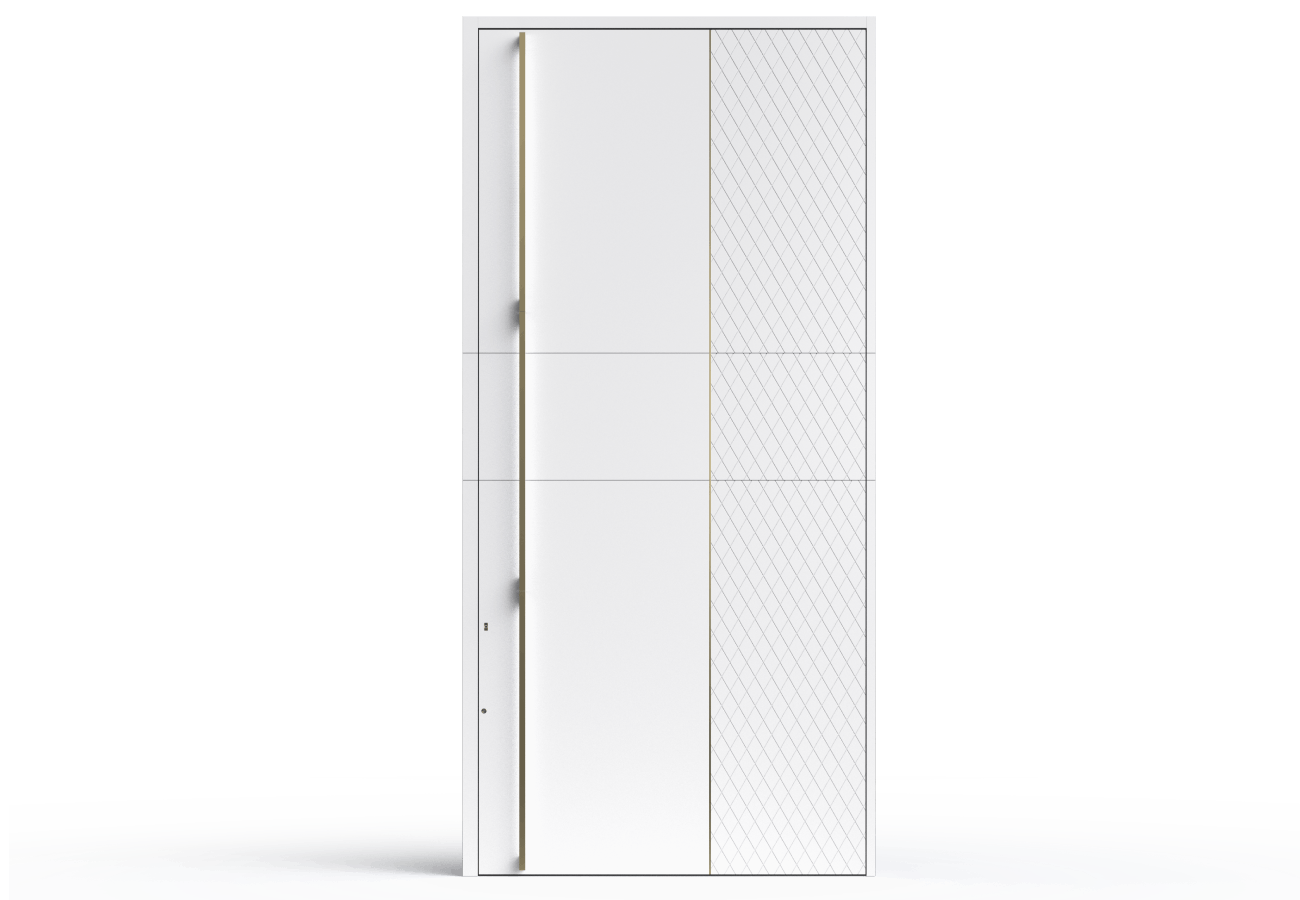

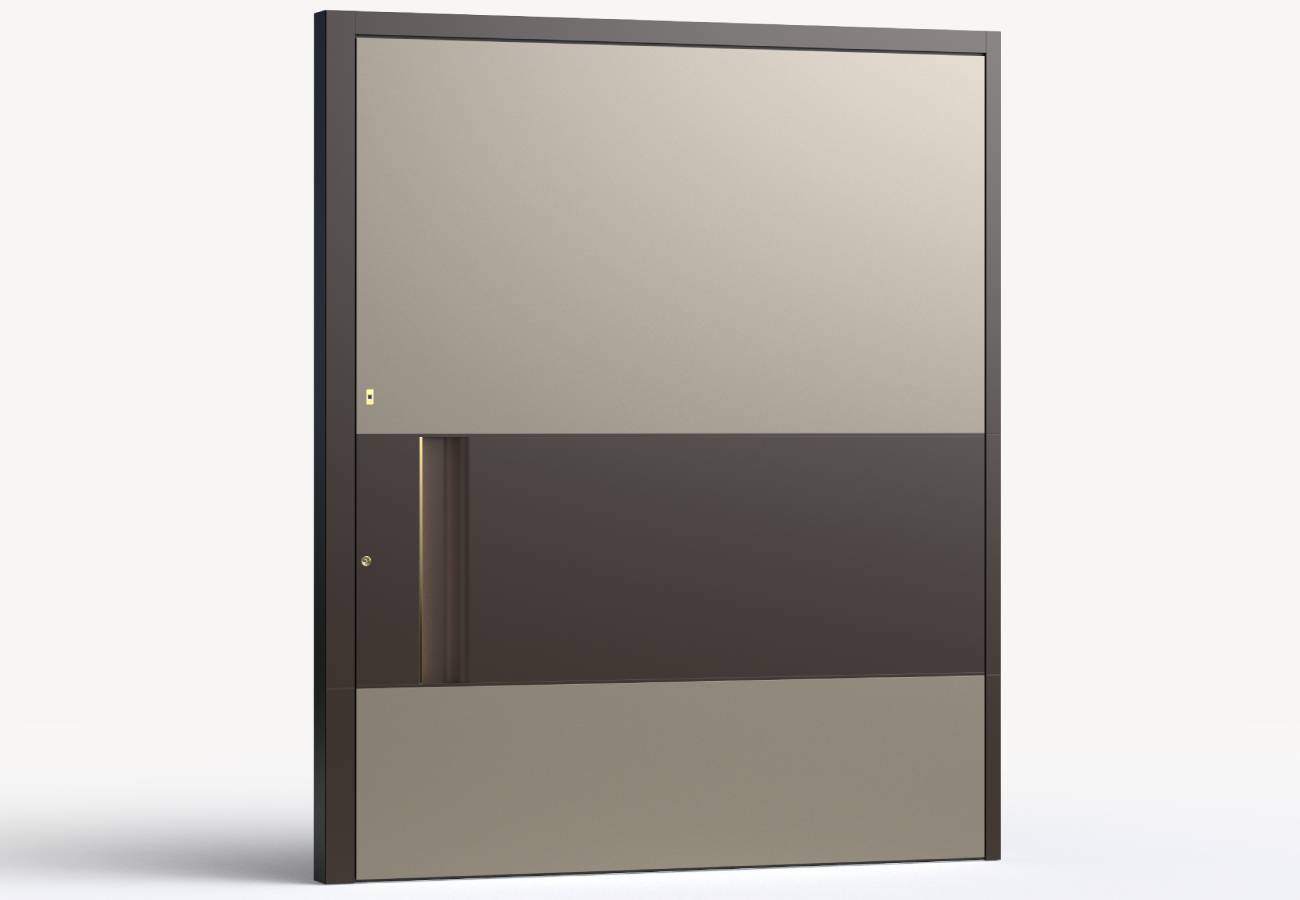

Discover inspirational pivot door designs
Pivot entrances can be designed in numerous combinations of materials, accessories, colours, decors, and dimensions, making the displayed models a source of inspiration for creating unique pivot doors tailored to your wishes. Each design features standard horizontal divisions within the door leaf.

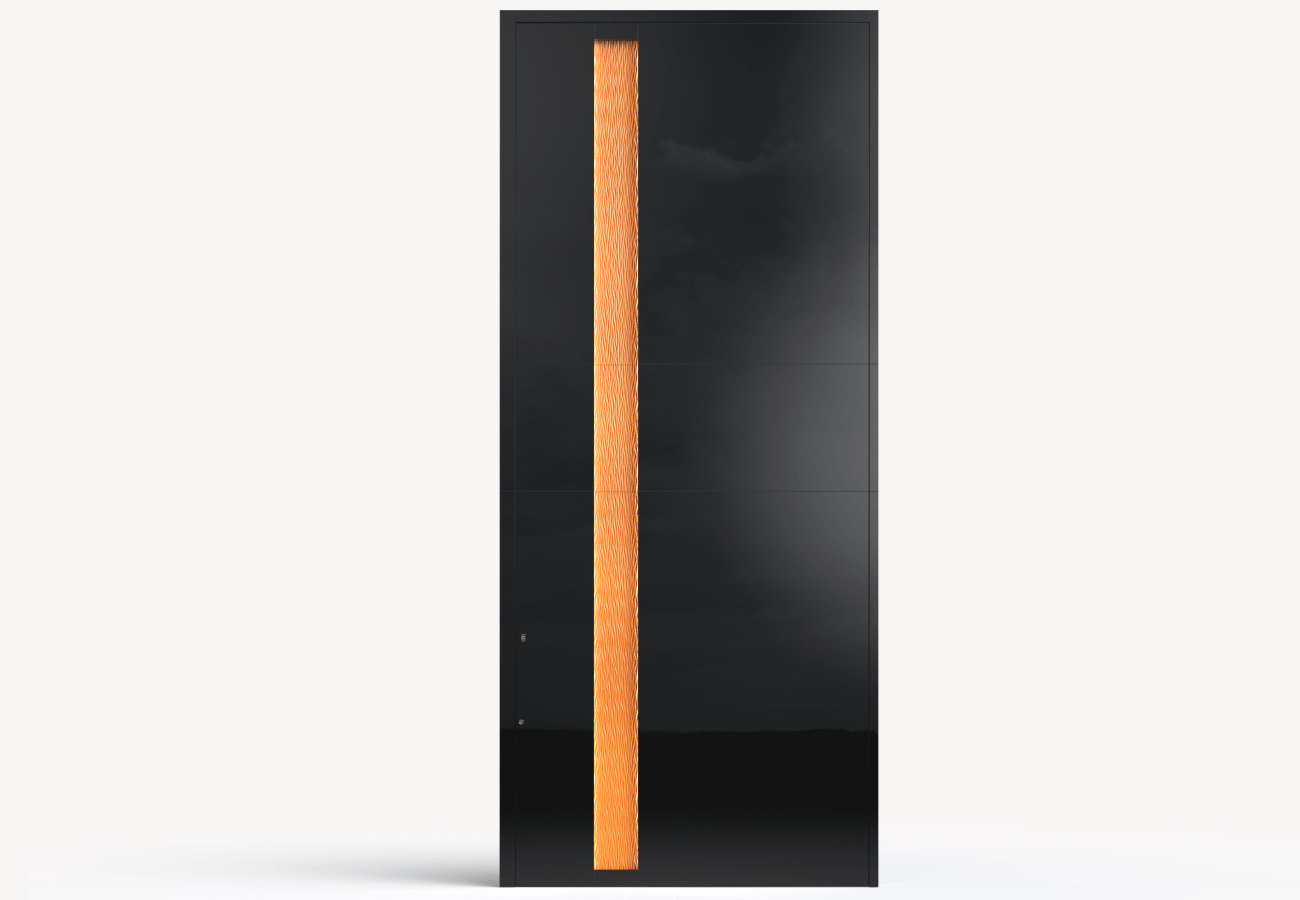

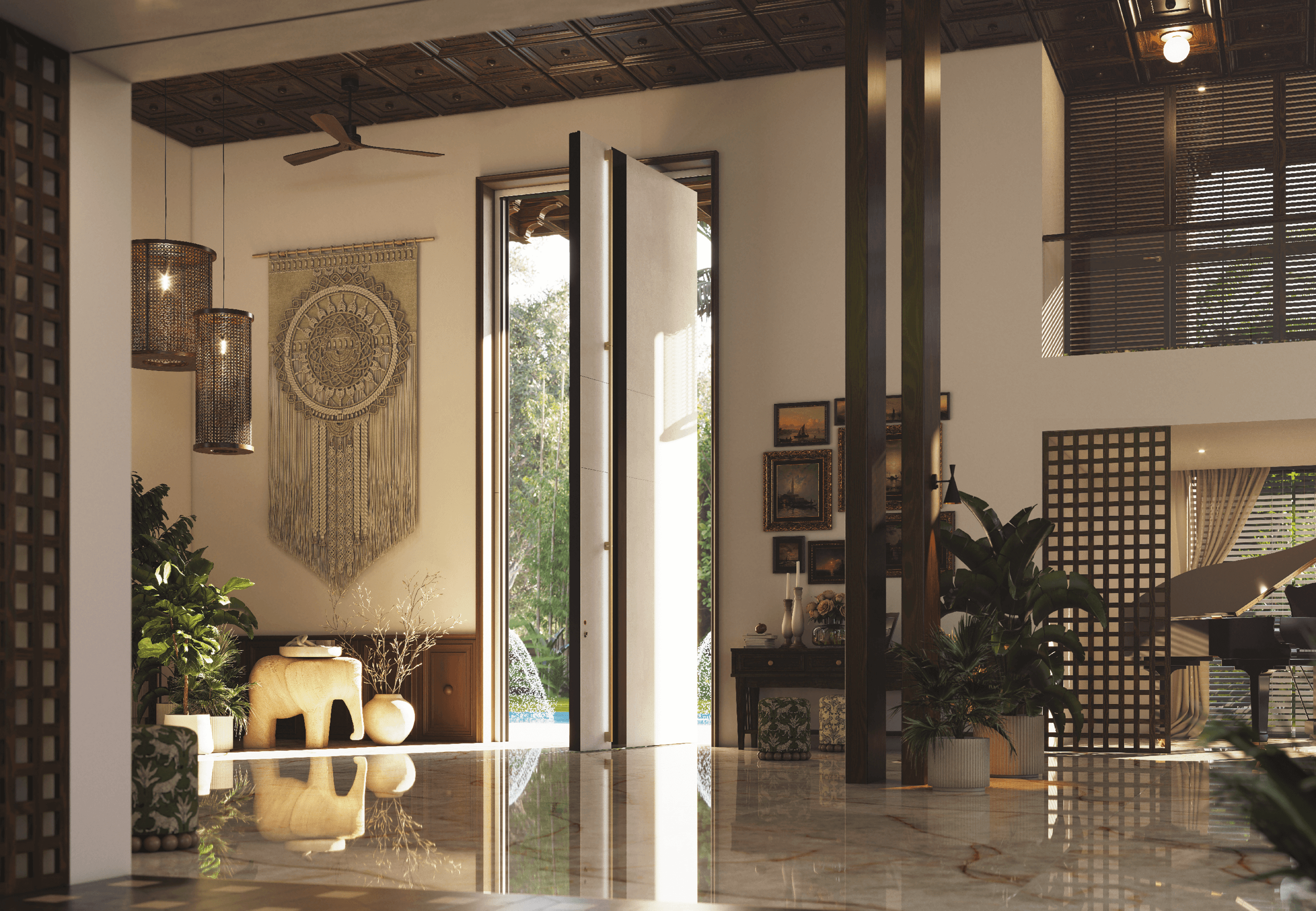

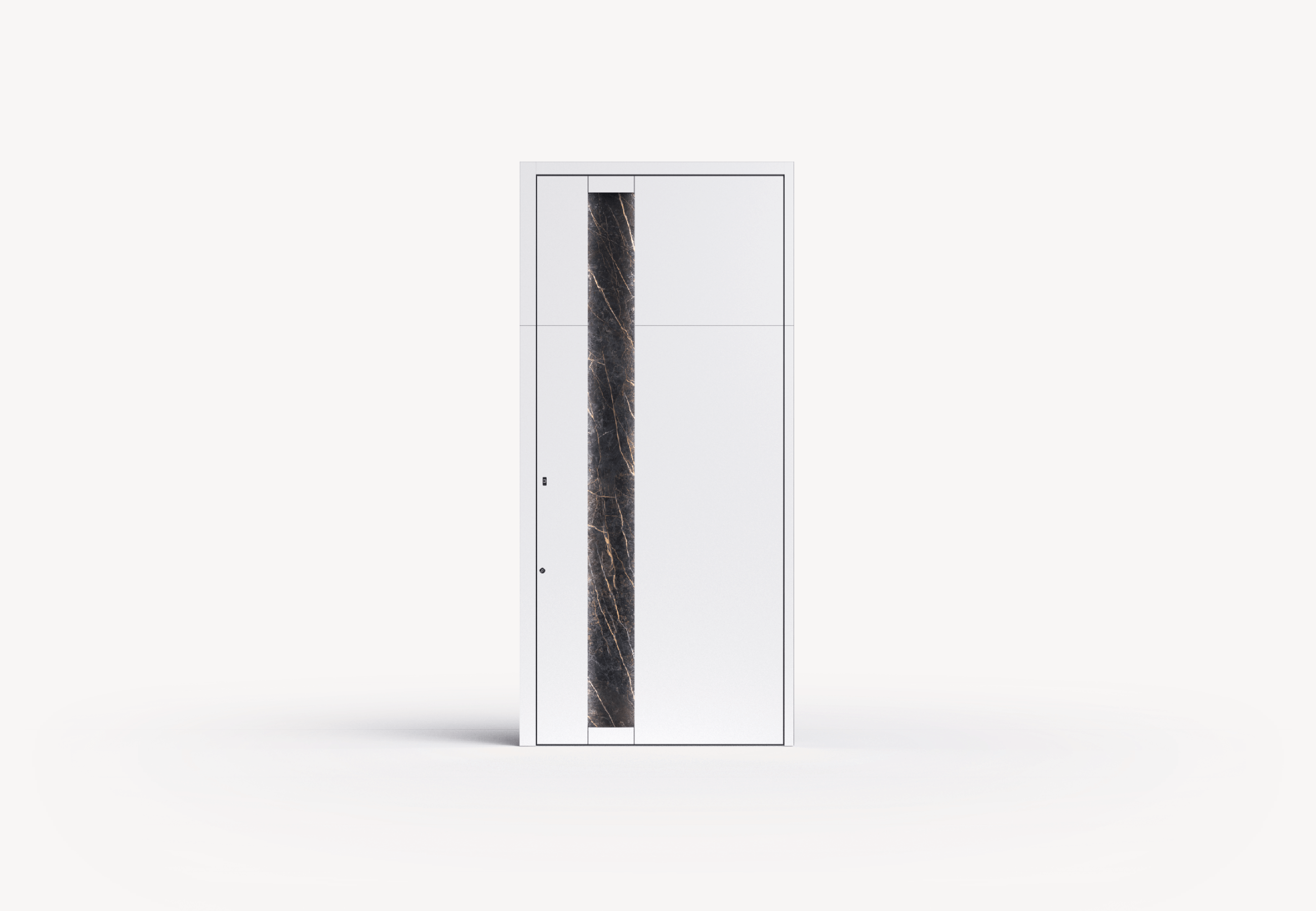

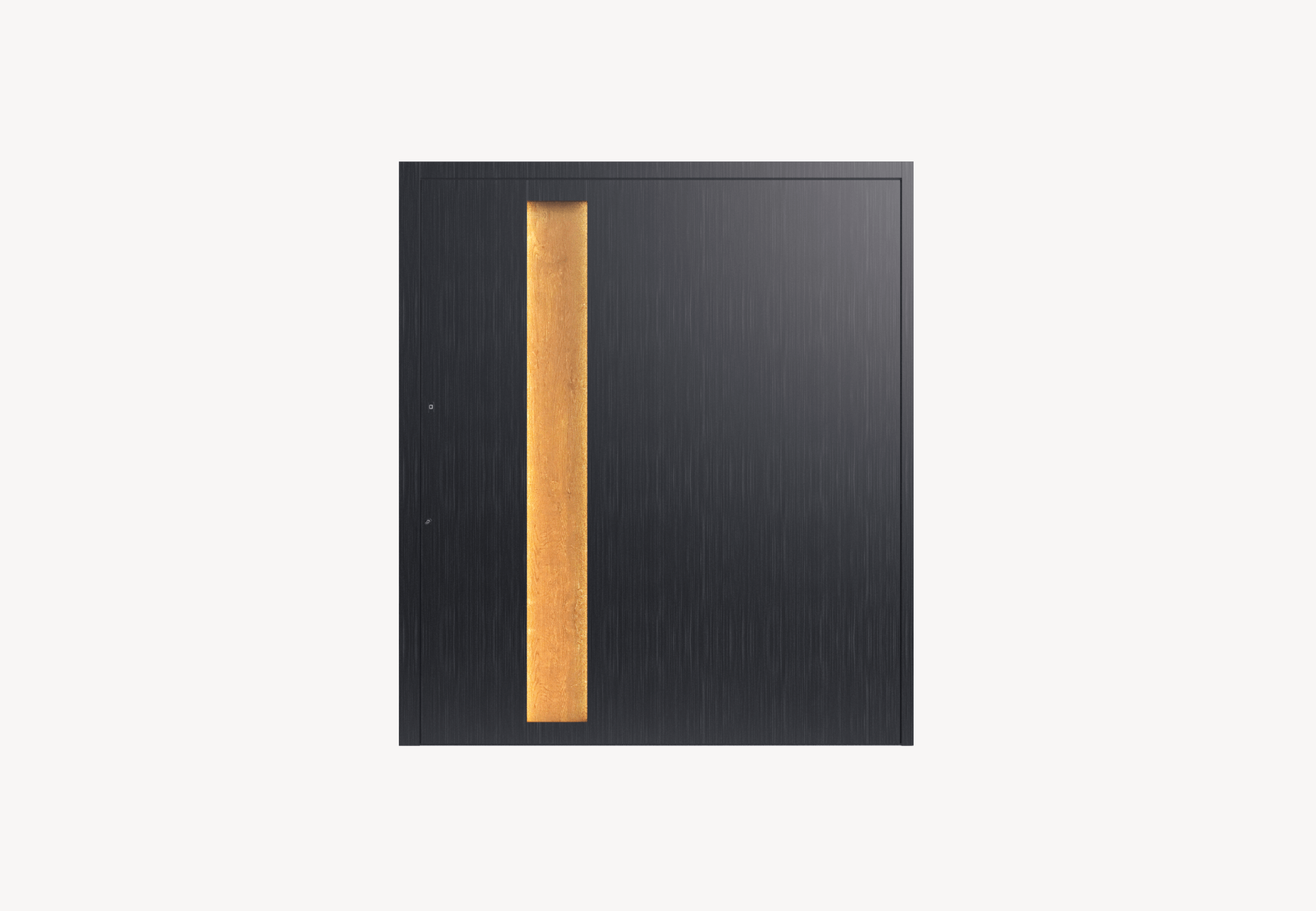

- P_01
This striking pivot door features aluminium with a sophisticated DUNE application, complemented by decorative tempered glass in Night Sky Gloss, PVD coating Golden Honey and a vibrant Saffron Smooth finish. Accented with a recessed handle featuring SmartLux illumination, it incorporates a SecuroSmart finger scanner and the Omnilock system for enhanced security.
- P_02
This captivating pivot door is crafted from luxurious sintered stone in Mont Blanc edition, seamlessly paired with decorative tempered glass in Night Sky Gloss and a PVD coating Volcanic Shadow. Featuring a recessed handle with SmartLux illumination, it also includes a SecuroSmart finger scanner complemented by the Omnilock locking system for optimal security.

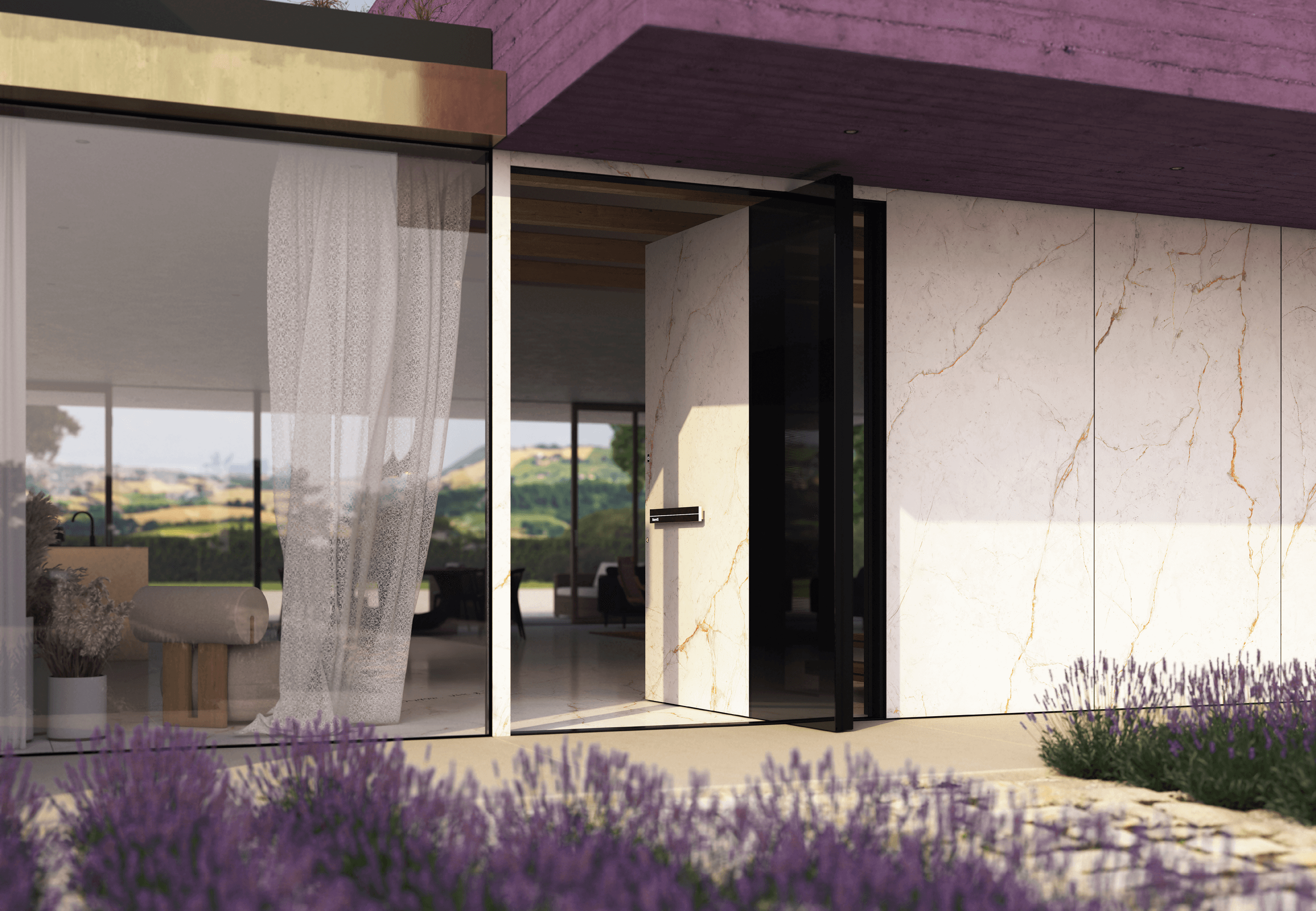

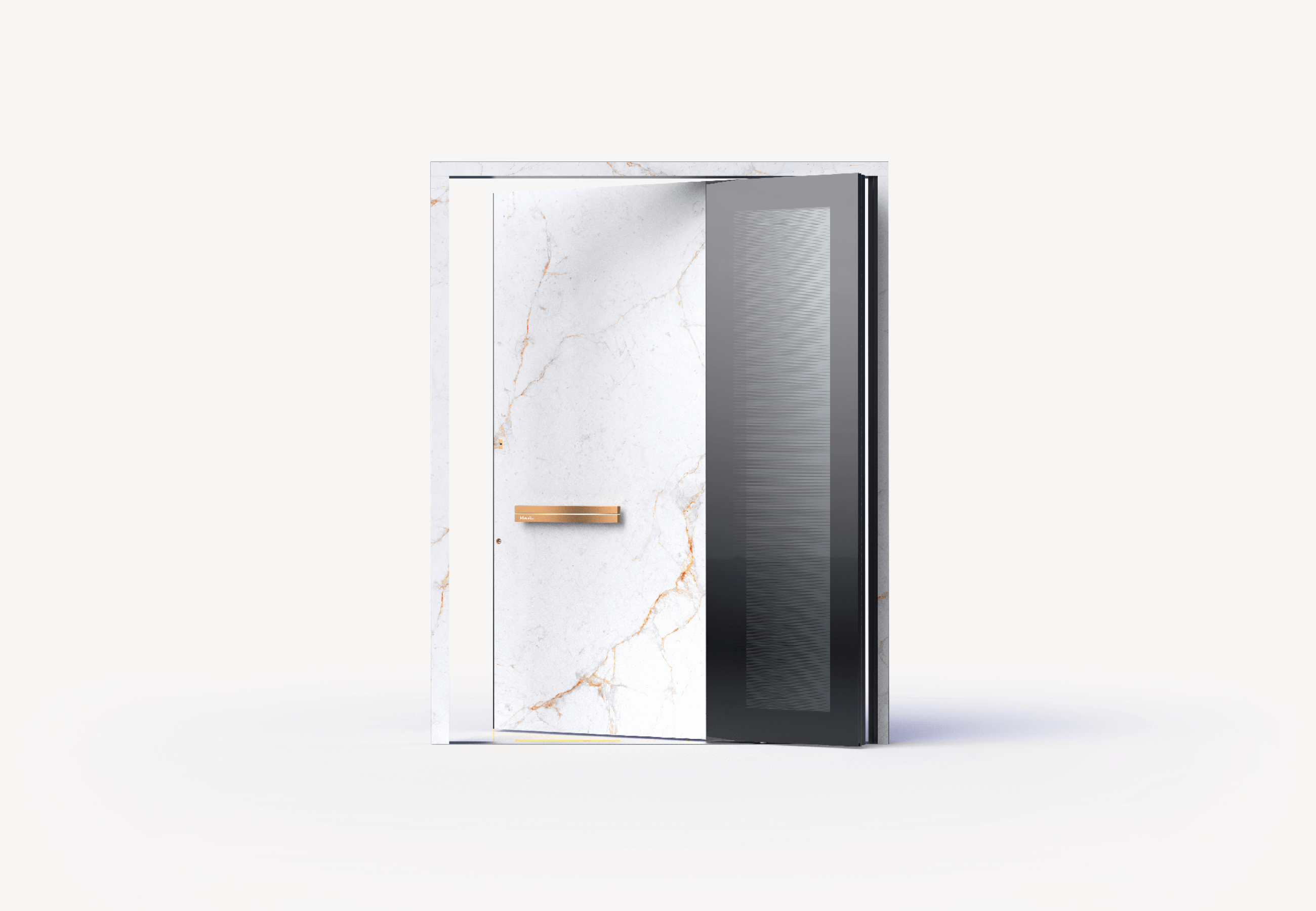

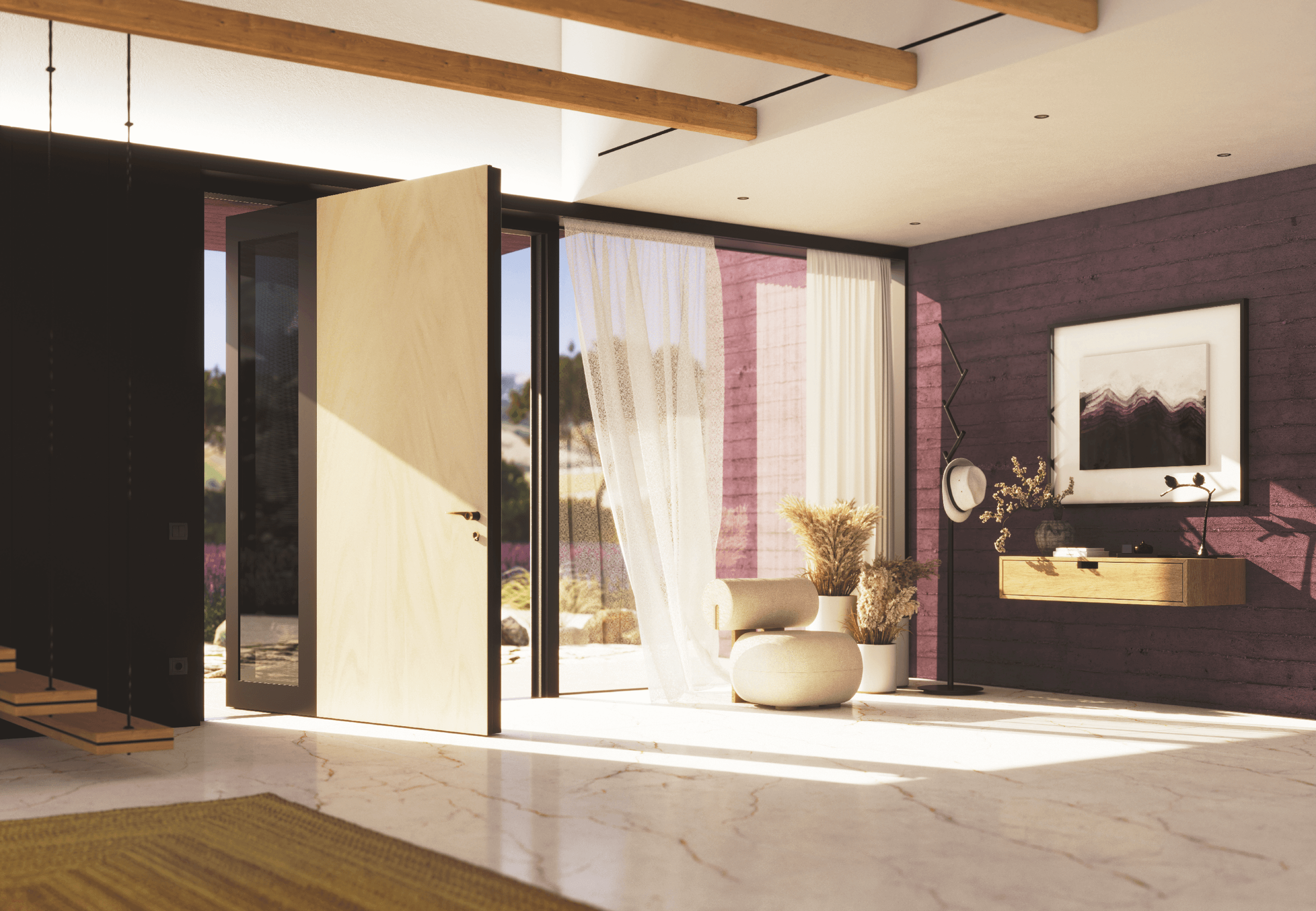

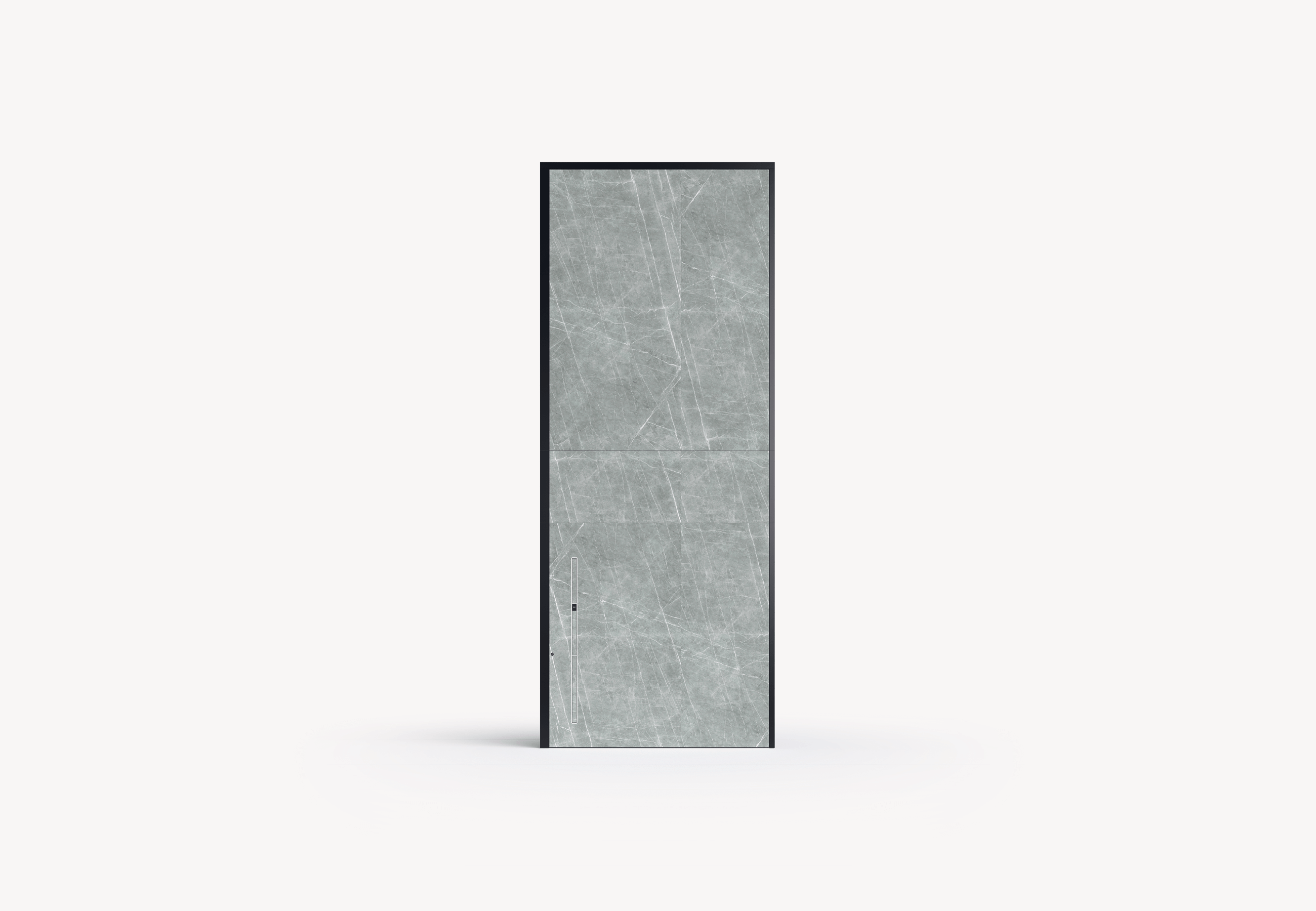

- P_03

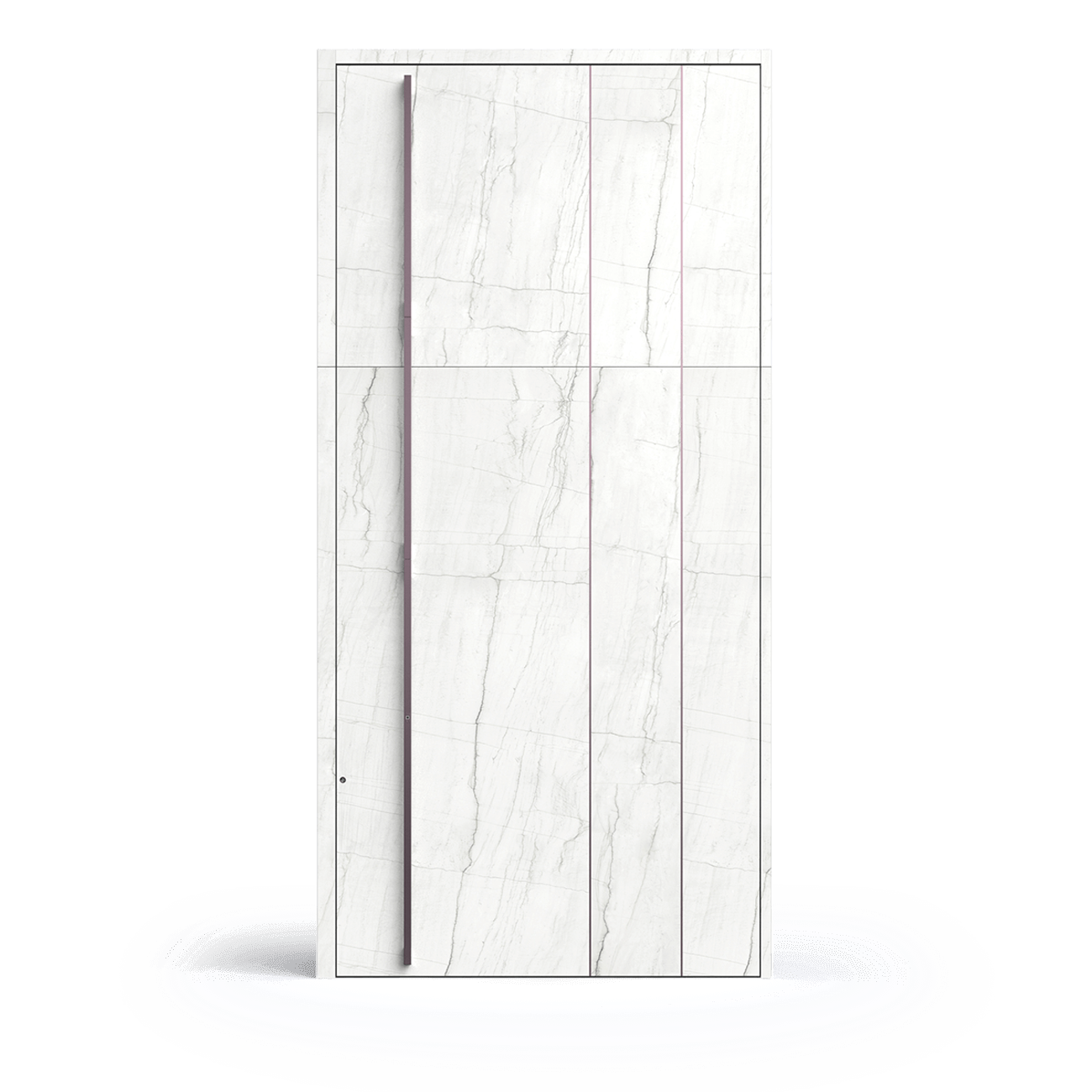

This stunning pivot door features elegant sintered stone in Abu Dhabi White edition, complemented by five-layer decorative tempered glass with a striking Pirnar Grey II motif. The sophisticated handle incorporates SmartLux illumination and PVD coating Copper Dusk, while the SecuroSmart finger scanner and Armo Comfort Electro system ensure enhanced security.

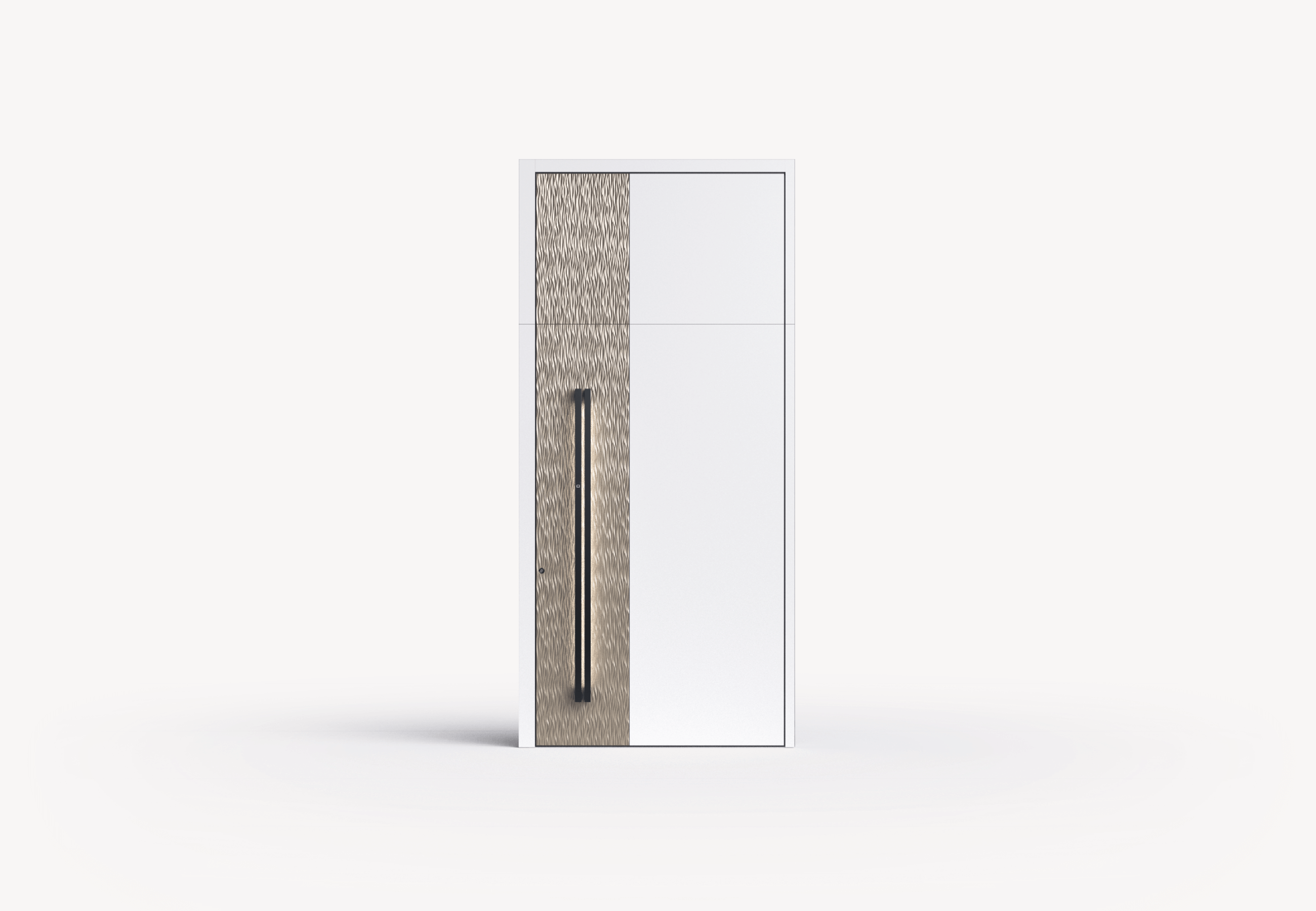

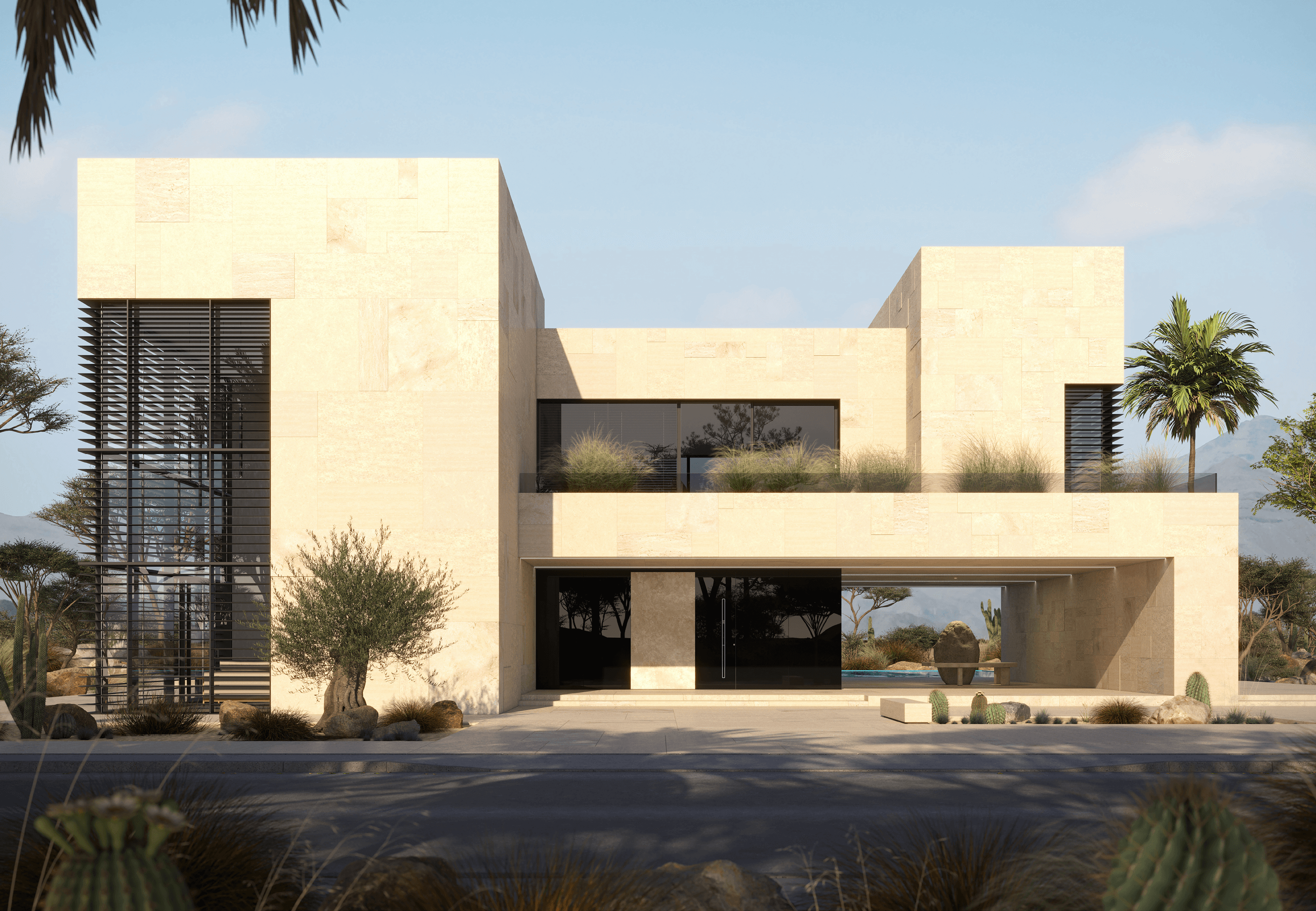

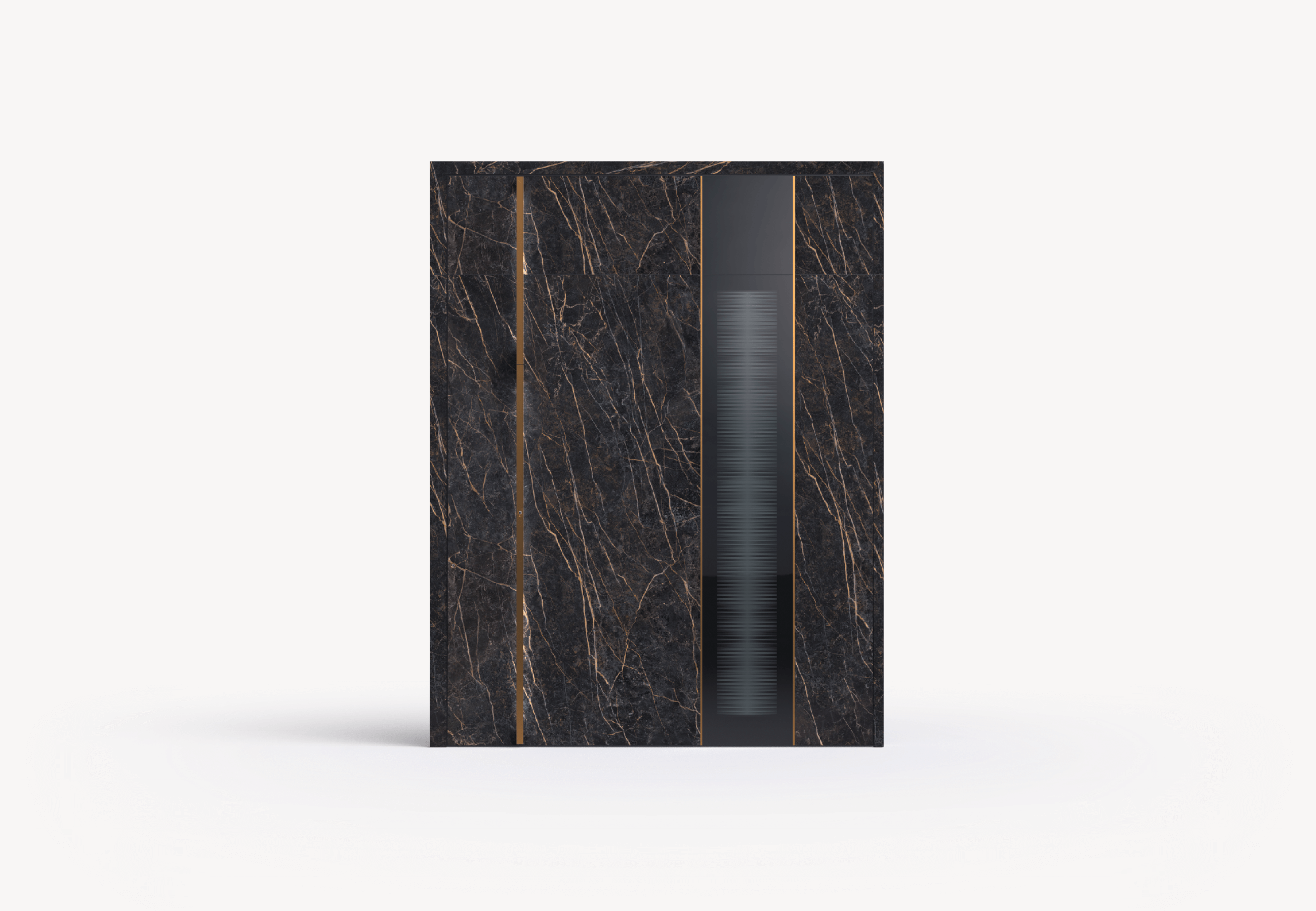

- P_04

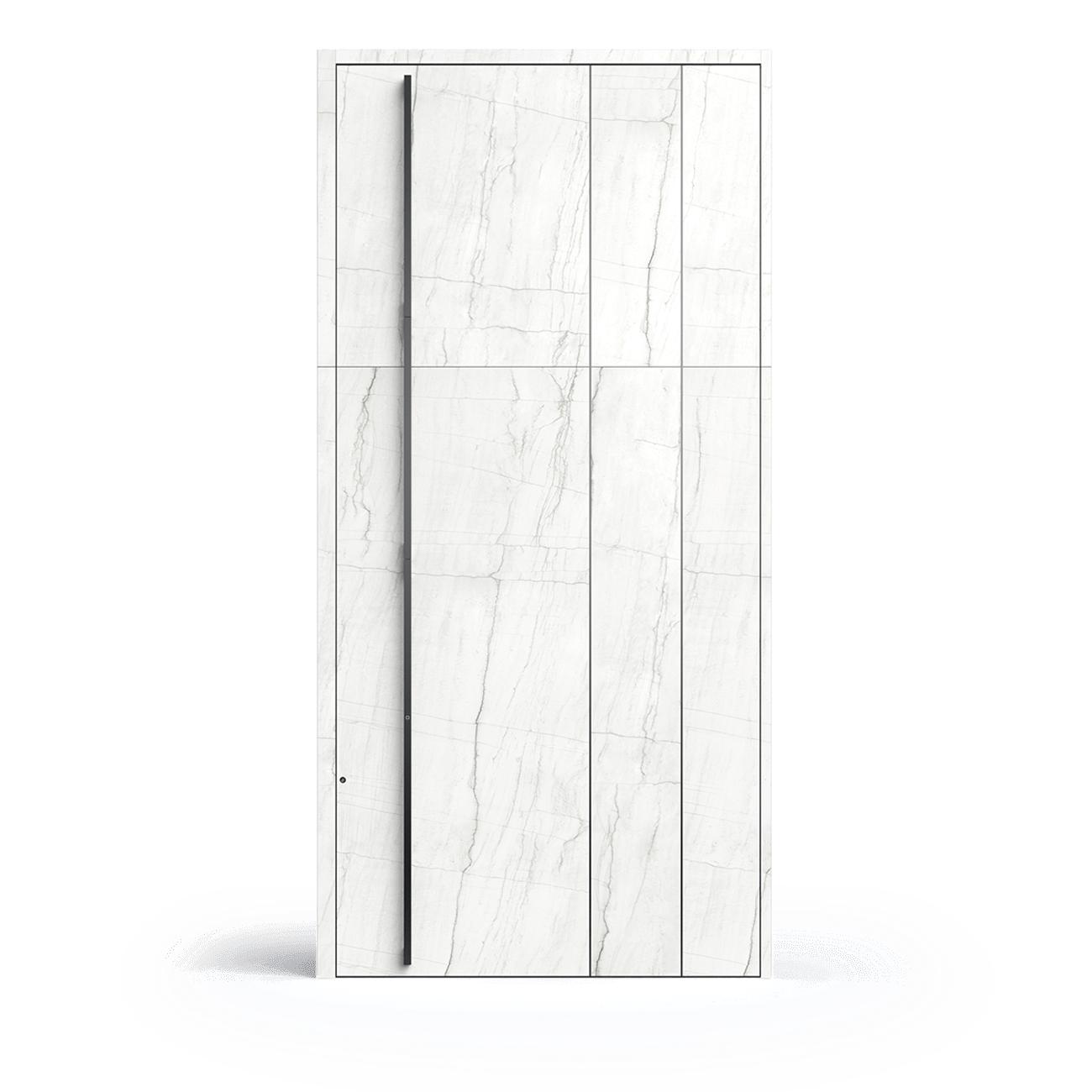

This exquisite pivot door showcases sintered stone in Fusion Rapolano edition, beautifully complemented by decorative tempered glass in Night Sky Gloss. Featuring the sleek OneTouch LUX handle PVD coating Volcanic Shadow, and a state-of-the-art SecuroSmart finger scanner paired with the Armo Comfort Electro locking system, it ensures both elegance and security.

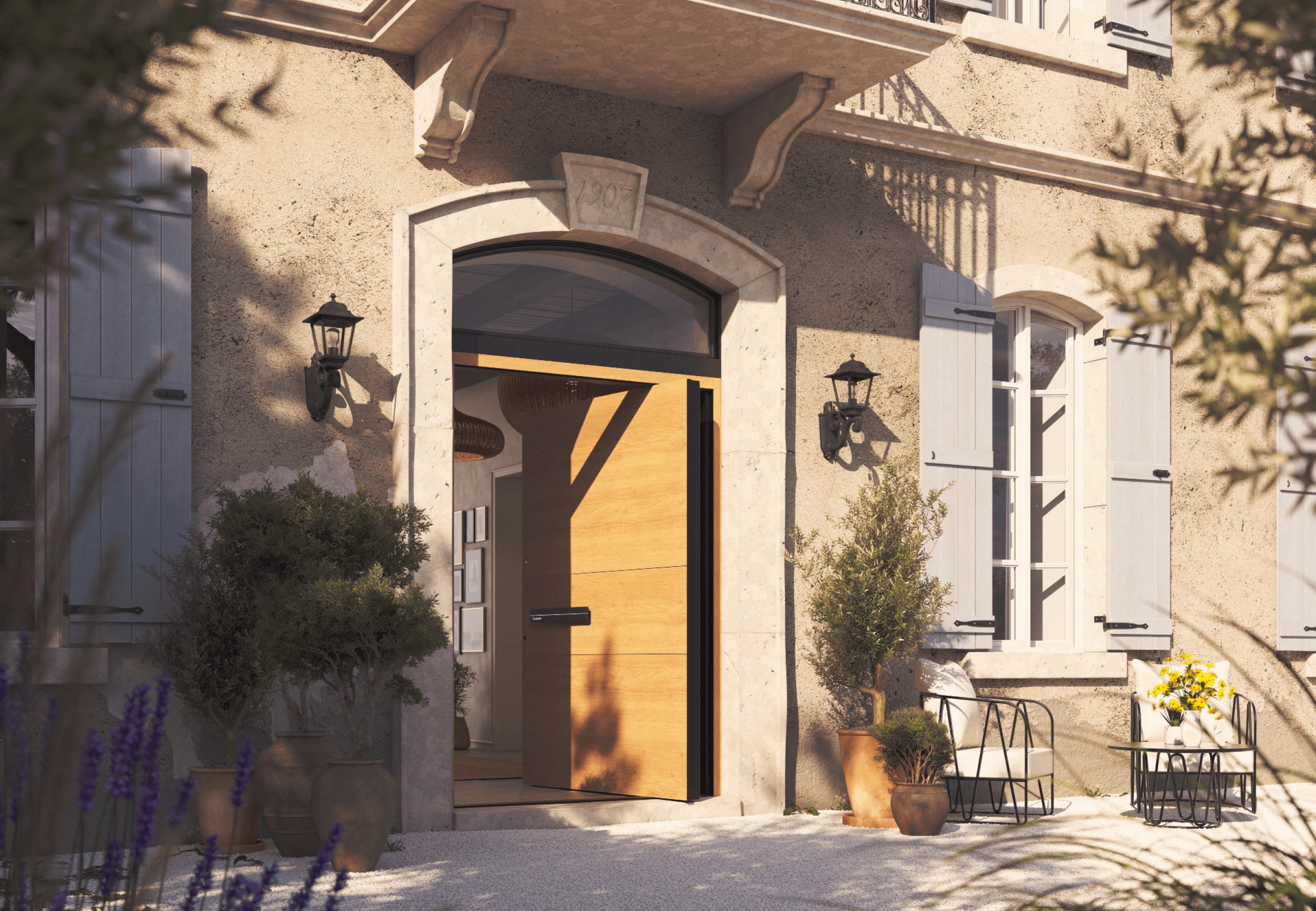

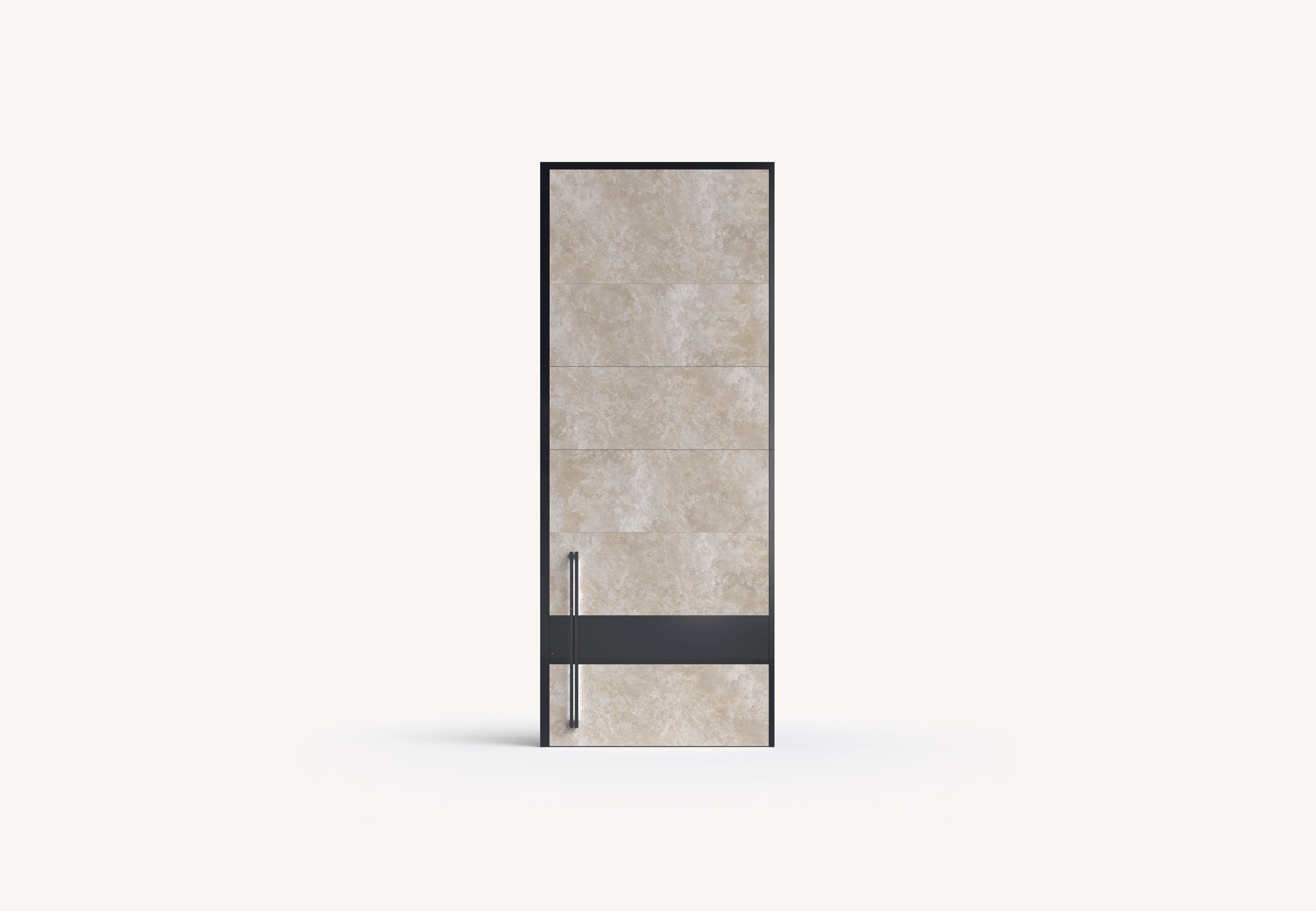

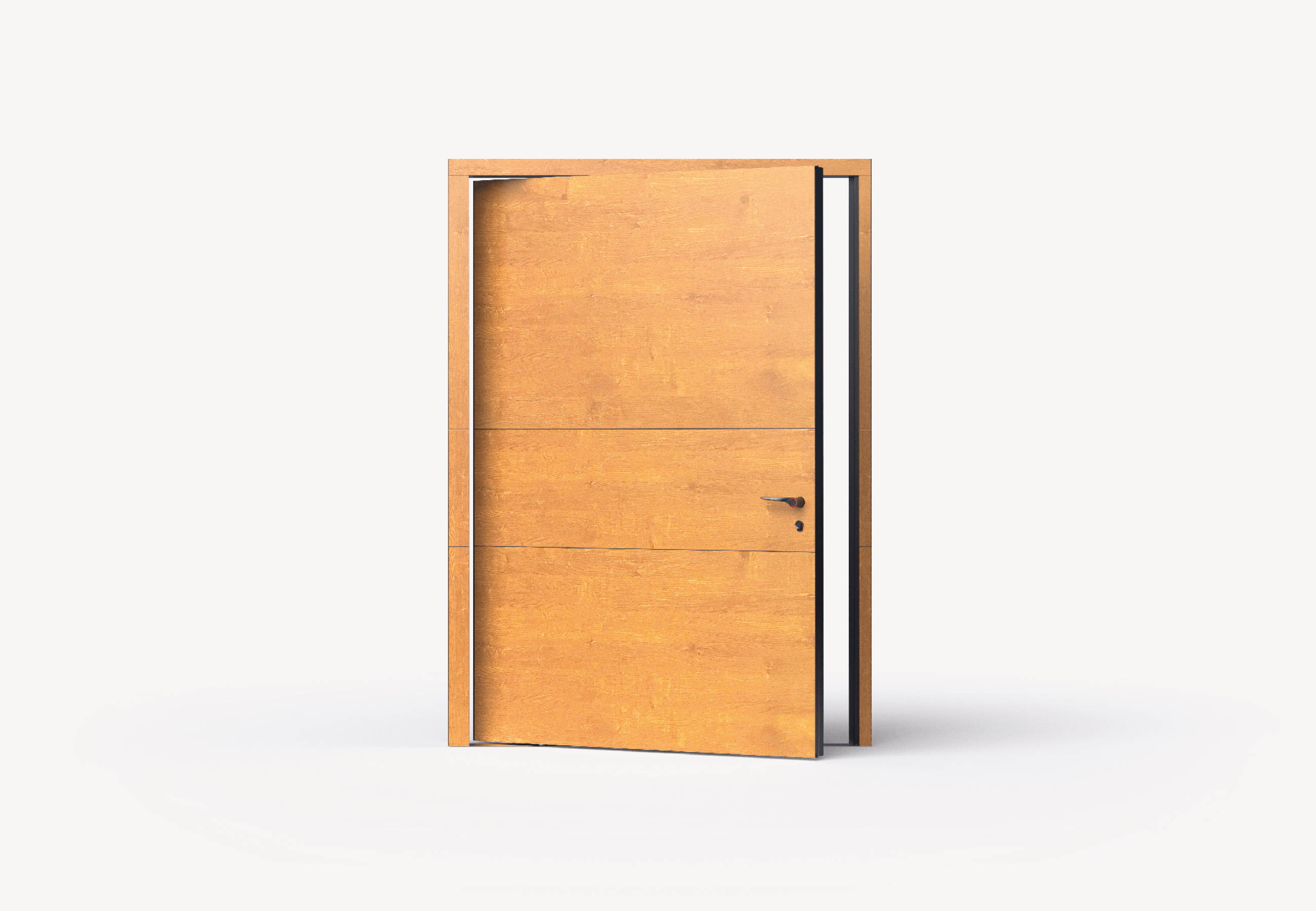

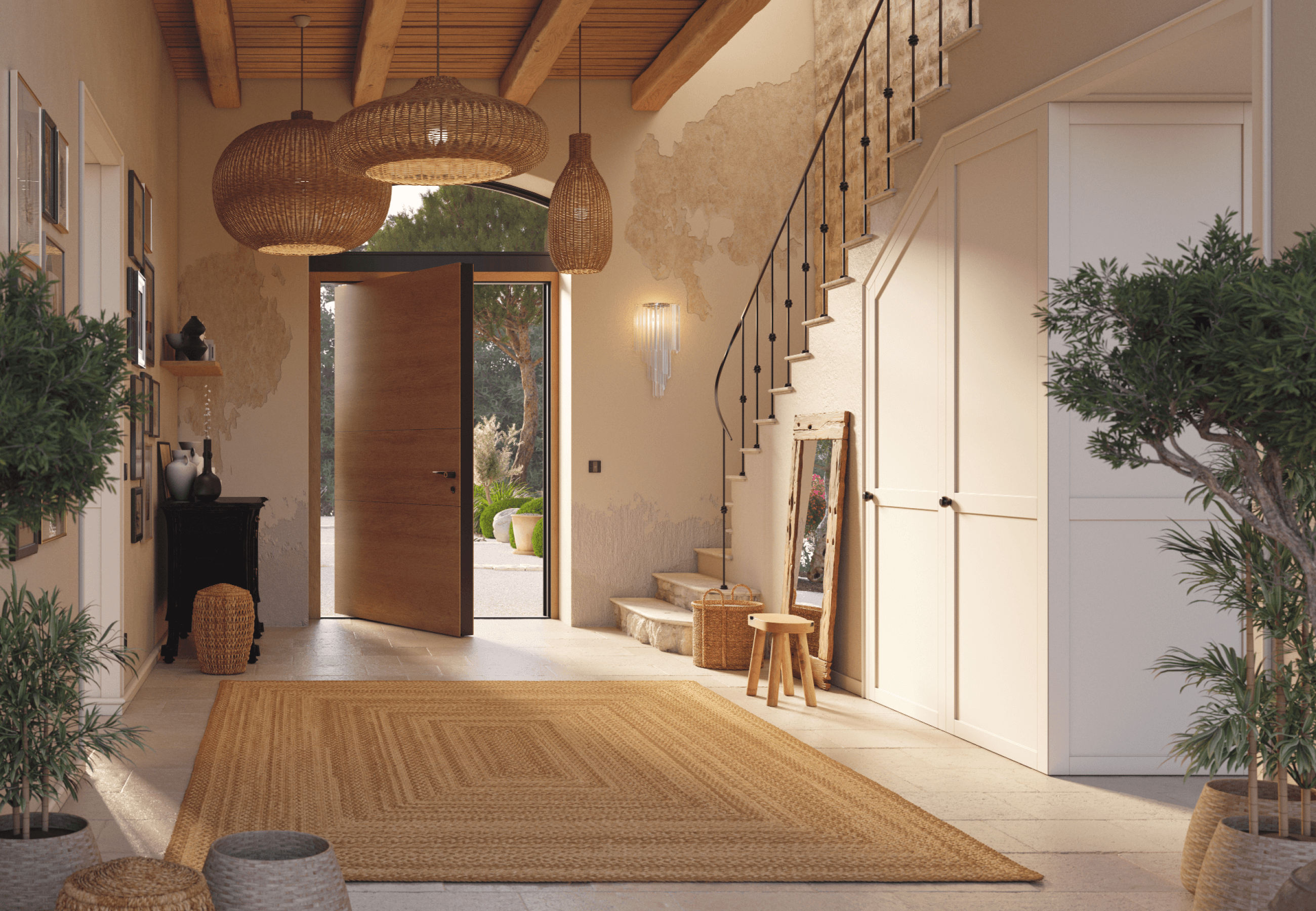

- P_05

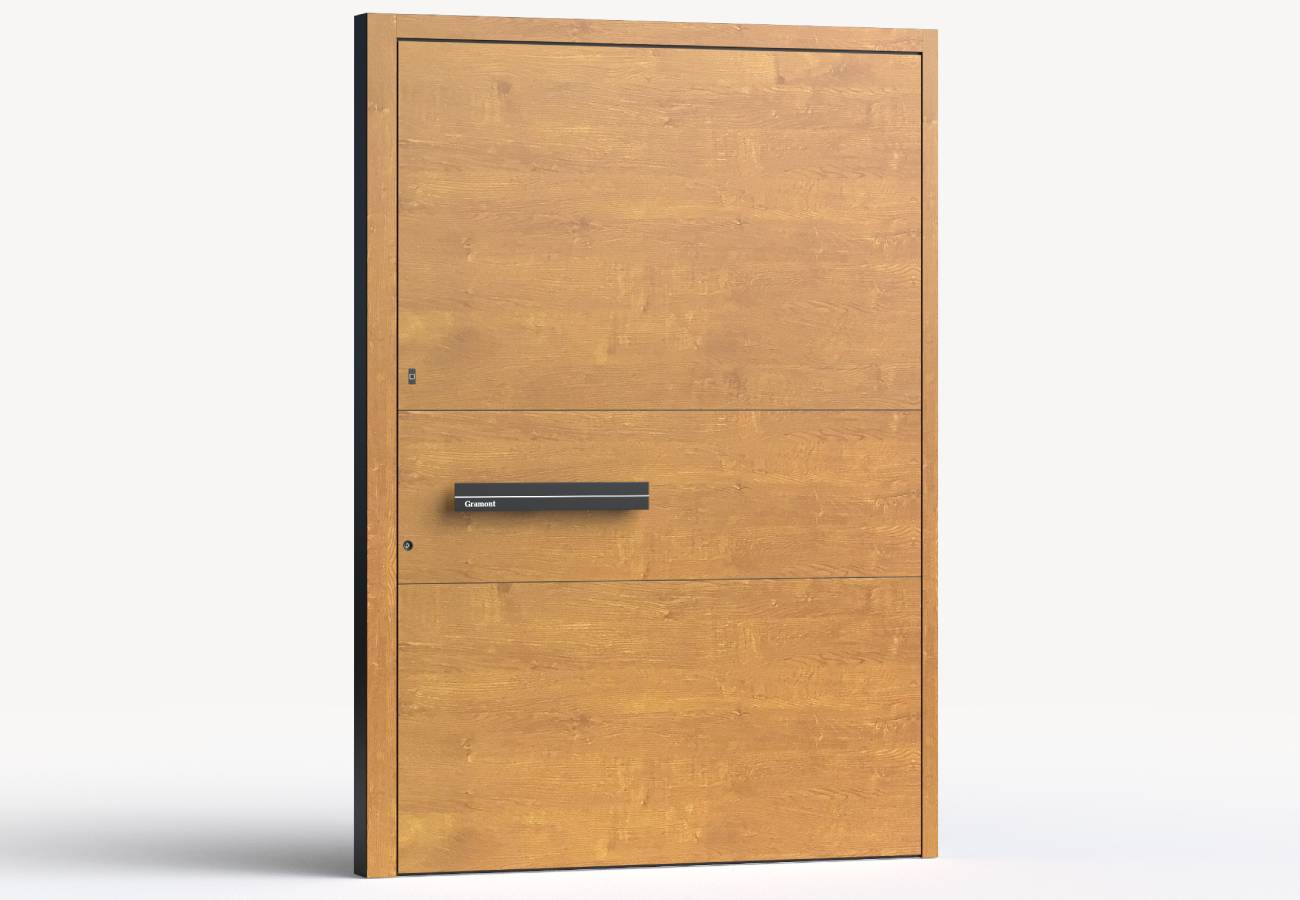

This elegant pivot door features durable aluminium enhanced with a stunning wood imitation in Oiled Oak. Complemented by the sleek handle with SmartLux illumination and PVD coating Volcanic Shadow, it incorporates a SecuroSmart finger scanner and the Armo Comfort Electro locking system for superior security.

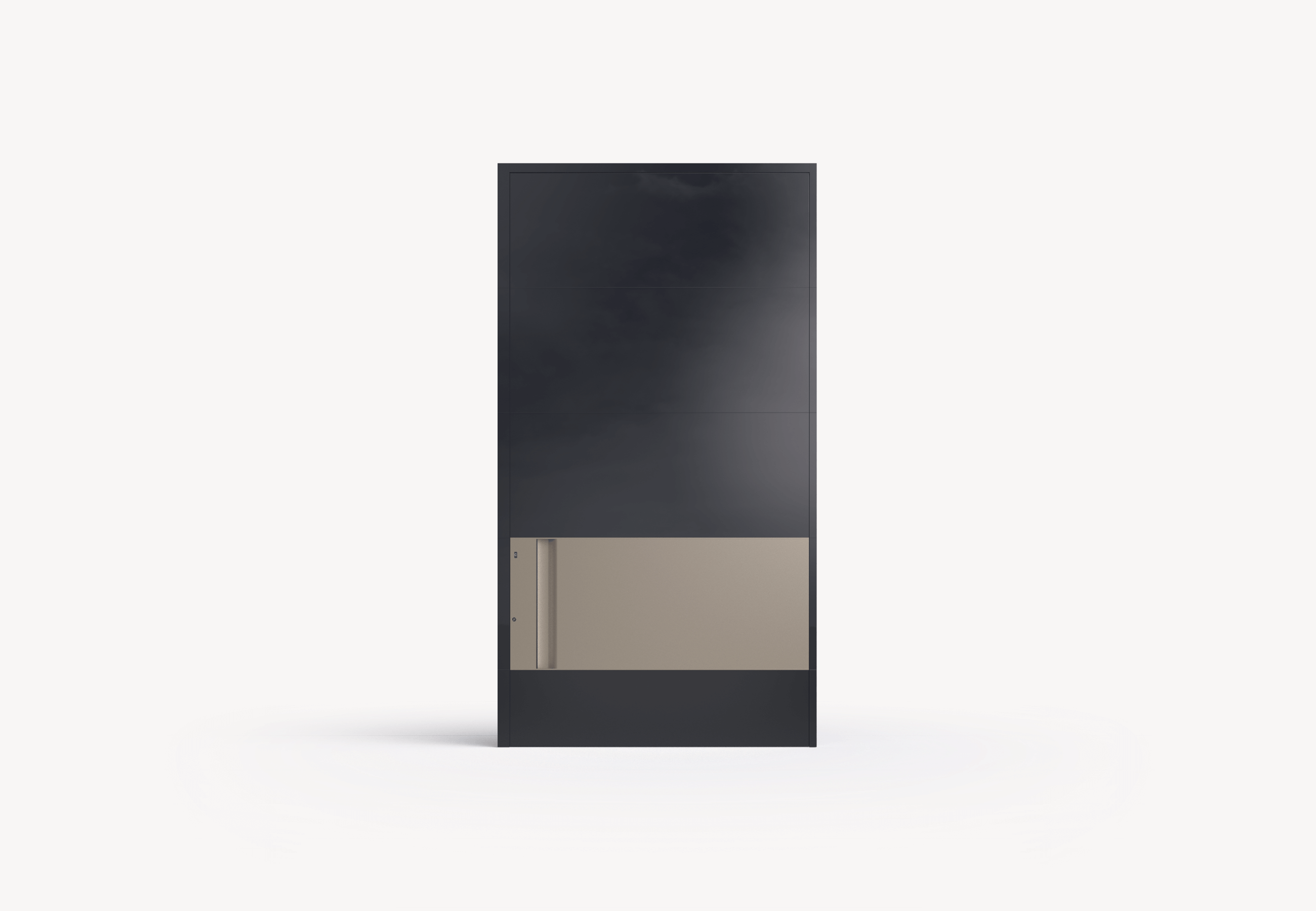

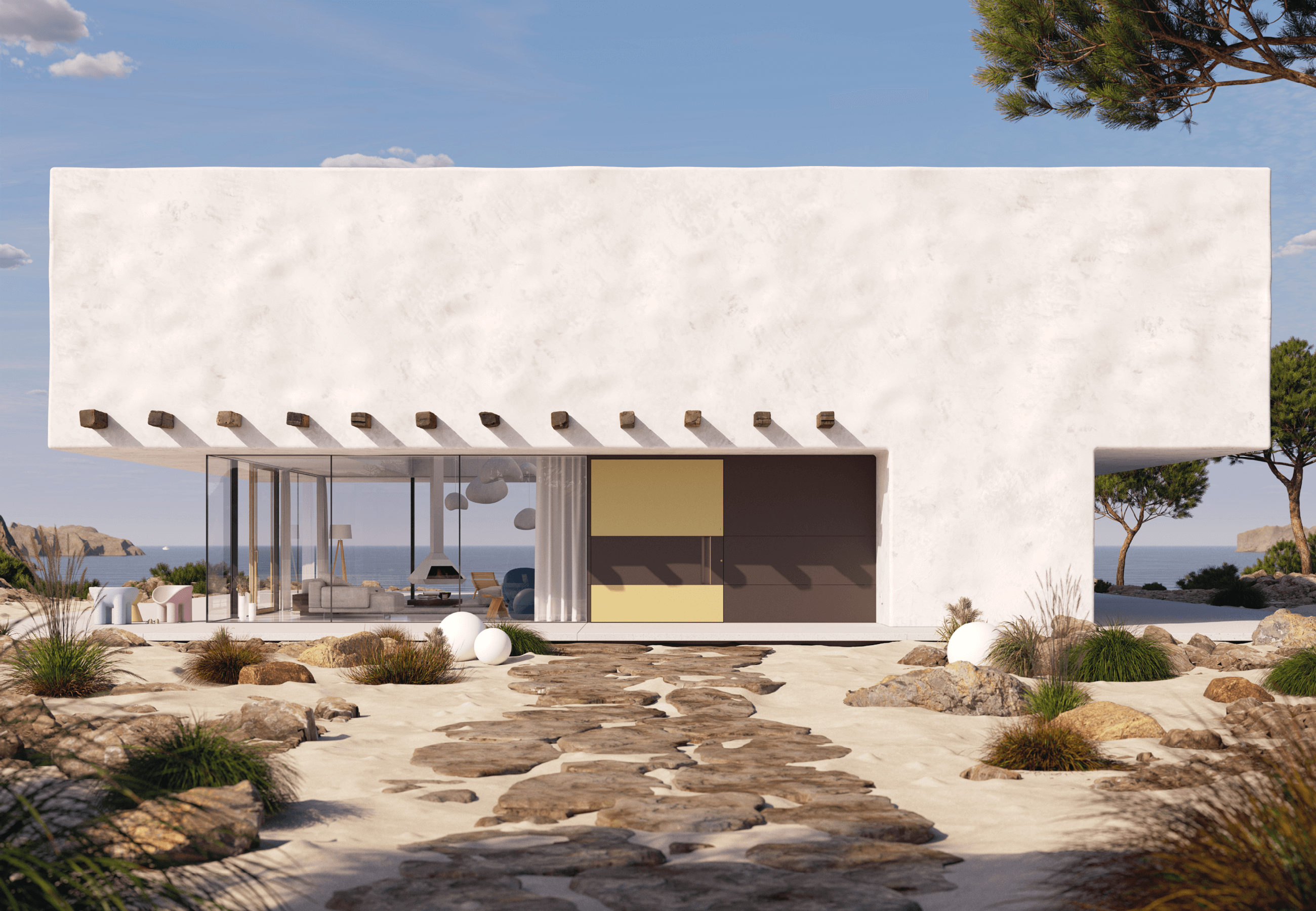

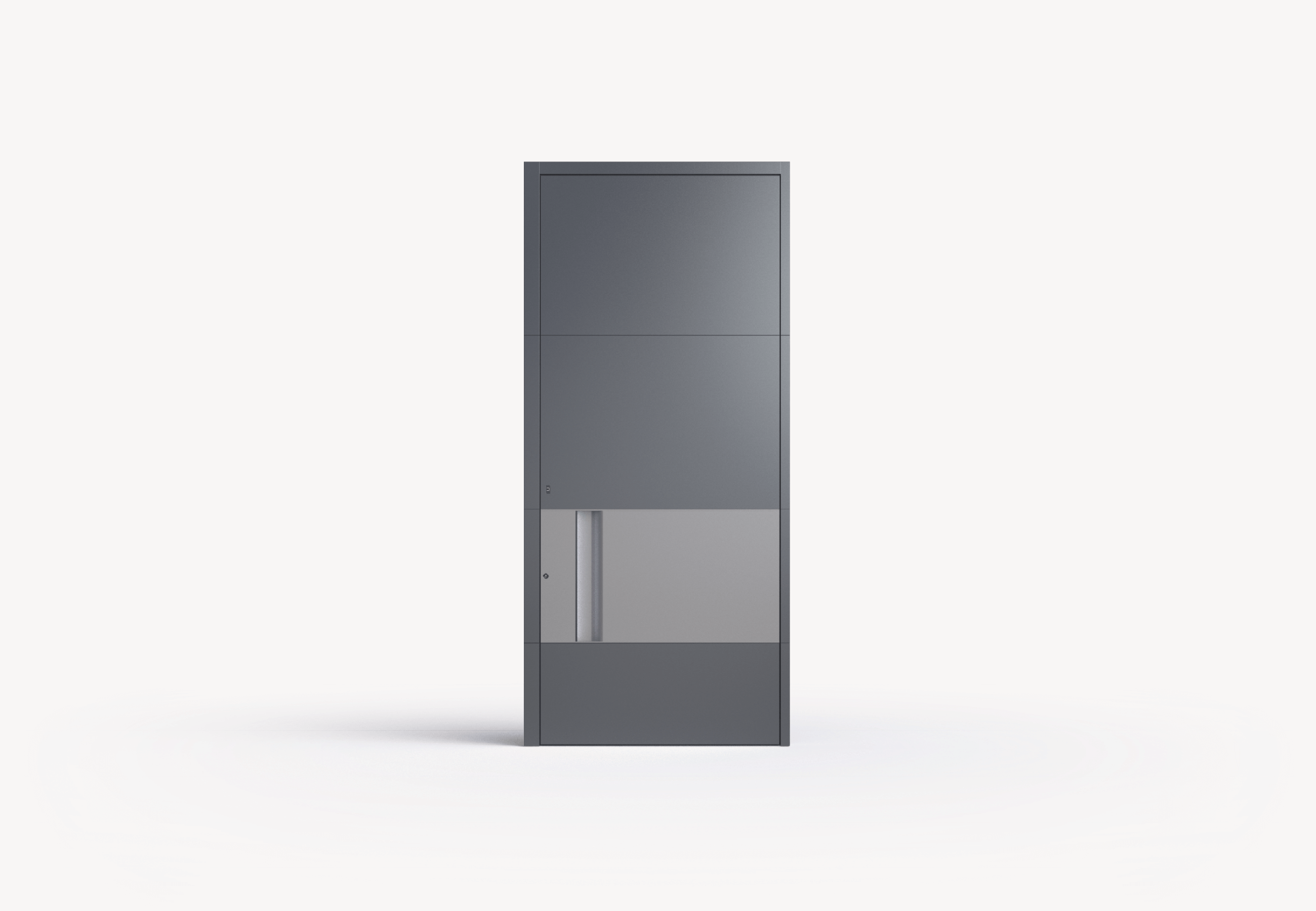

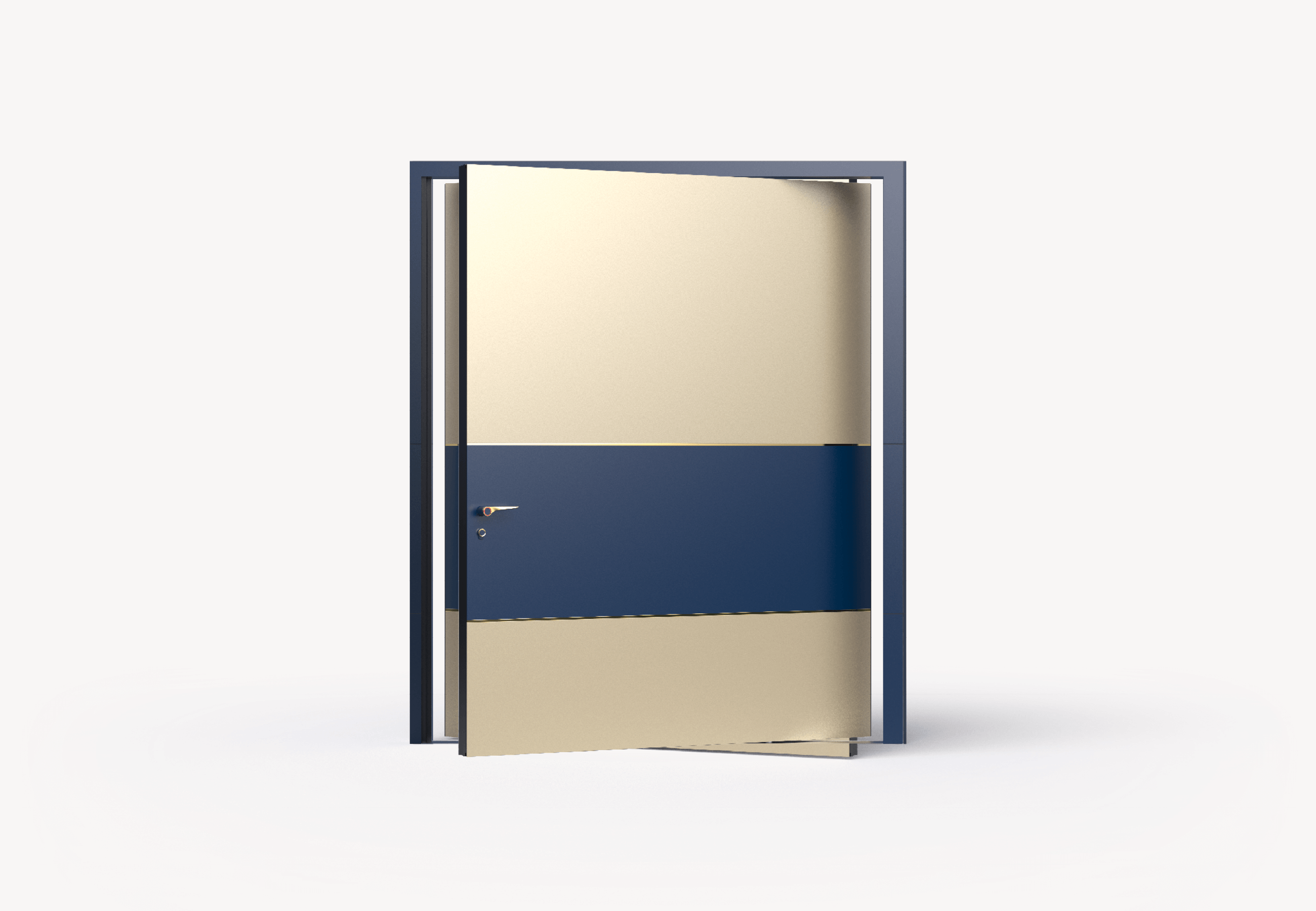

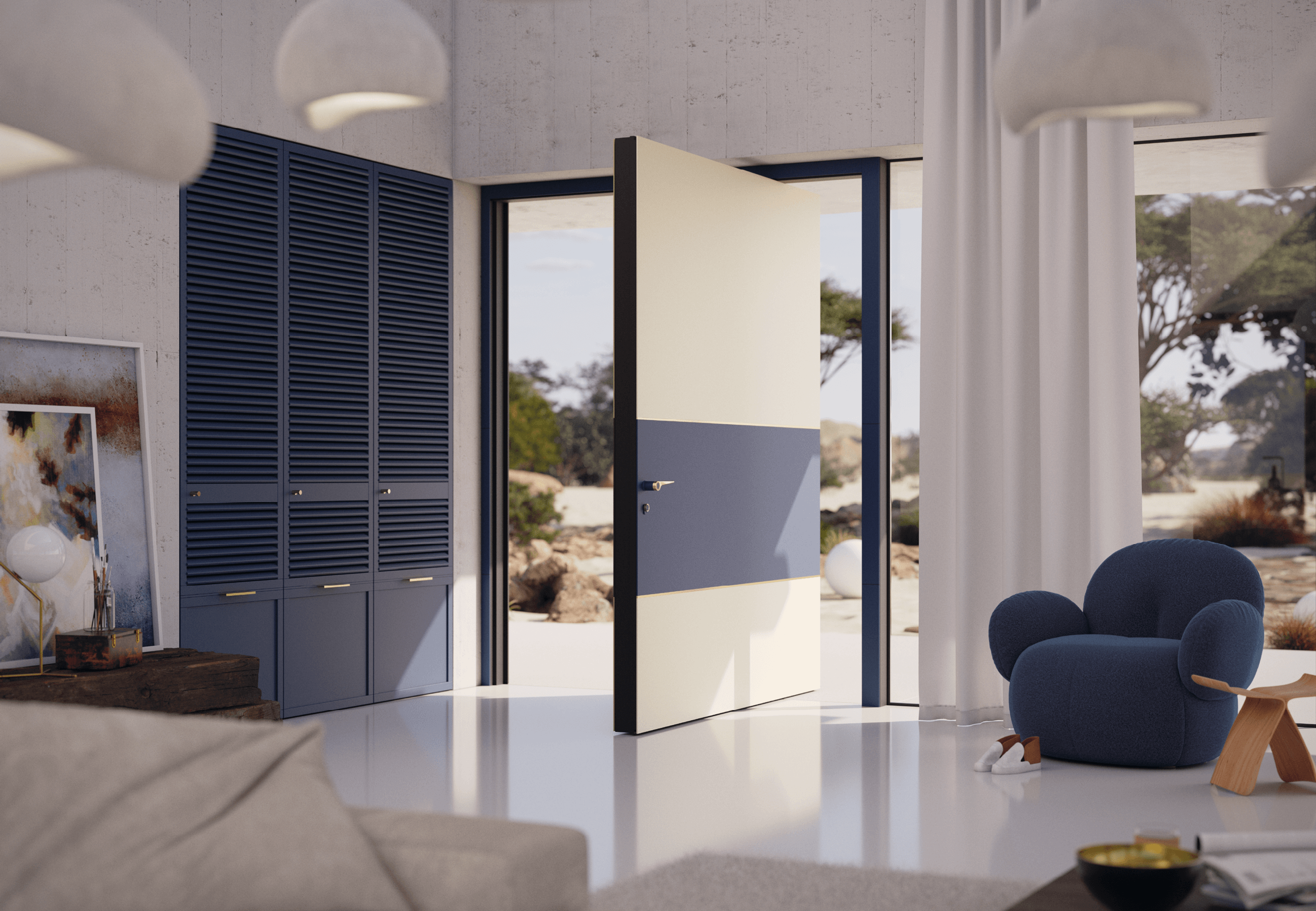

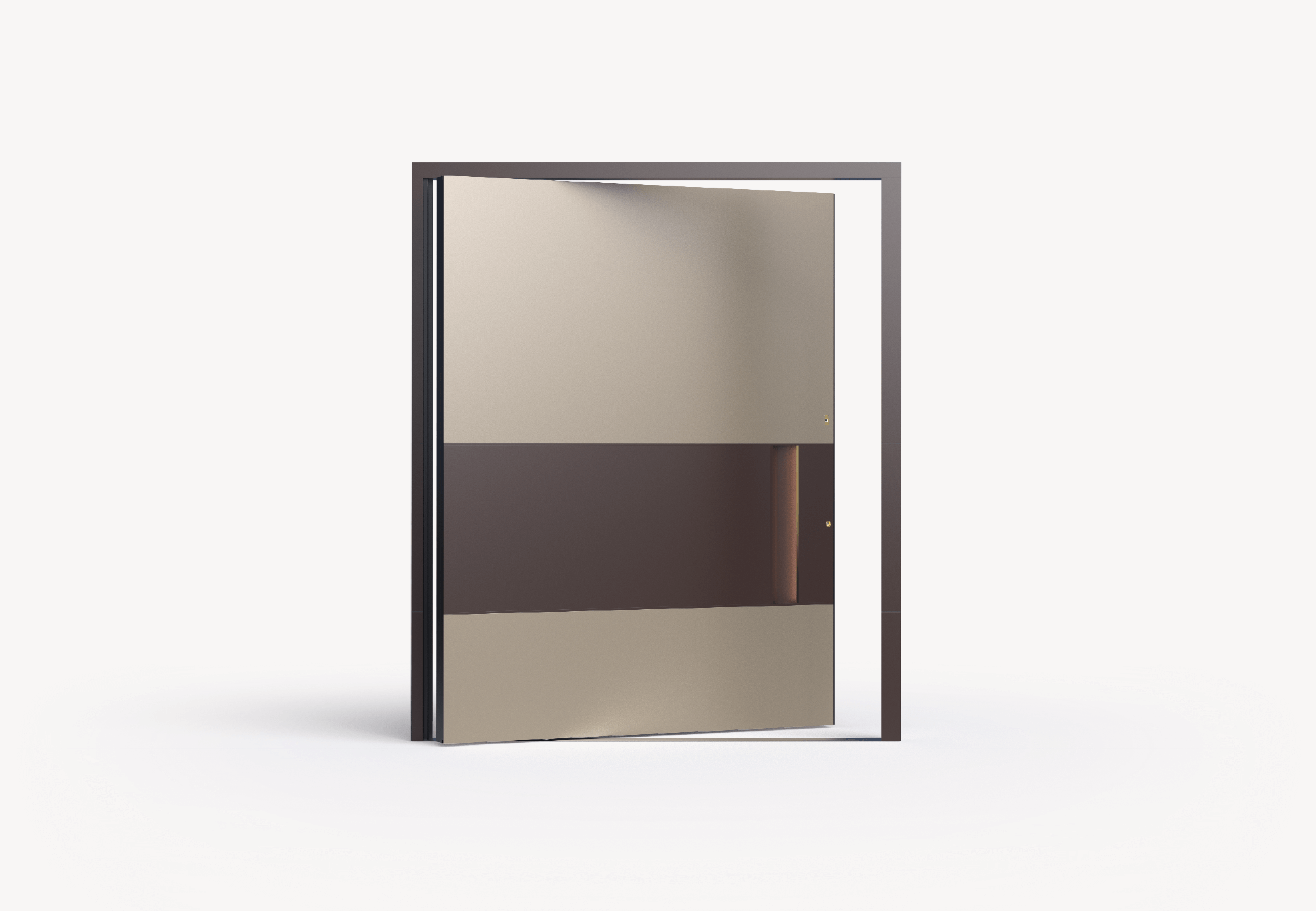

- P_06
This sophisticated pivot door is crafted from robust aluminium, featuring a luxurious PVD coating Golden Honey. It includes a recessed handle with SmartLux illumination and a SecuroSmart finger scanner paired with the Armo Comfort Electro locking system for enhanced security.
- P_07
This striking pivot door is constructed from sturdy aluminium, featuring a luxurious PVD coating Golden Honey. It is elegantly accented by decorative tempered glass in Night Sky Gloss and equipped with the Angle Altum handle. The SecuroSmart finger scanner, combined with the Armo Comfort Electro locking system, ensures robust security.
Unrivaled design and cutting-edge technology in every pivot door
-

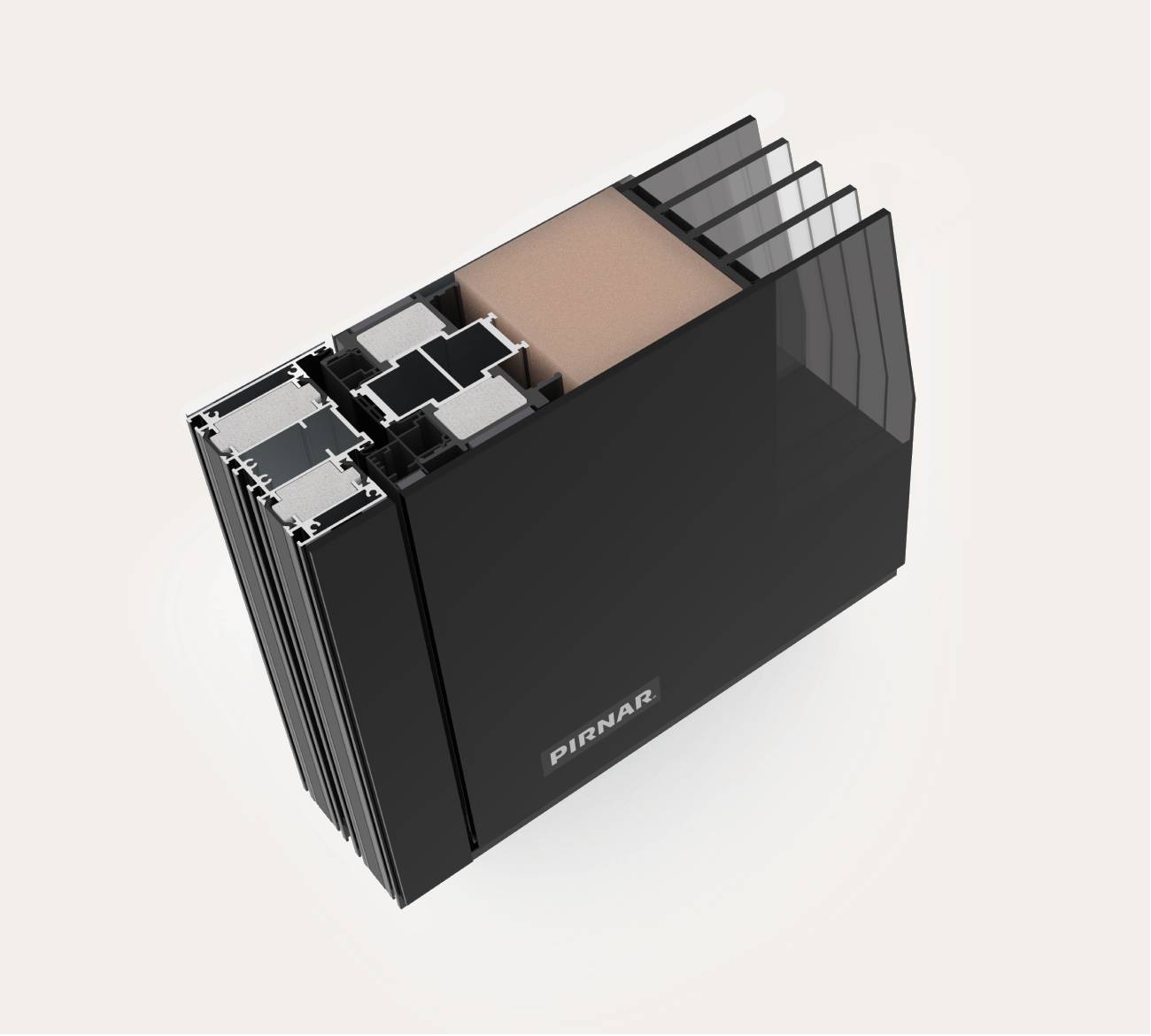

CONSTRUCTIONThe Pivot line is built on the only patented carbon construction for pivot doors, CarbonCore. Carbon fibre is extremely light, rigid and several times stronger than steel. The CarbonCore pivot profile significantly minimises door warping, providing exceptional strength, stability and therefore outstanding performance in all climates and environments.
*Door-frame thickness: 129 mm *Door-leaf thickness: 129 mm Thermal glazing: 5-layer tempered *Applies to the basic model, featuring a 2.5 mm exterior and 4 mm interior overlay thickness. The maximum total thickness is 135 mm (with 6 mm overlays on both the exterior and interior sides).
-

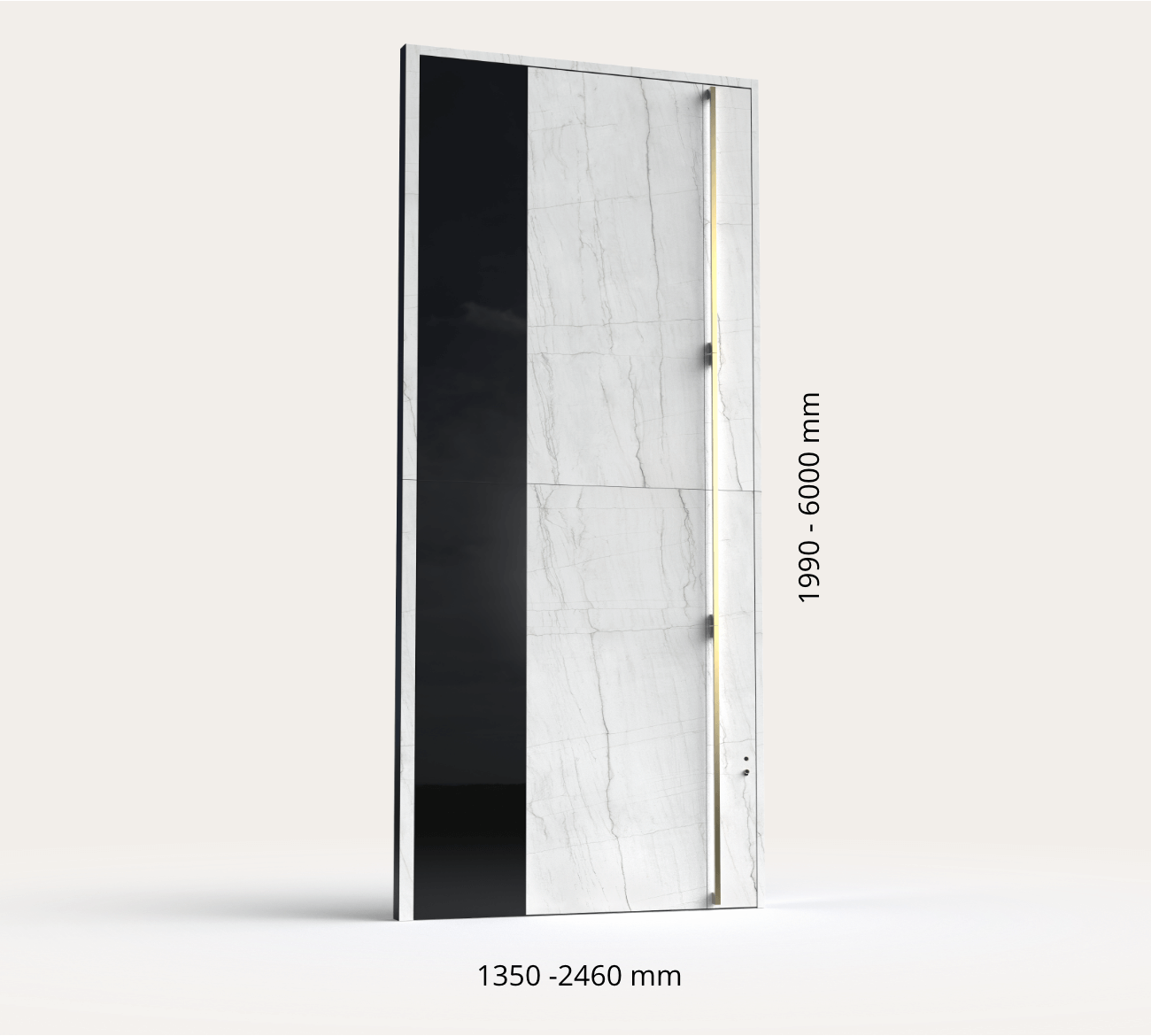

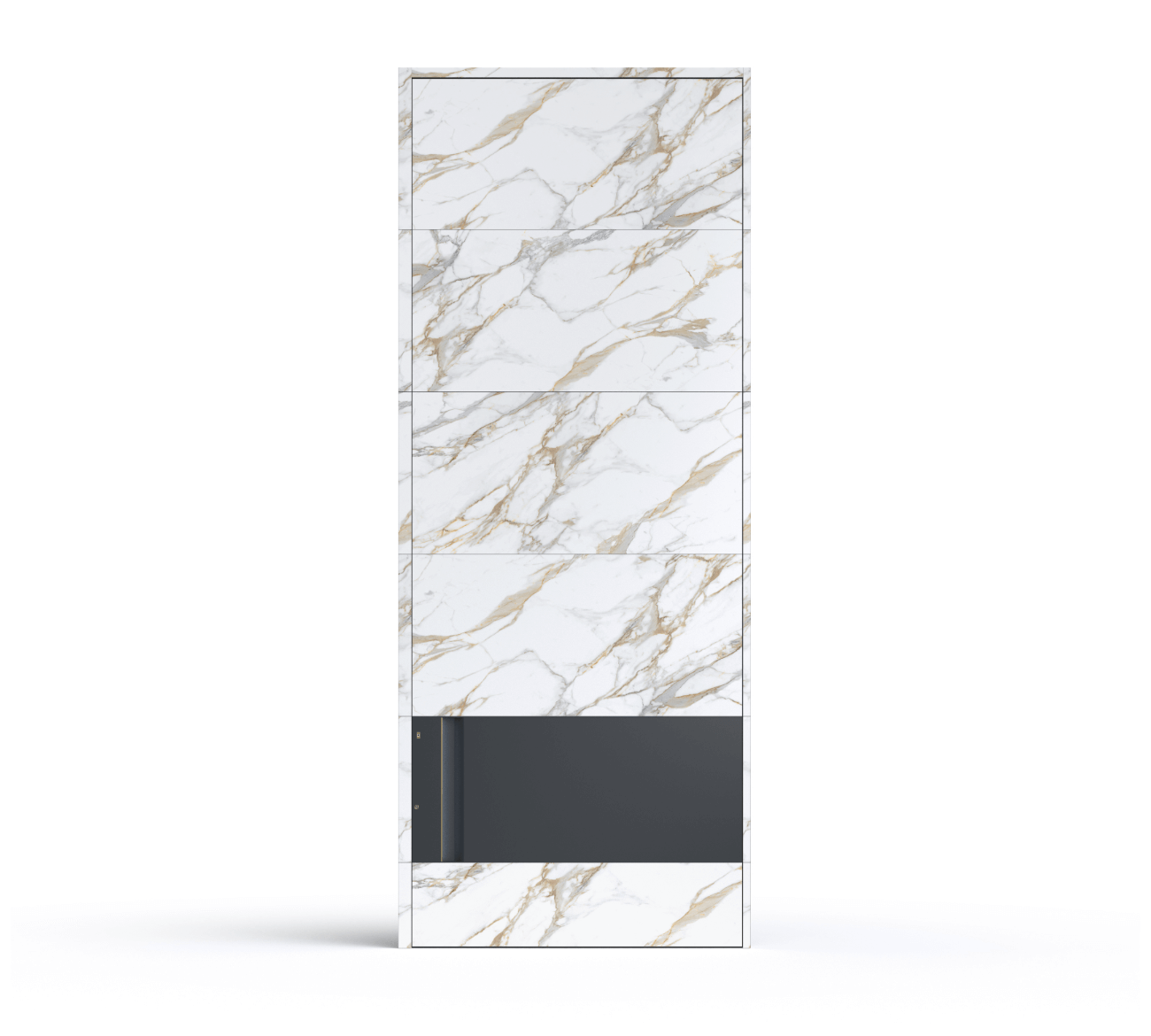

DIMENSIONSBoasting extraordinary dimensions, Pirnar pivot doors span widths from 1350 mm to an astonishing 2400 mm and heights from 1990 mm to an impressive 6000 mm making it suitable for any architectural style, climate and environment.
-

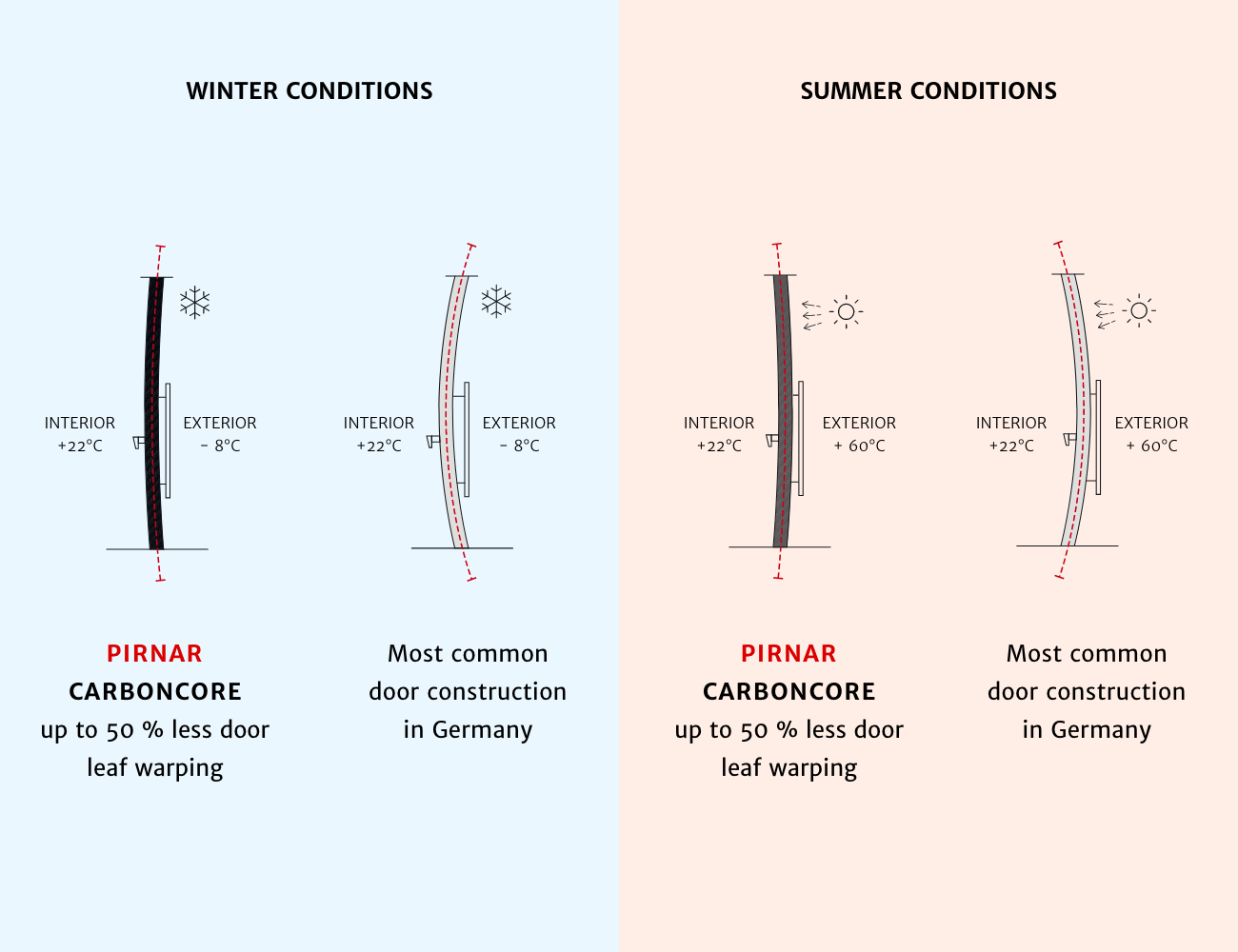

BIMETAL EFFECTOur unique CarbonCore construction ensures exceptional stability, even for doors with extraordinary dimensions. Laboratory tests confirm up to 50% less door leaf warping caused by temperature differences compared to conventional constructions. This makes Pirnar pivot doors the perfect choice for all climate conditions – from cold alpine regions to hot Mediterranean and desert environments.

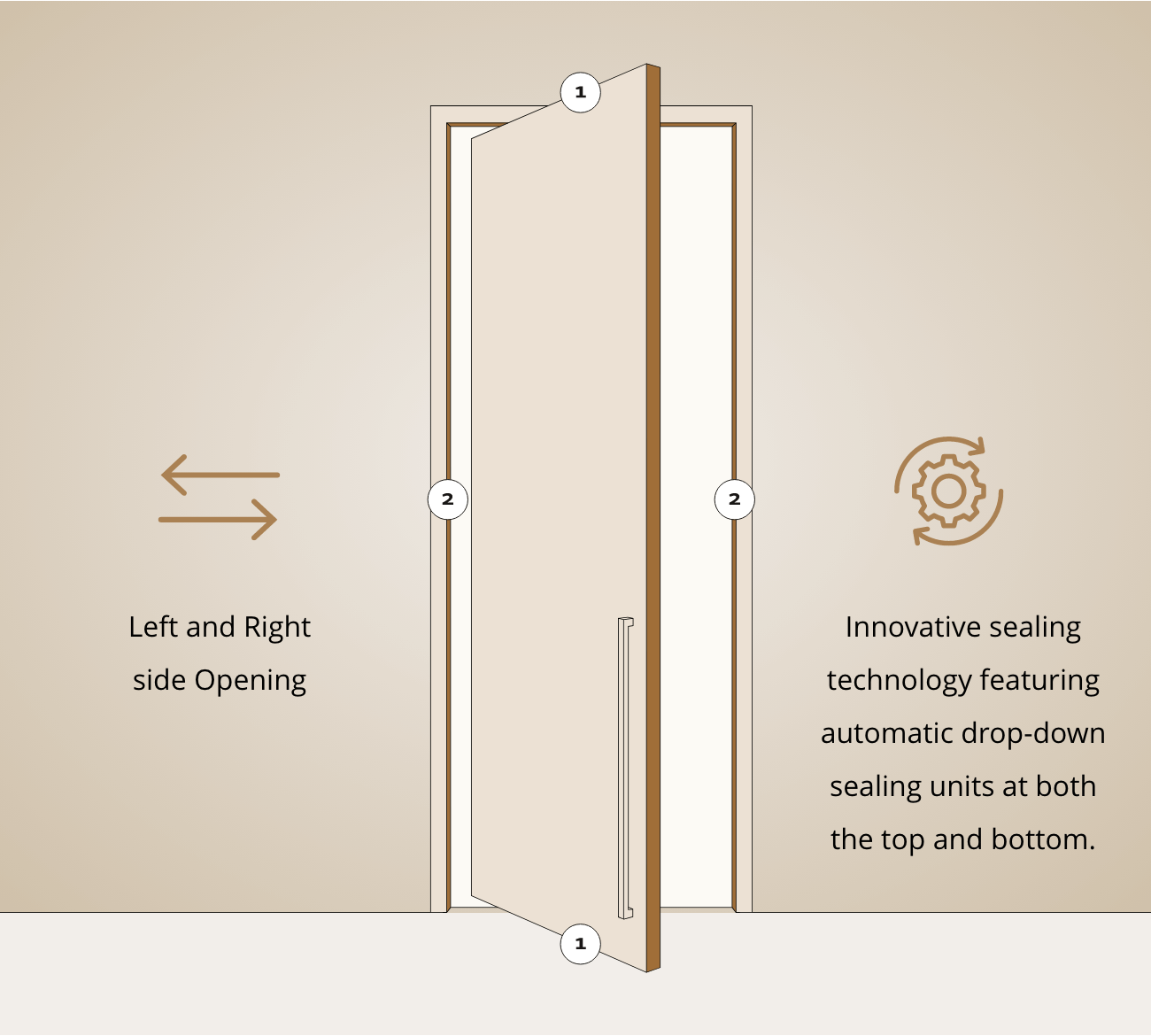

- SEALING & INSULATION

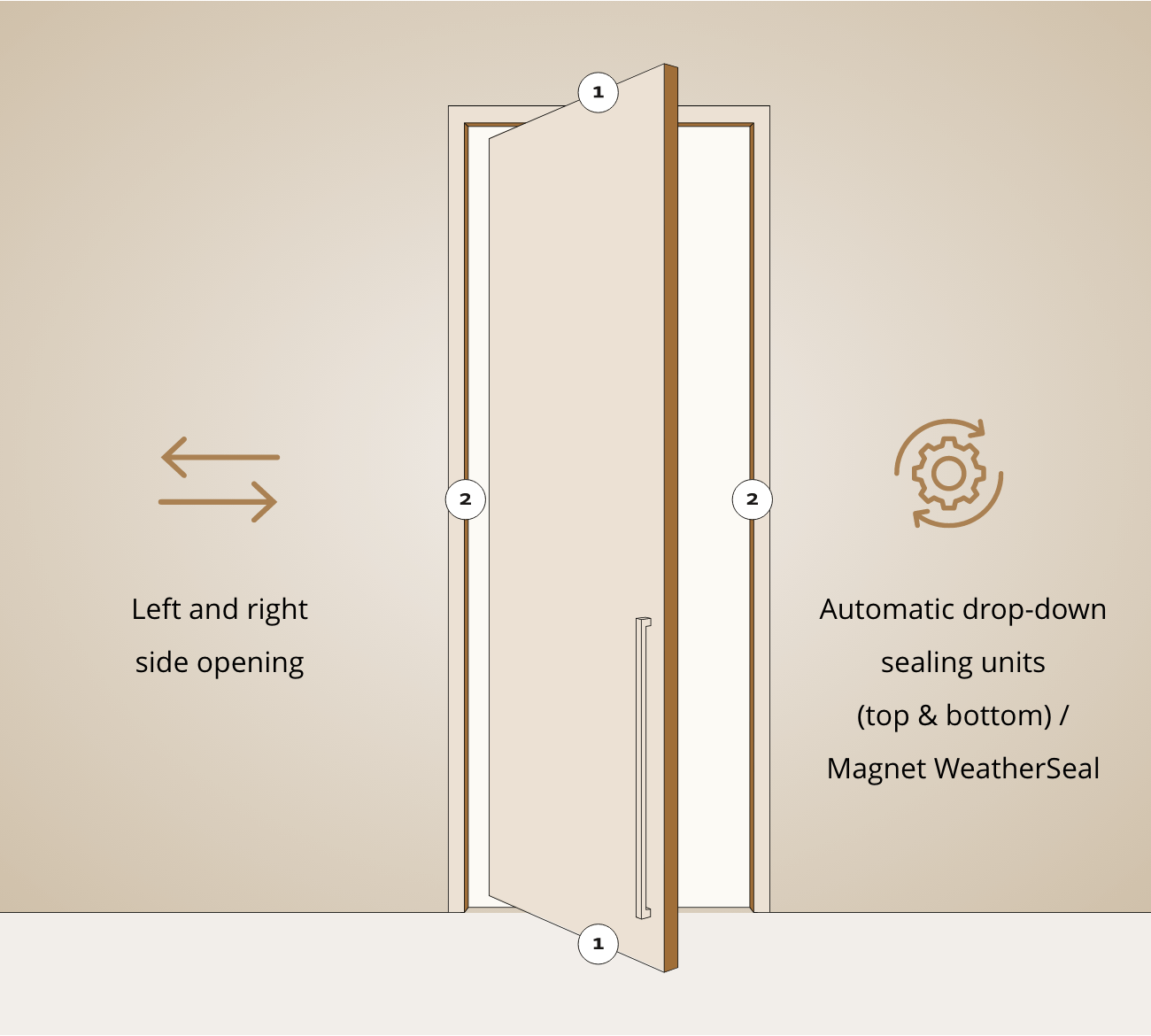

Pivot doors are designed with exceptional thermal and acoustic insulation, complemented by continuous sealing through two automatic lowering units located at the top and bottom. This effective sealing system renders the pivot door ideal for a variety of climates and environments.
UNIQUE SEALING PERFORMANCE VALUES*
Official IFT Rosenheim certificationWater tightness class: 9A Air tightness class: 4 Wind load resistance: C3 *Testing was conducted on pivot doors with a visible threshold up to a size of 2400 x 3150 mm.

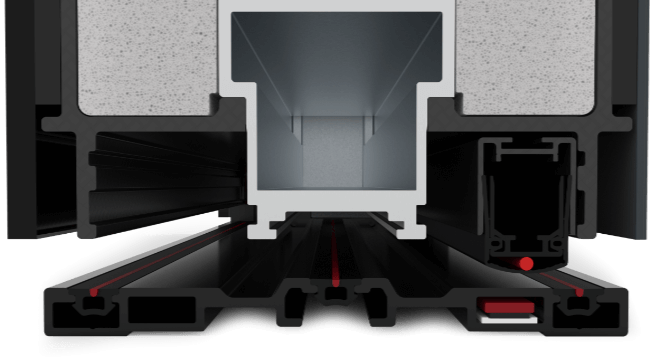

INNOVATION MAGNET WEATHERSEAL
- HINGES

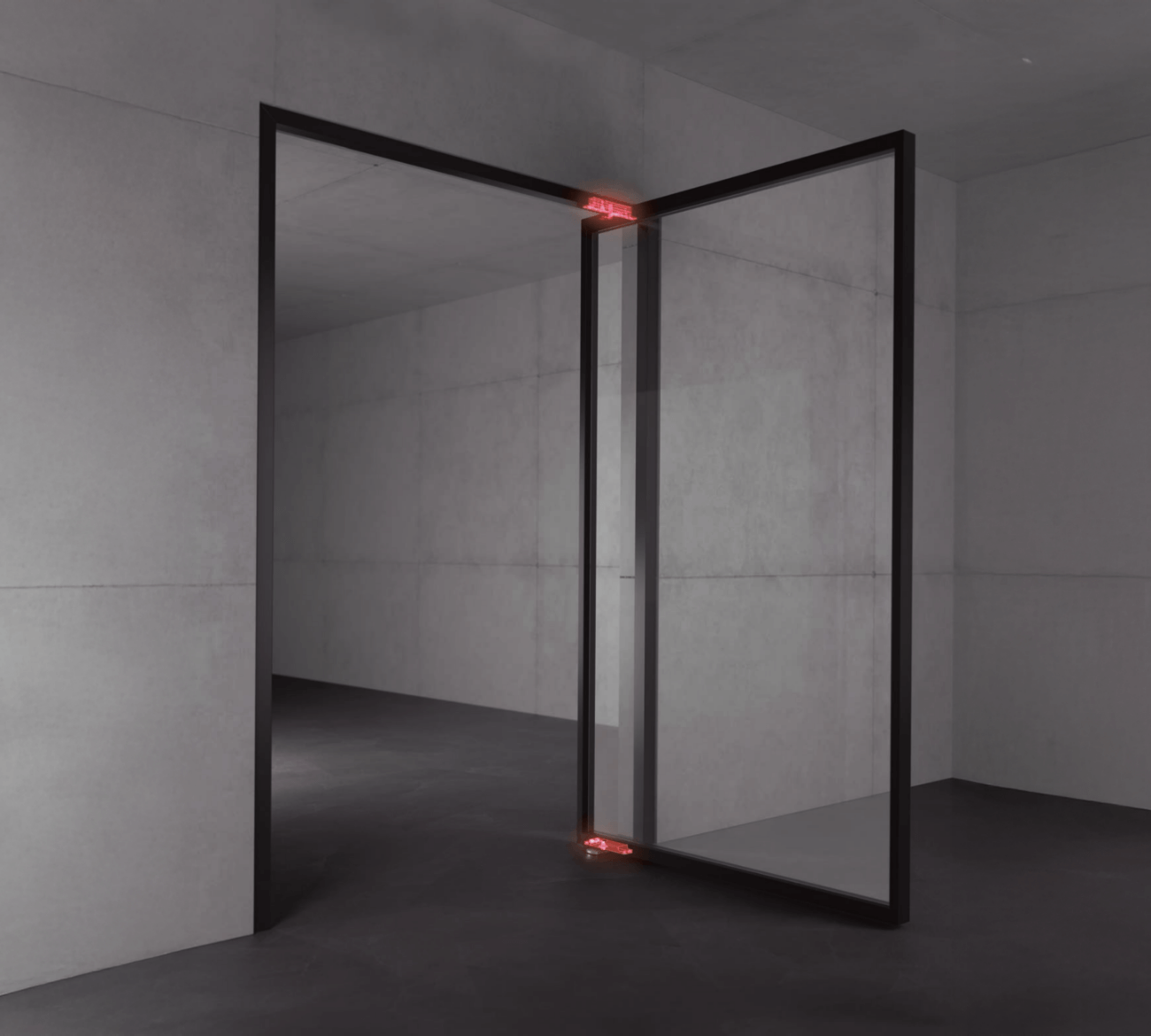

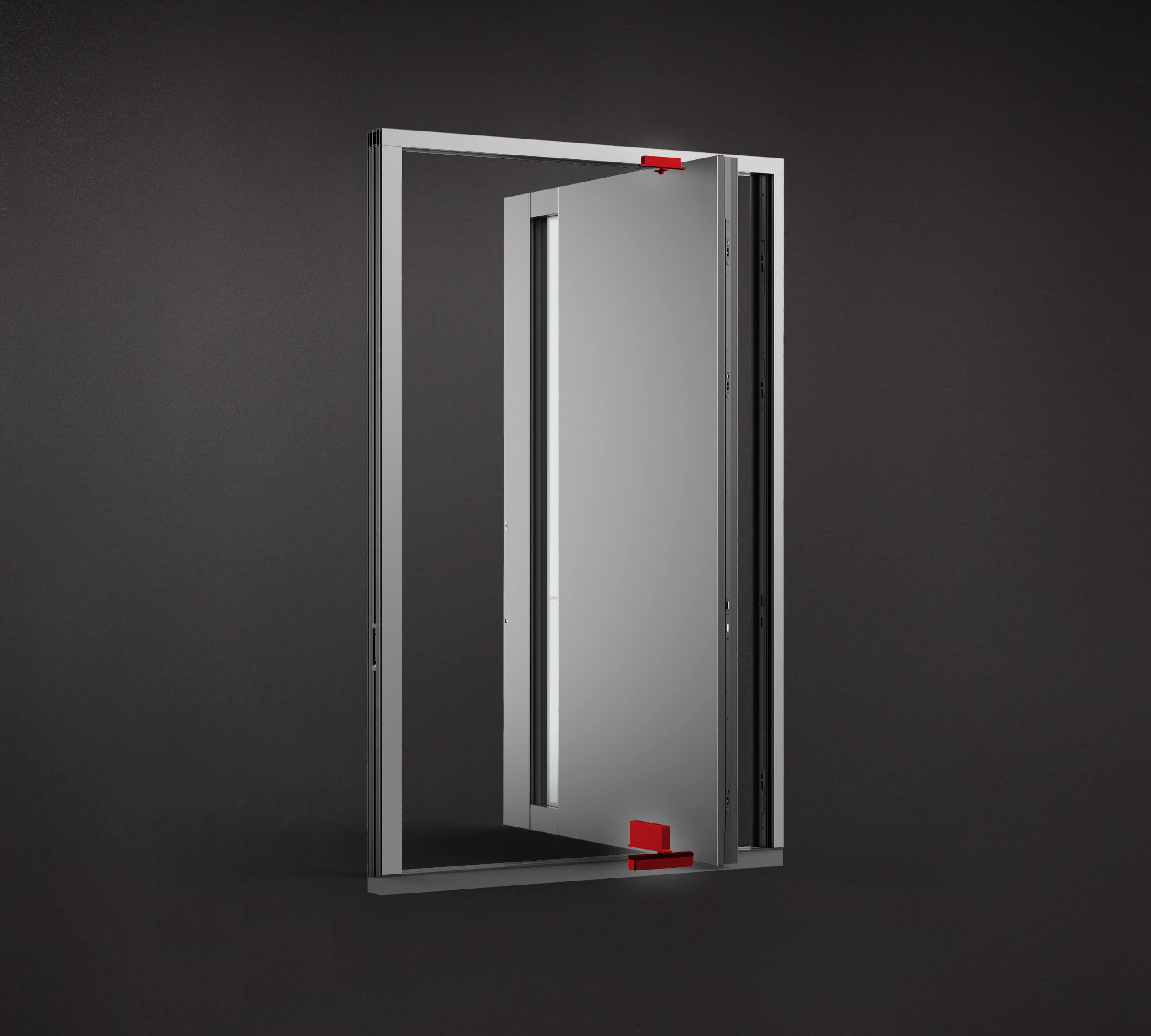

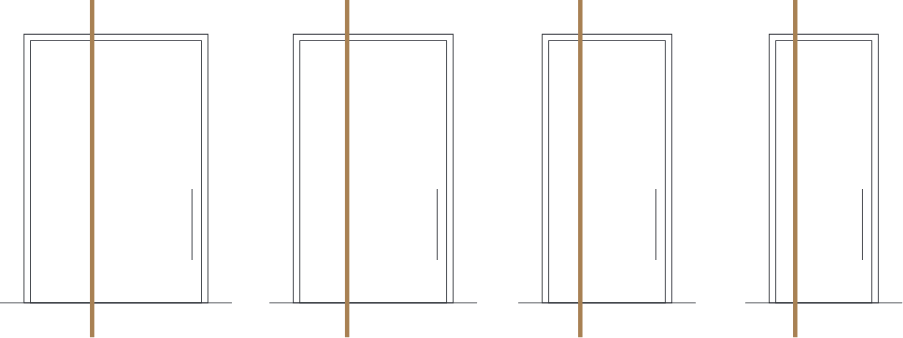

The robust concealed pivot hinges offer precise control over the movement and functionality of the pivot door. Engineered for high door leaf loads of up to 500 kg, they are distinguished by their remarkable strength and durability. These hinges feature an integrated self-closing mechanism, a 90° hold position, and adjustable speed, damper, and latch controls, alongside customizable up-down and left-right positions for the swing leaf.
-

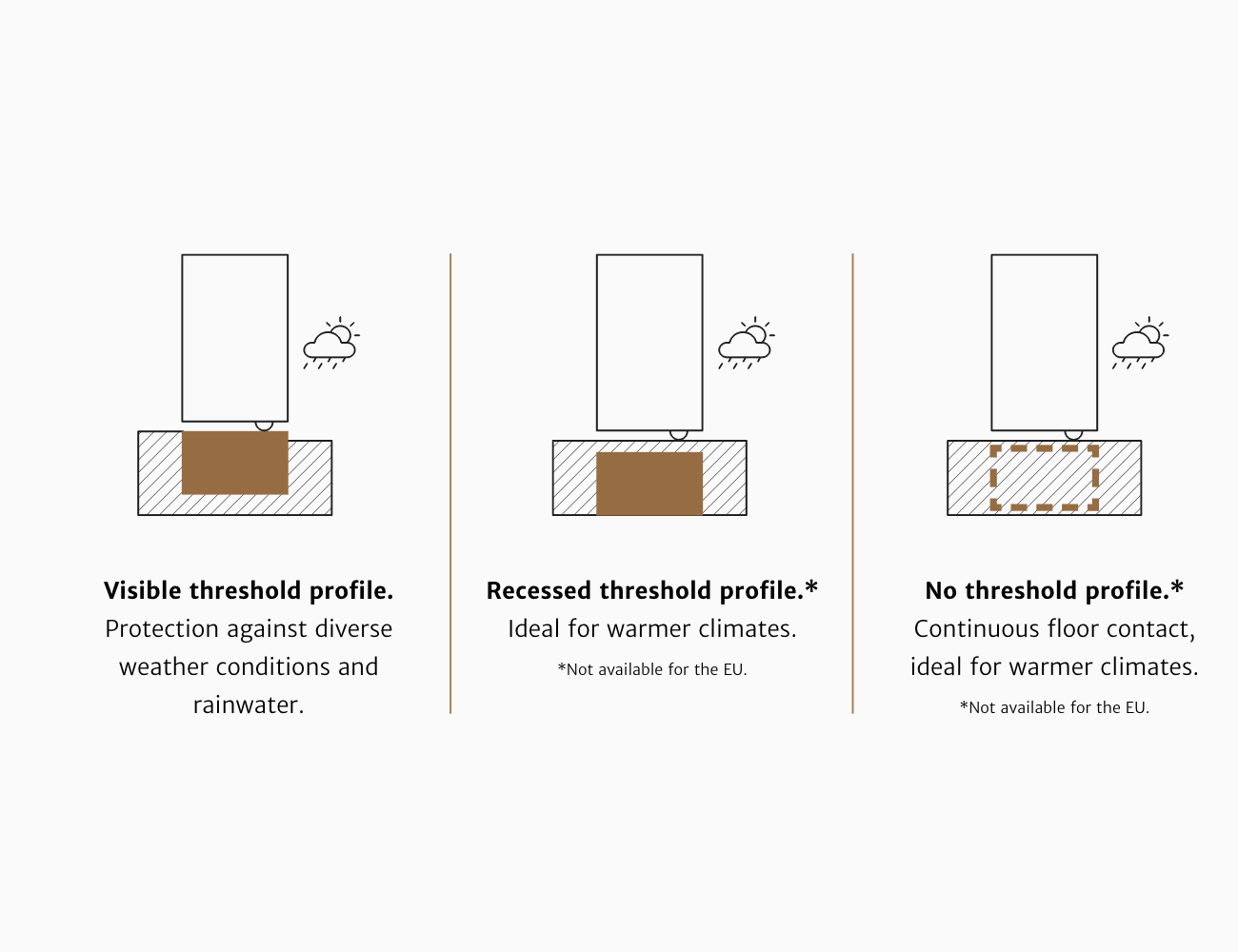

THRESHOLDSPirnar pivot doors offer various types of thresholds tailored to different climate conditions. A visible profile for more demanding climates ensures reliable protection against weather and rain, while in warmer regions, a recessed profile or a threshold-free design is ideal, allowing seamless floor contact and perfect aesthetic purity.

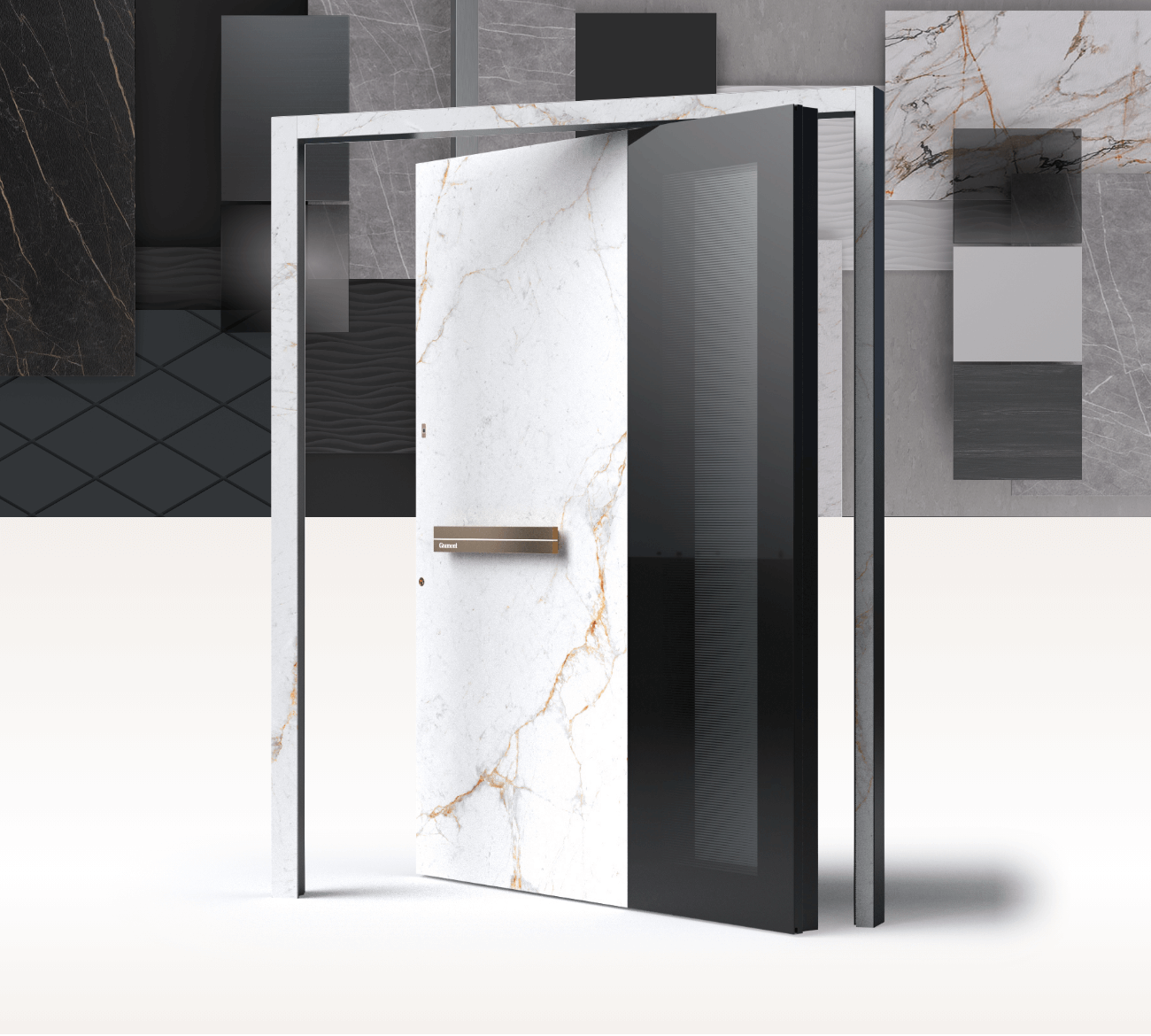

Unlimited personalization options
Pirnar Pivot offers an extraordinary canvas for personalization, featuring limitless customization options that bring the distinctive styles of homeowners to life. With an extensive selection of materials, finishes, coatings, and innovative accessories, these doors are perfectly suited to complement any architectural style while adapting to diverse climates and environments.
Exclusive handle Magnifica
The stunning, internationally awarded interior handle is made of precision-cast stainless steel, ensuring its solidity and robustness. The refined ergonomic shape, inspired by the elegance of Pegasus’ wing in flight, offers a light feeling of levity and a comfortable grip.
Luxurious surface PVD coatings
Inspired by the finest luxury jewelry and watches, handles, pulls, protective trims, or the enclosure of a fingerprint reader can be enhanced with a unique PVD coating. In the opulence of gold, bronze, black, and copper colours, or in stainless steel versionb, every detail on your entrance doors becomes a synonym for refined personal style and elegance. Pirnar’s PVD technology also features greater resistance to scratches, stains, and wear, longer-lasting color durability, and an extended product lifespan.
Materials & Colours
Pirnar pivot doors offer a wide selection of premium materials such as sintered stone, colors, wood decors, and concrete and Corten steel imitations, enabling virtually unlimited design possibilities for the most demanding homeowners.
Elegant SmartLux Illumination

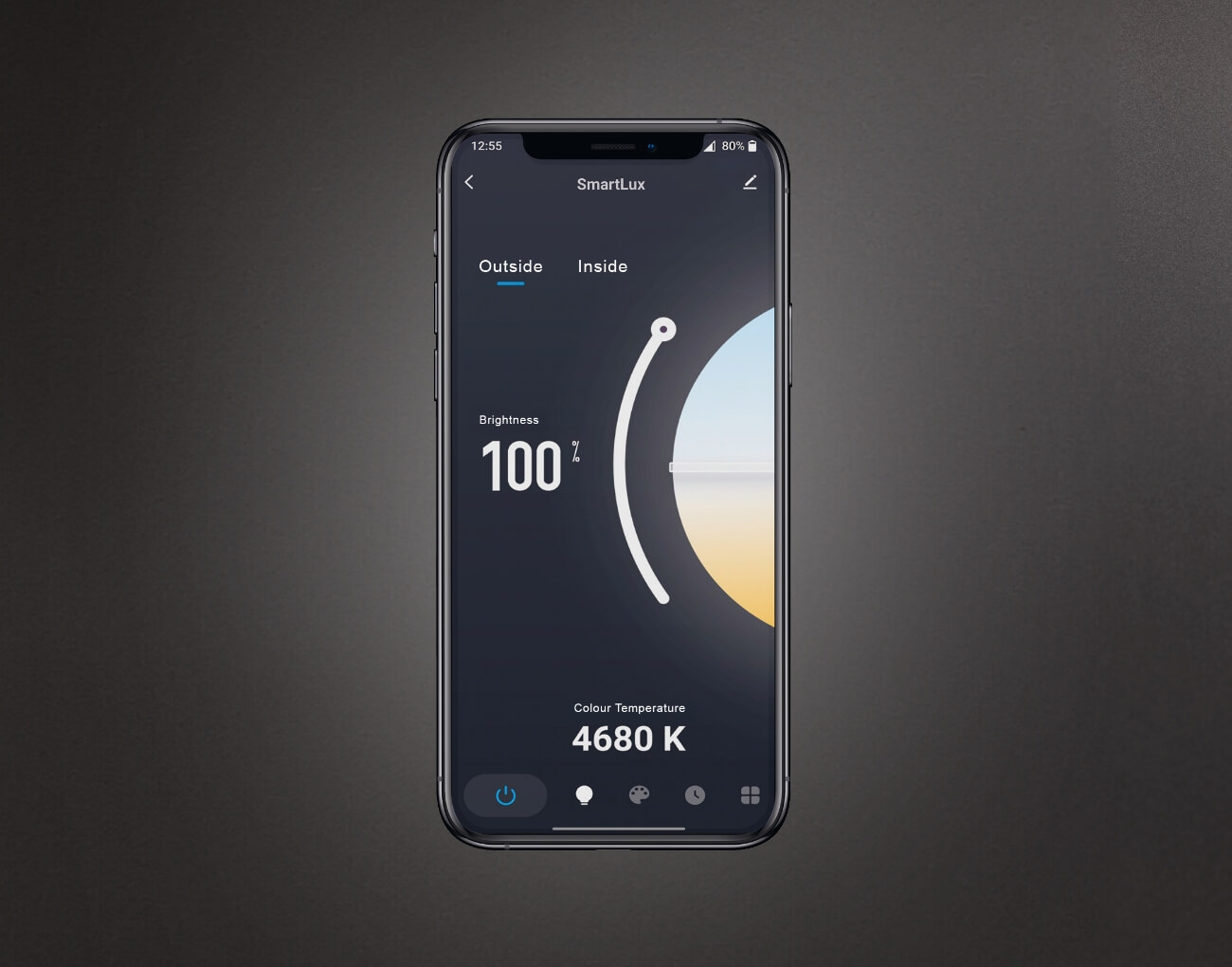

Pirnar’s solutions for creating a comfortable atmosphere facilitate the management of lighting for Pivot entrance doors at pull handles, lever handles or nameplate and is available only as a package. With the SmartLux system in the Pirnar mobile app, you can adjust the intensity, temperature, and timing of the lighting.

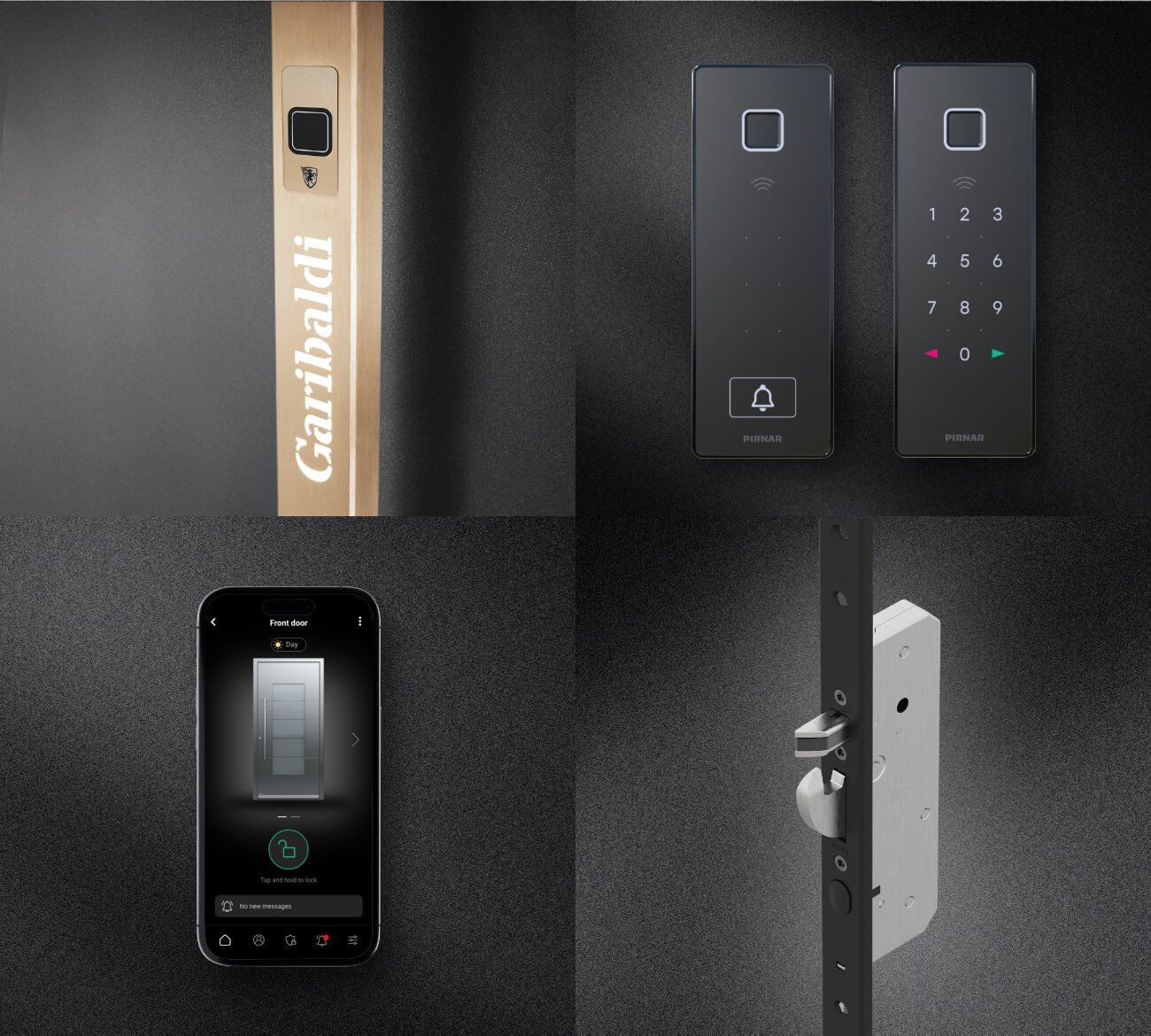

Complete security and comfort

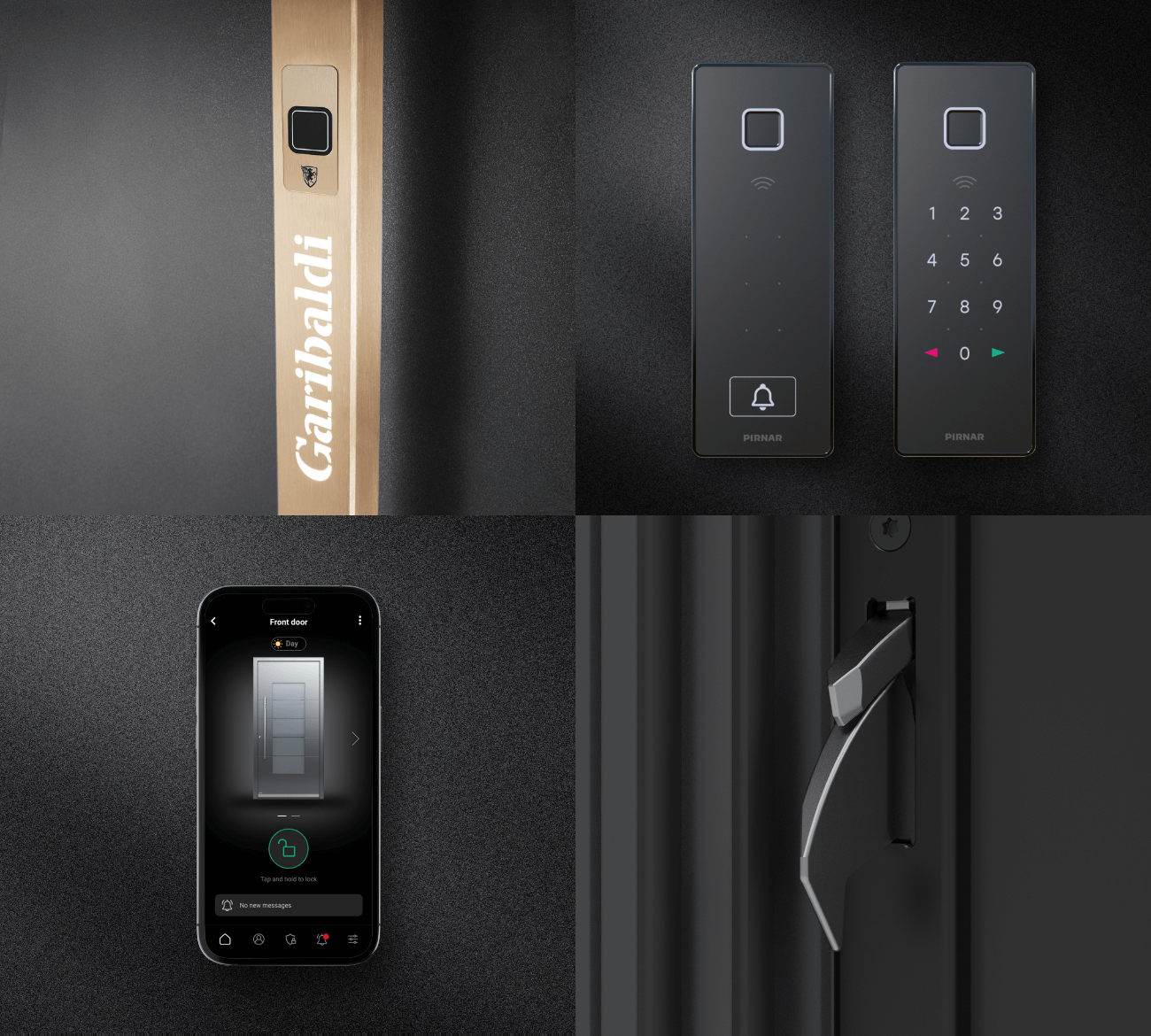

Pirnar offers state-of-the-art solutions and the finest products for complete security and comfort. You can unlock the entrance doors using the smart SecuroSmart system or the SecuroSmart Keypad in the Pirnar mobile app, as well as with a finger scanner, card, PIN code, Google Assistant or Alexa. Combined with the premium locking system Omnilock or Armo Comfort Electro, you will ensure that your home is a fortress of safety and peace.
-

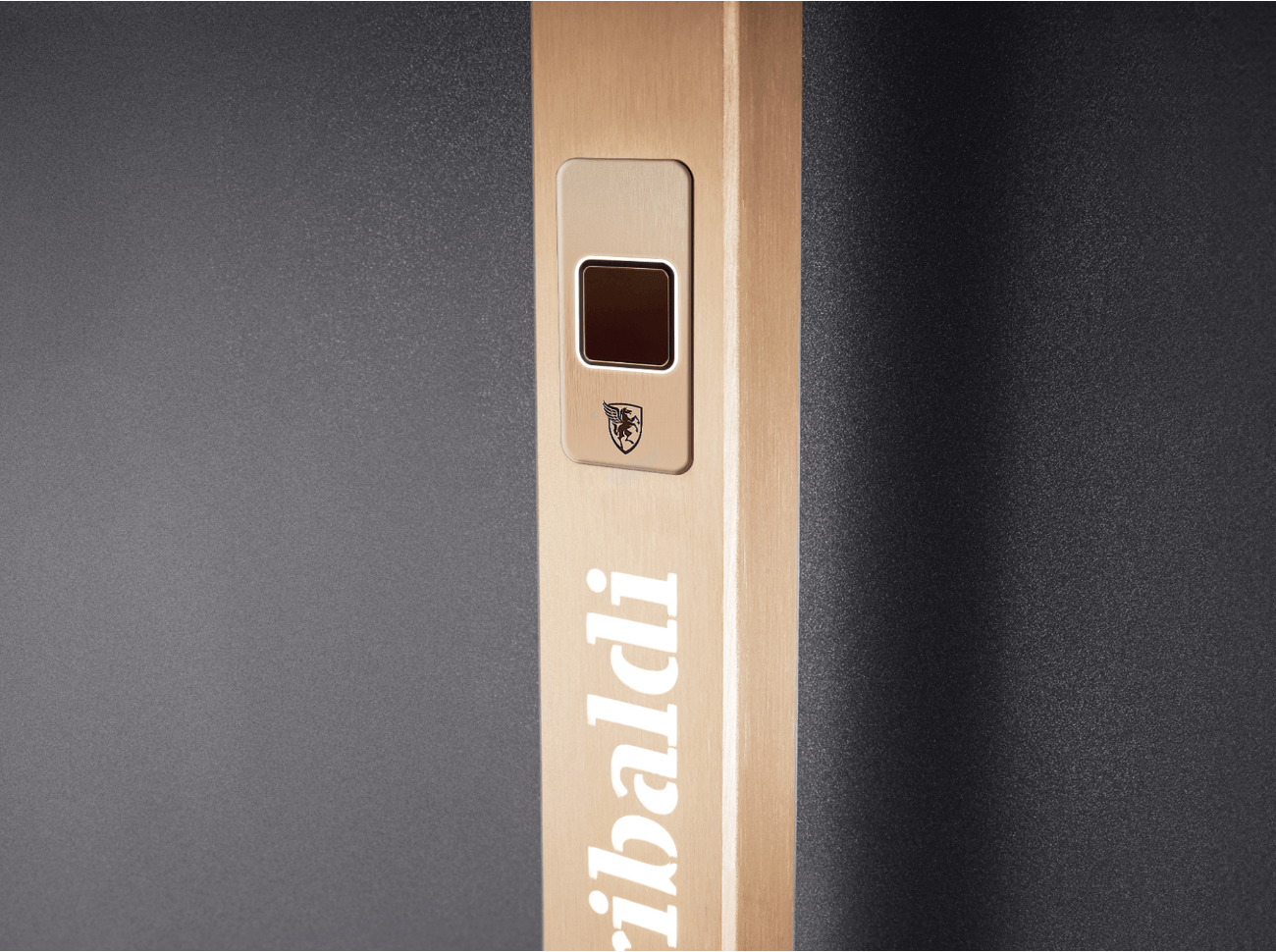

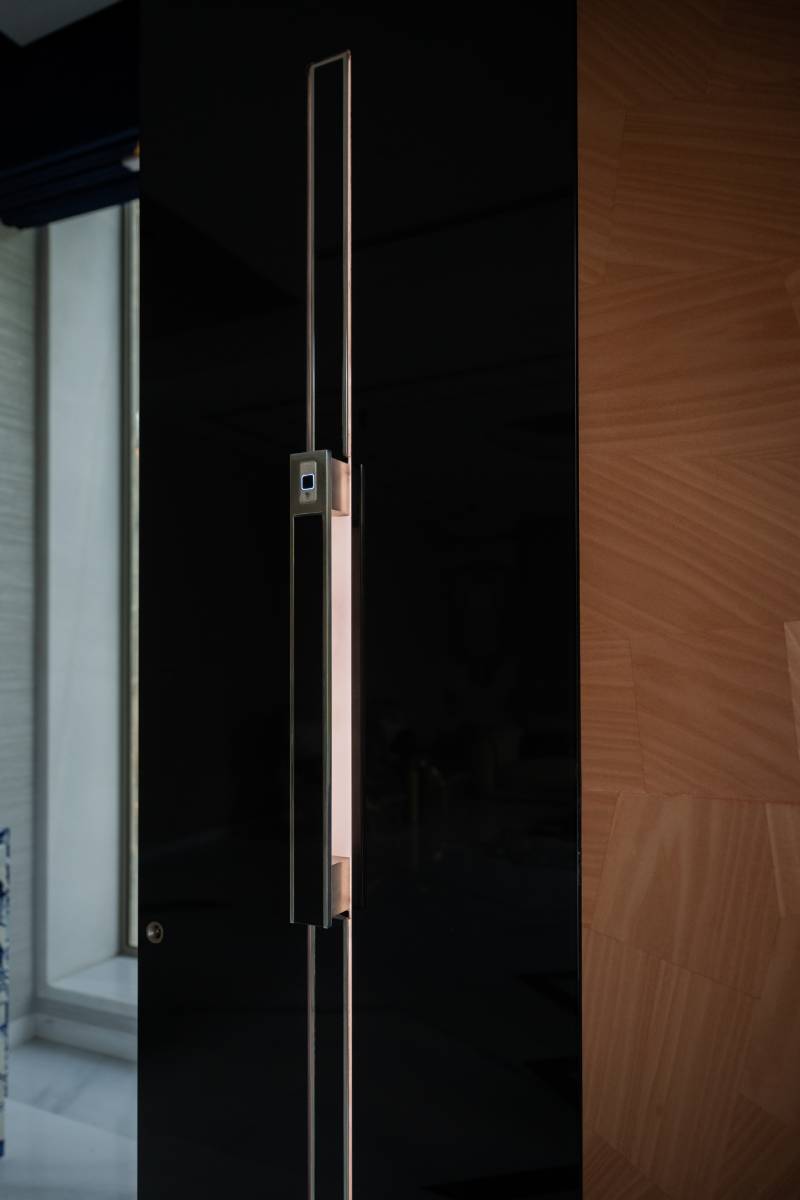

FINGER SCANNERThis modern and popular method of unlocking doors with a finger scanner ensures enhanced security and, above all, a simpler and more comfortable entry for your entire family, as you can store fingerprints of multiple selected individuals simultaneously. Forget about keys and concerns.
-

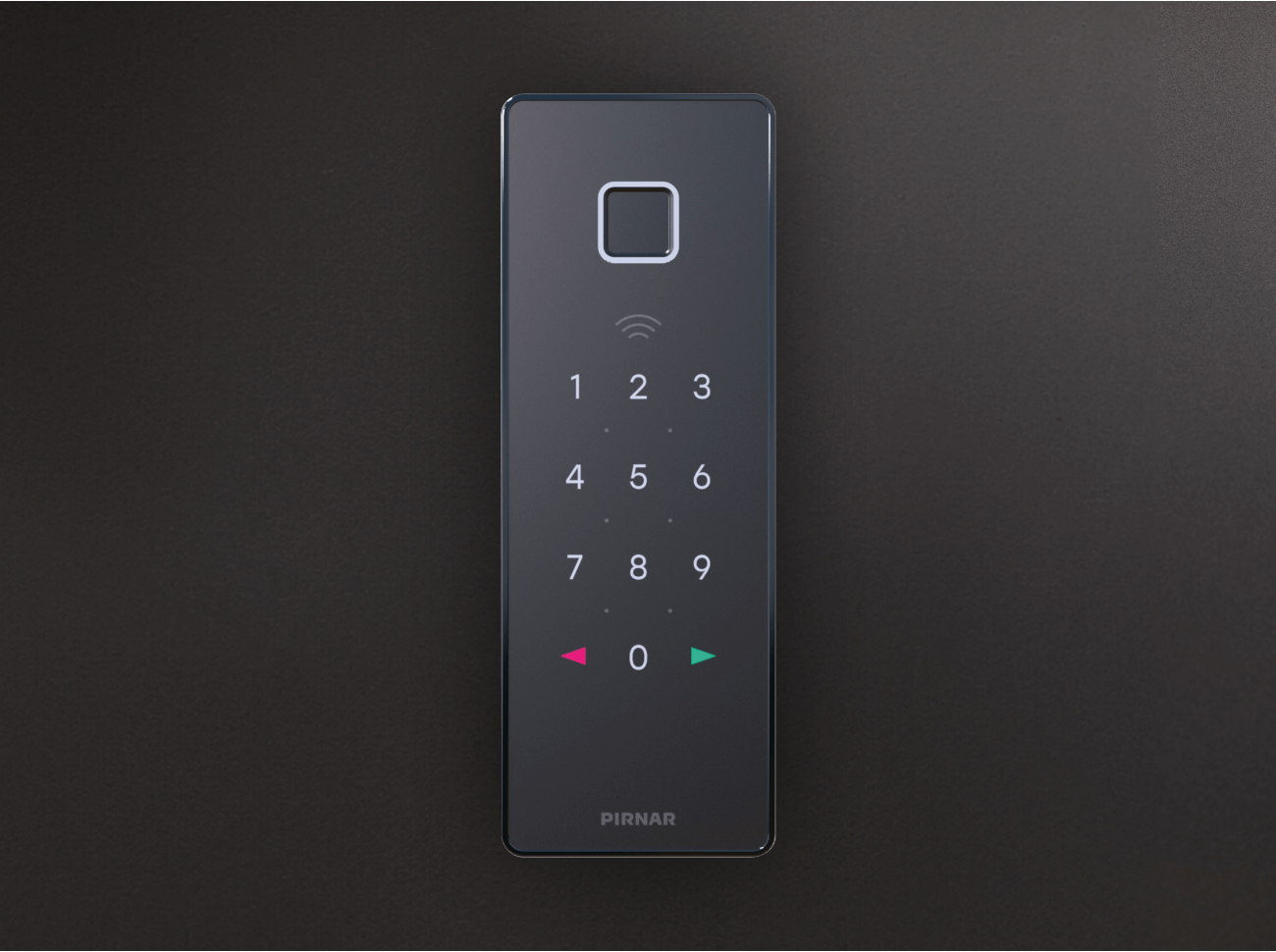

SECUROSMART KEYPADThe modern keypad allows for unlocking with various PIN codes tailored to specific needs and unlocking with an NFC card. It features a finger scanner and integrated and wireless doorbell, managed via the Pirnar app.
-

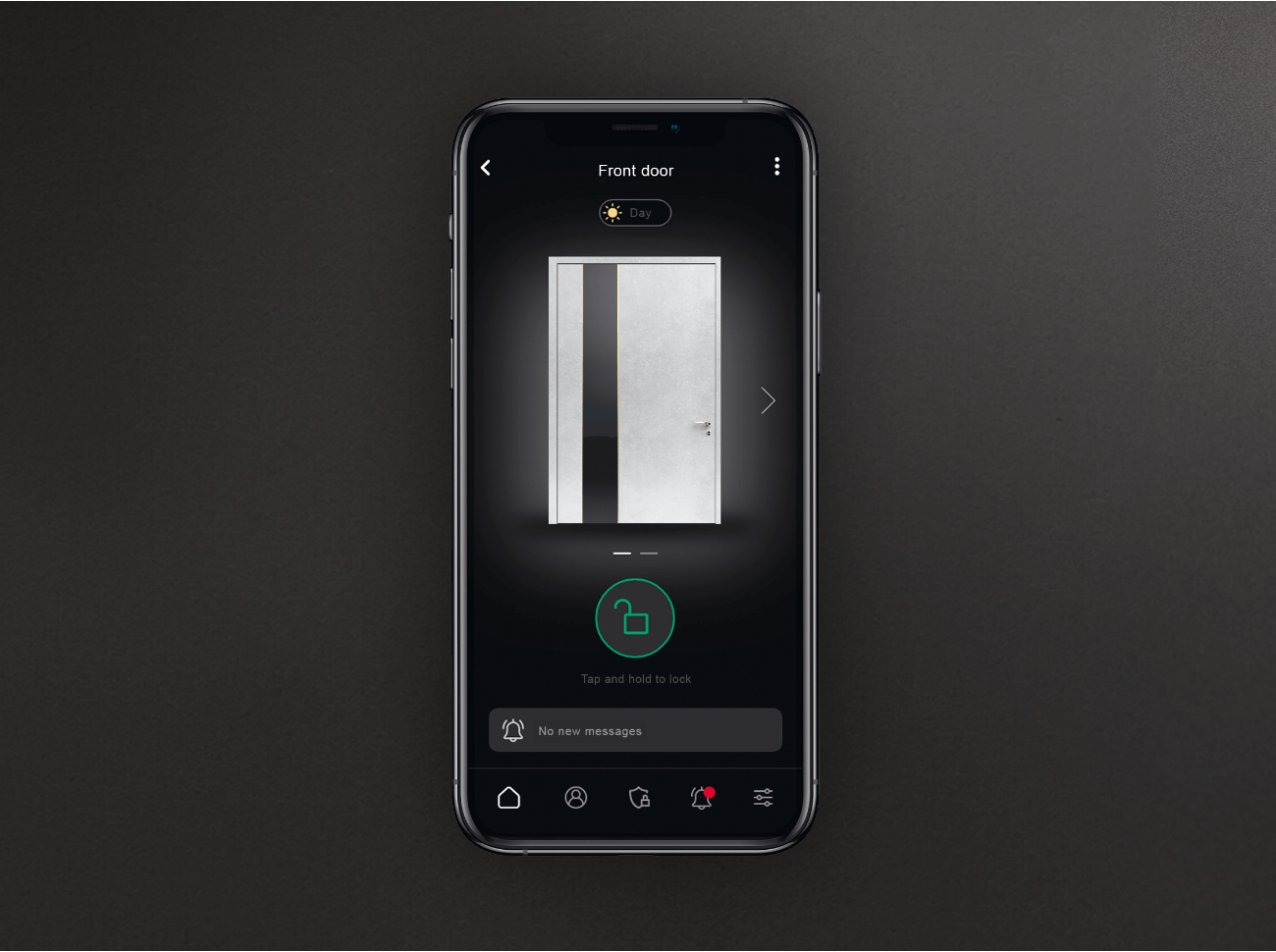

SecurosmartThe SecuroSmart system in the Pirnar mobile application boasts outstanding functionalities for easy and secure door usage. Even if you are on the other side of the world, you can conveniently unlock your doors.
-

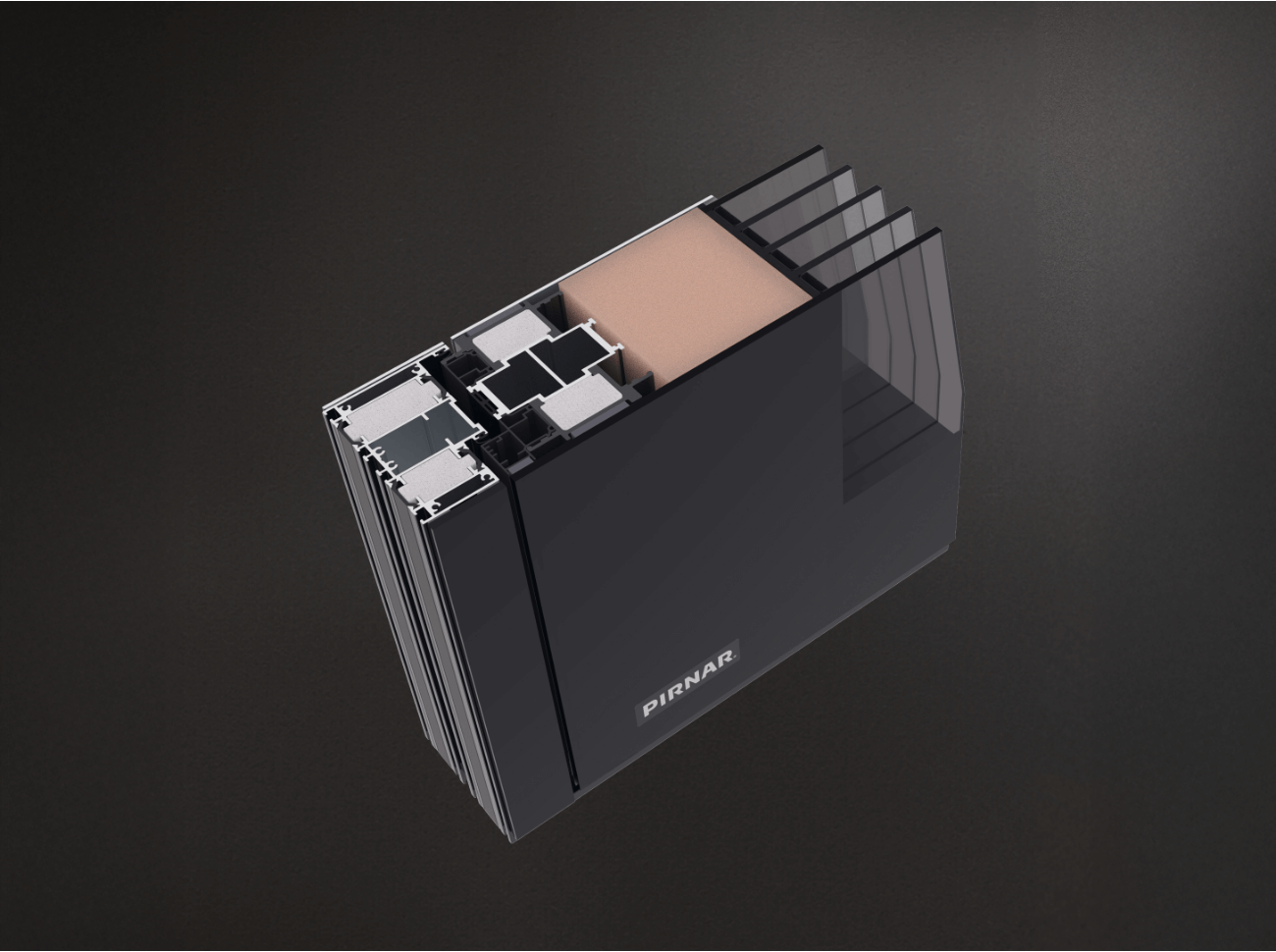

GLAZINGFeaturing 6 mm tempered insulating glass, our 5-layer tempered glazing offers superior strength and security, ensuring enhanced protection while maintaining aesthetic elegance in every pivot door design.
-

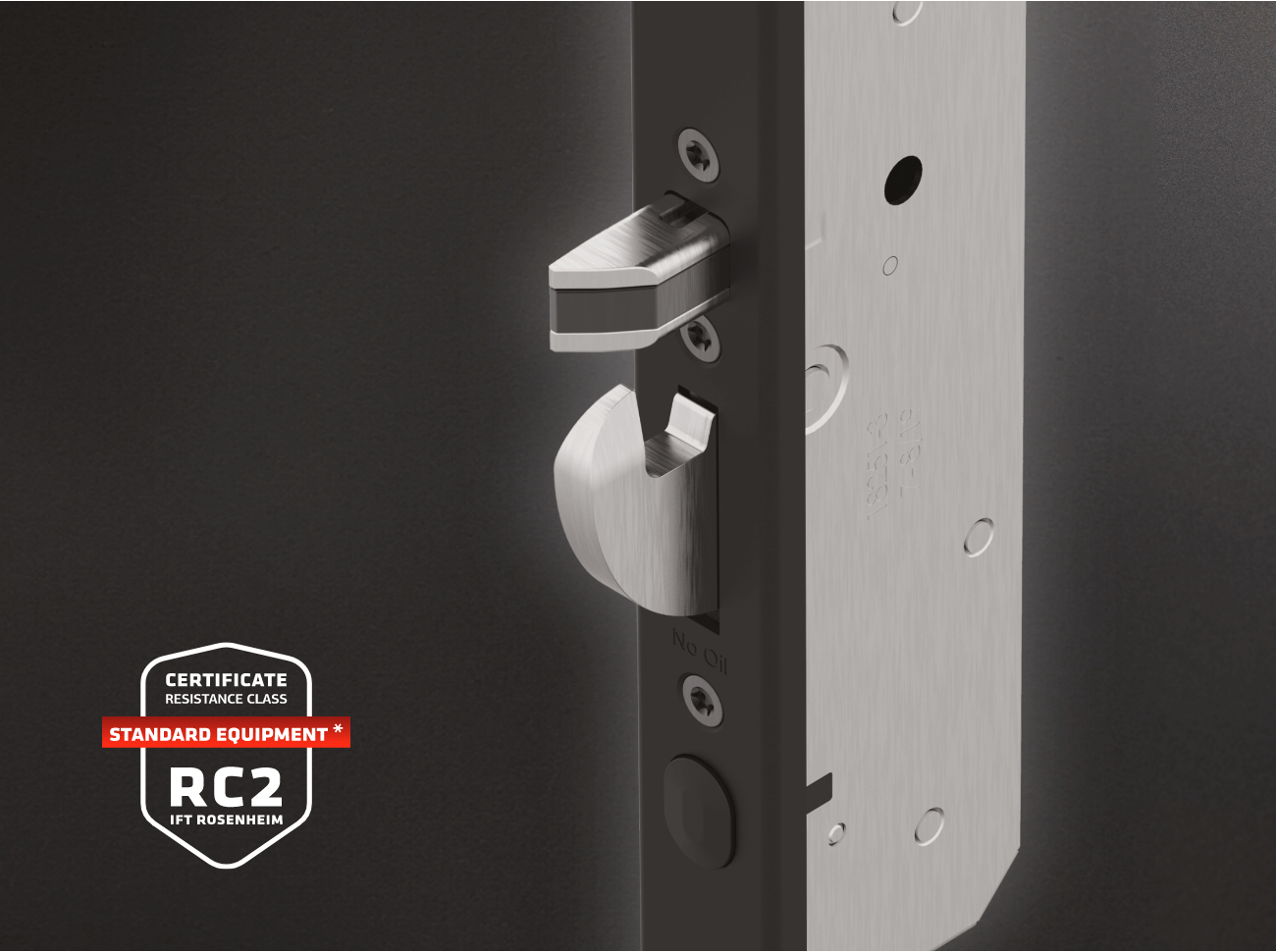

LOCKING SYSTEMSPirnar pivot doors feature state-of-the-art locking systems for security and convenience. Doors up to 3 m use the Armo Comfort Electro lock with motorized, keyless unlocking and automatic locking. For doors above 3 m, the 3-point locking system OmniLock is available as un upgrade with up to 12 locking points on both sides. Both systems provide enhanced protection with burglary resistance class RC2*, delivering superior safeguarding and peace of mind.
*The RC2 package is standardly available for a solid door leaf, without insulating glass in the door leaf. For designs with insulating glass in the door leaf, the RC2 package is available as an additional option.
- HINGES
Heavy-duty hinges represent an important security feature of Pirnar’s pivot doors, celebrated for their remarkable strength and durability. Beyond their elegant design, these hinges remain inaccessible from the exterior, enhancing overall safety and integrity.

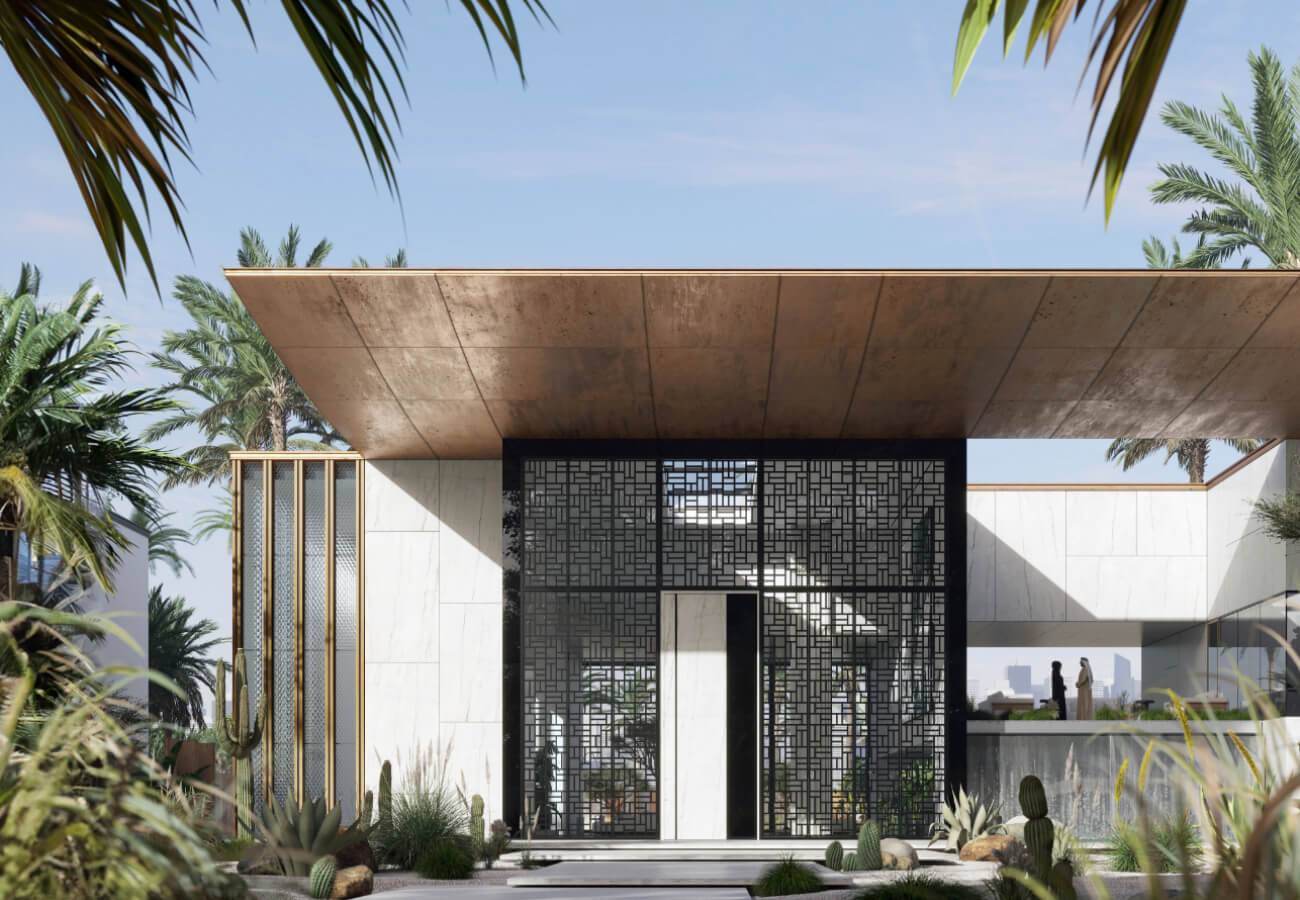

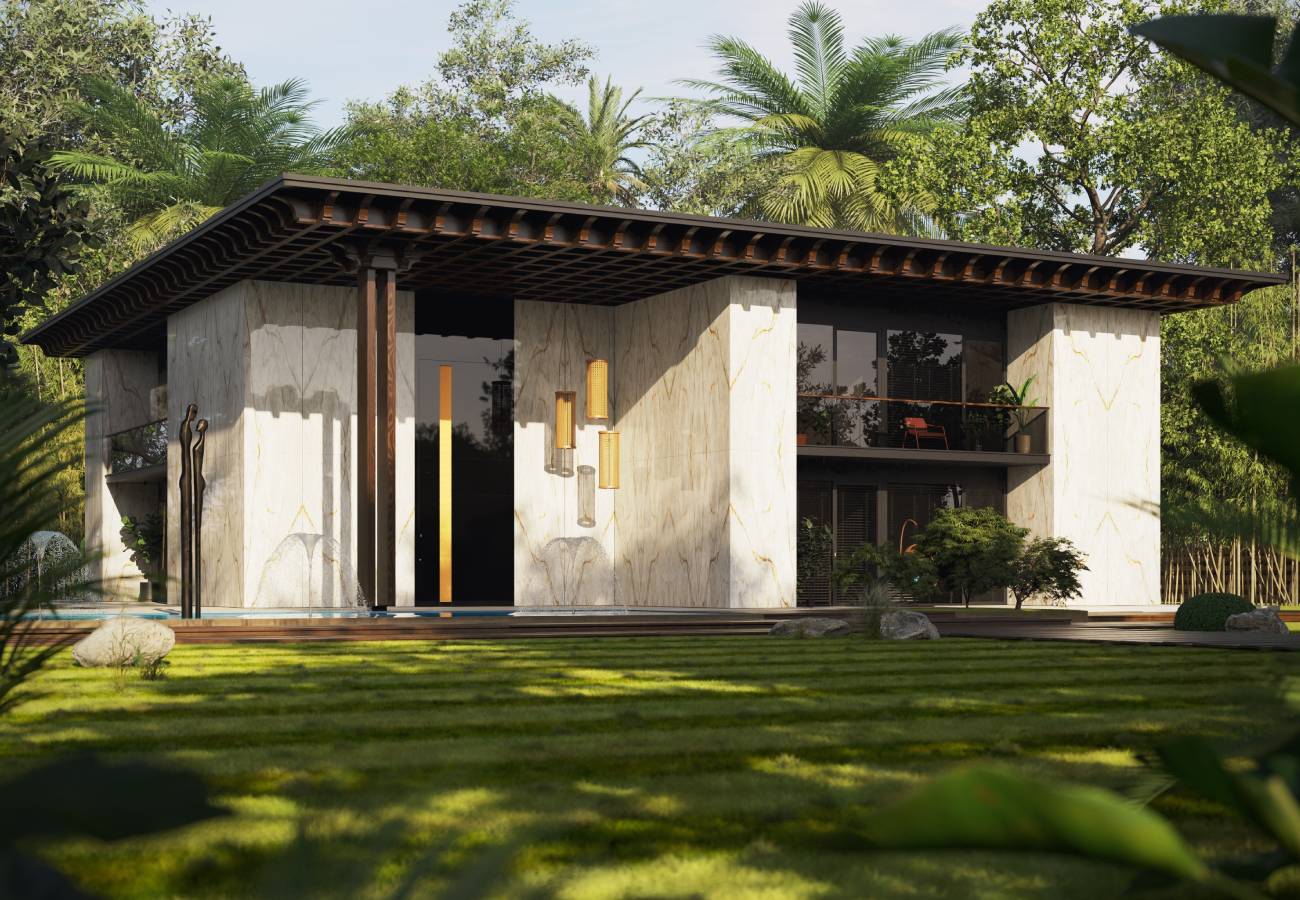

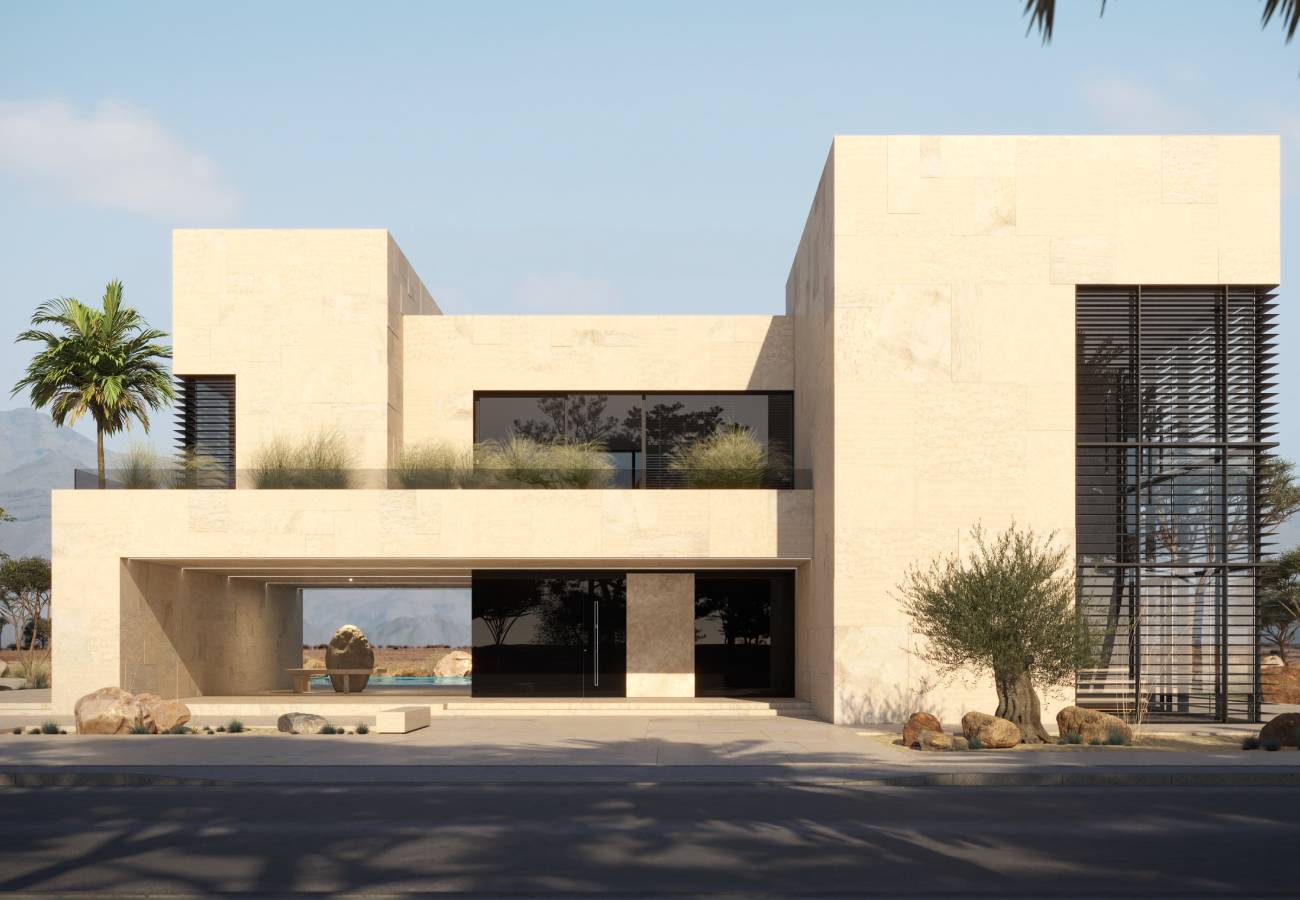

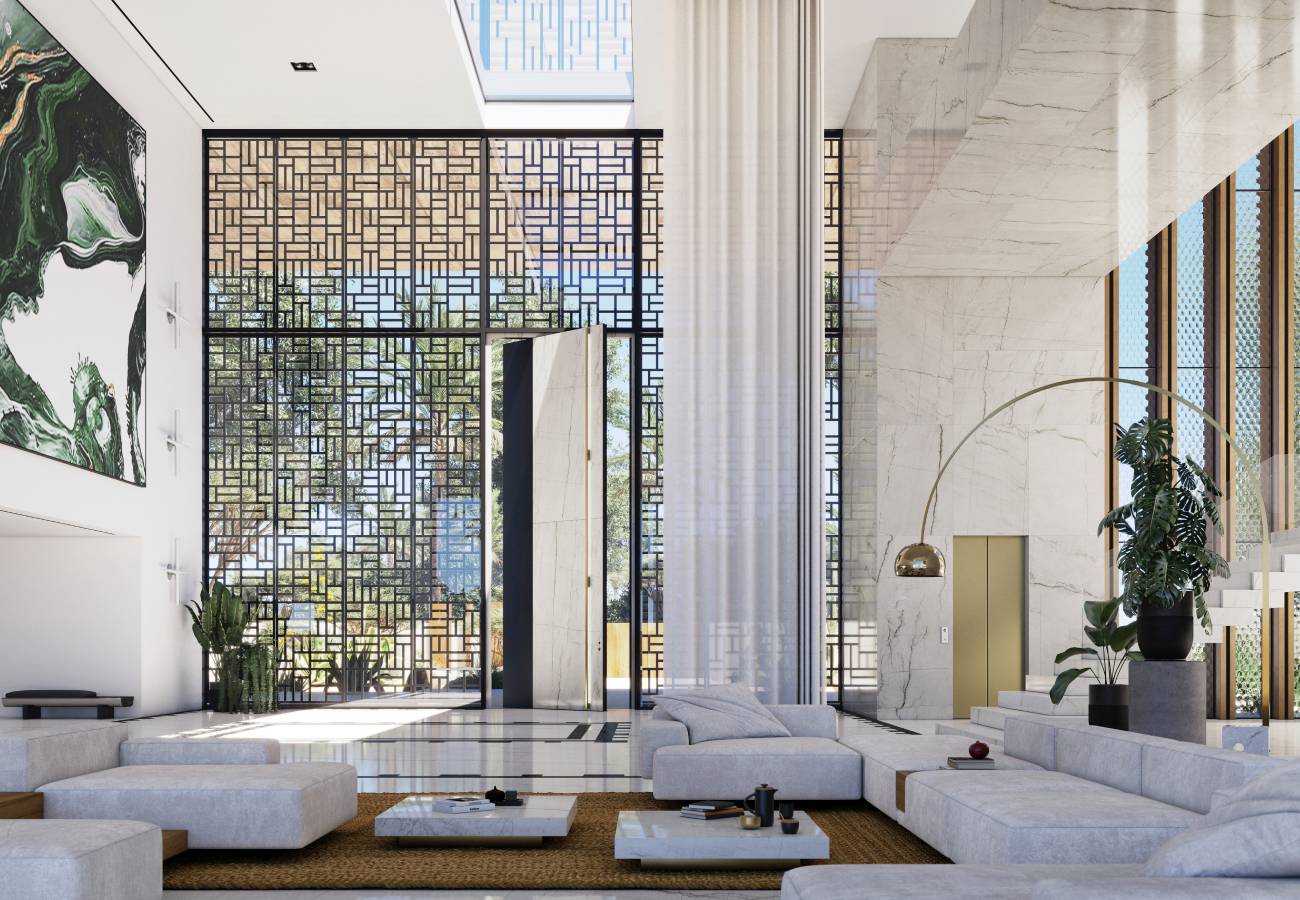

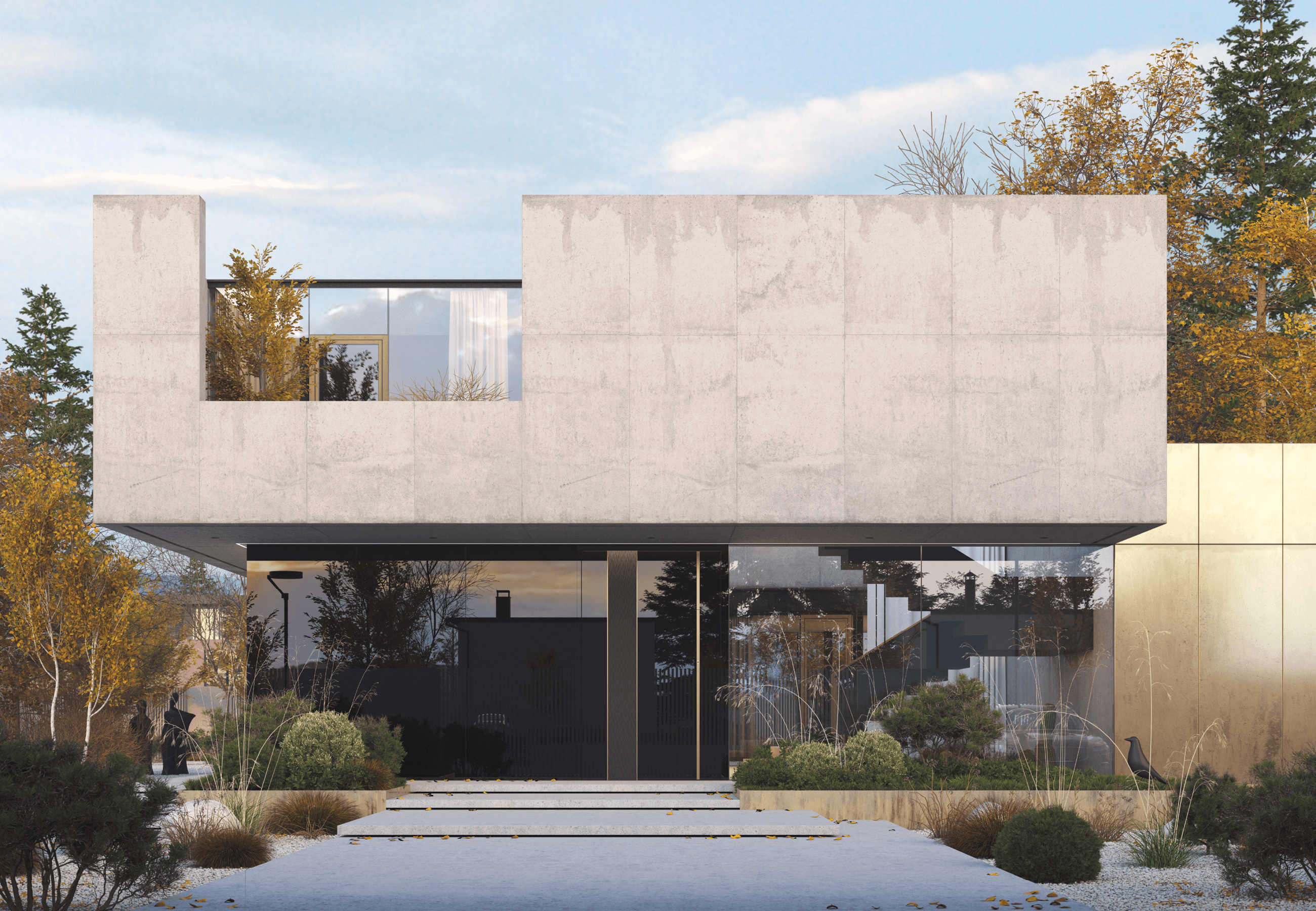

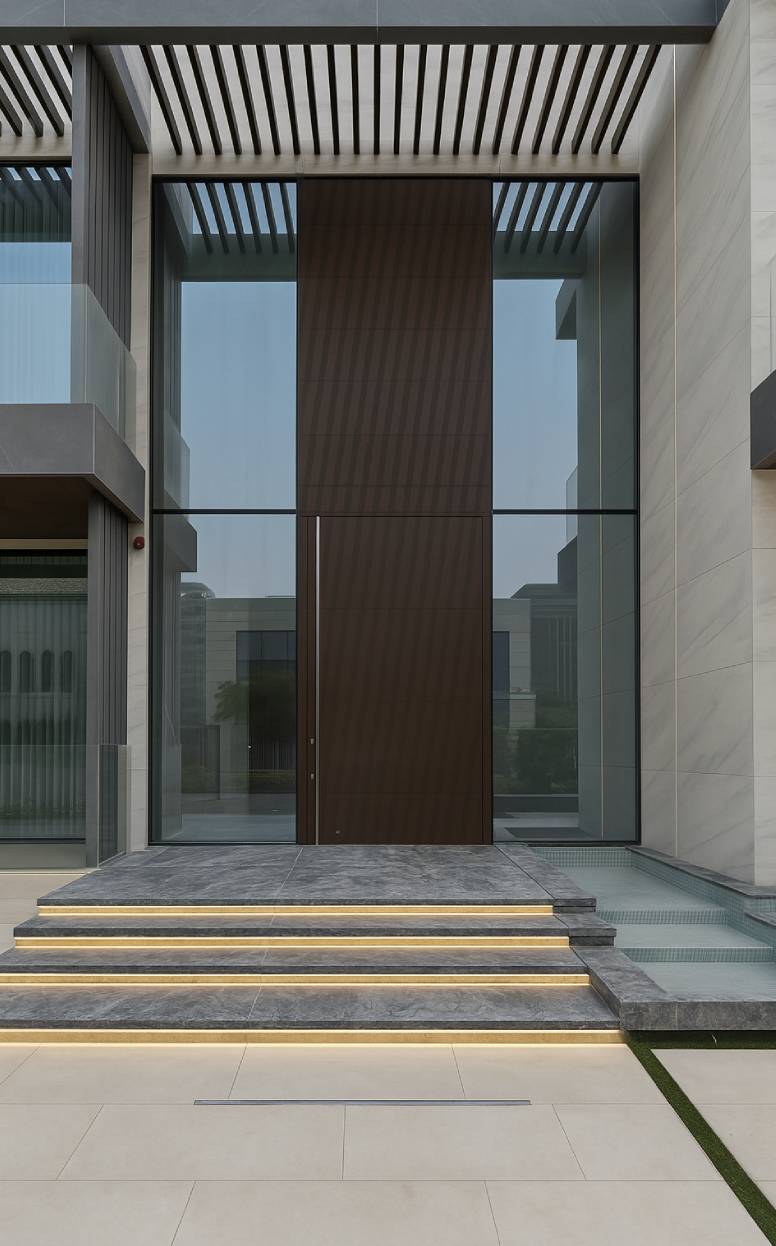

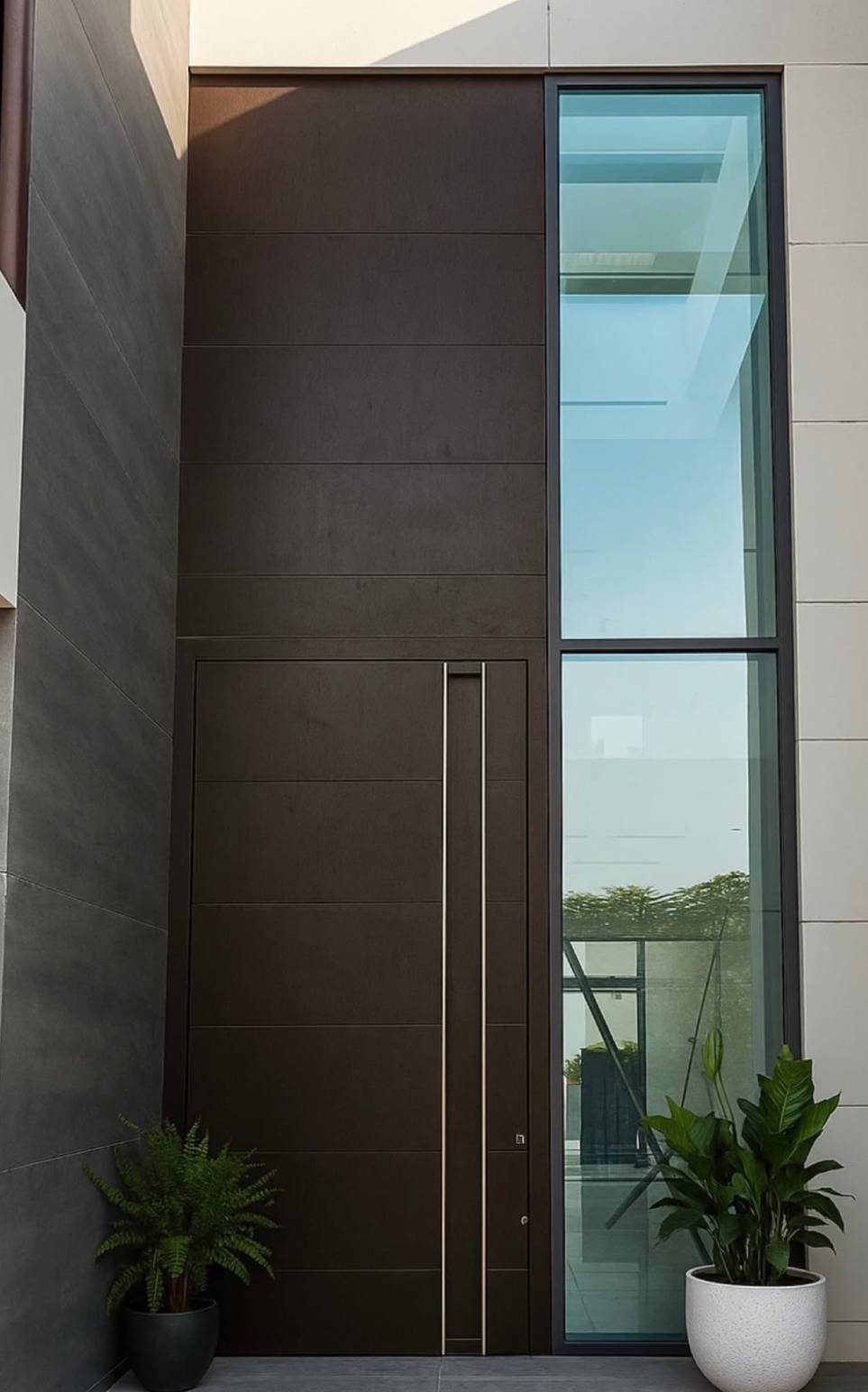

Inspirations

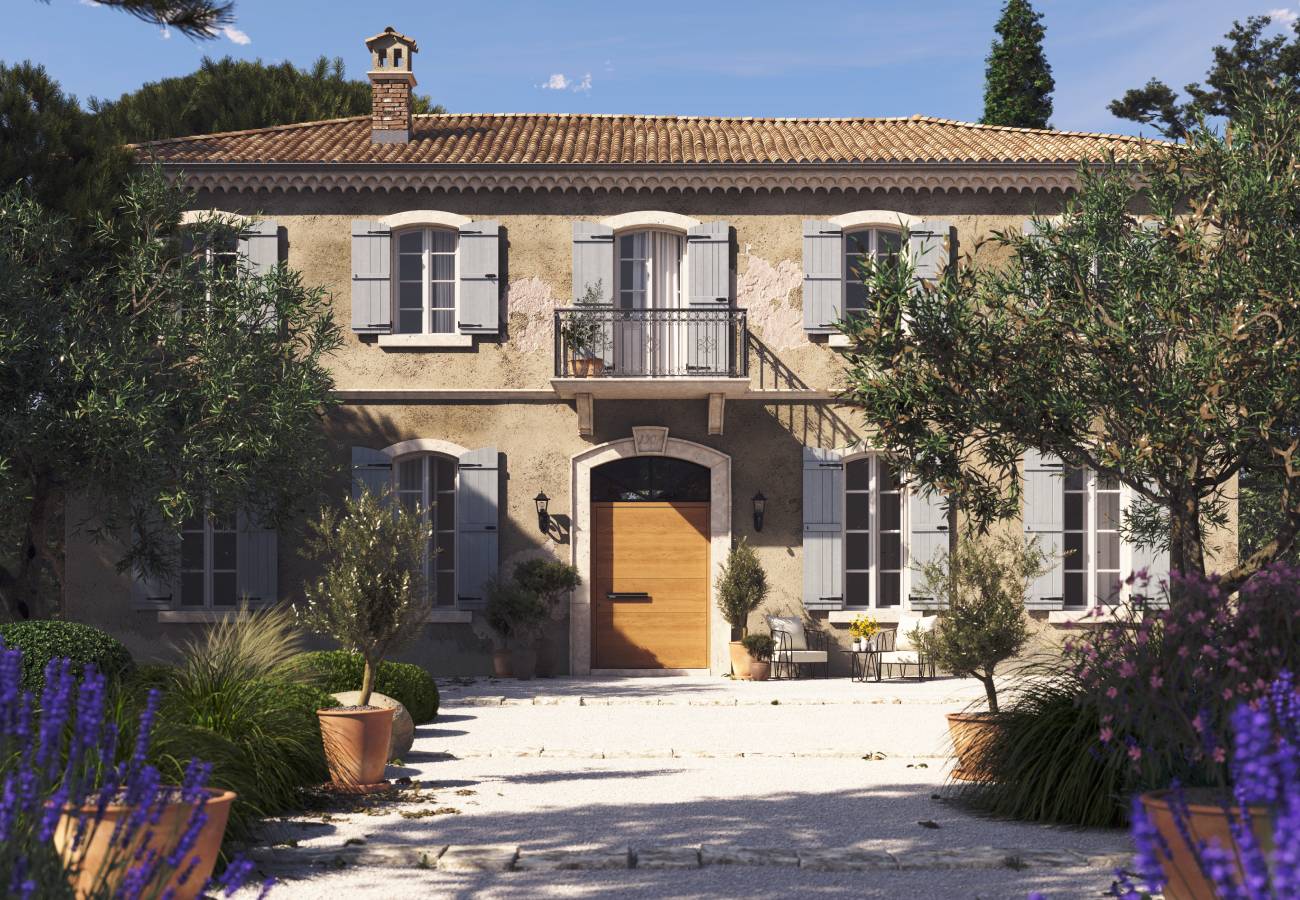

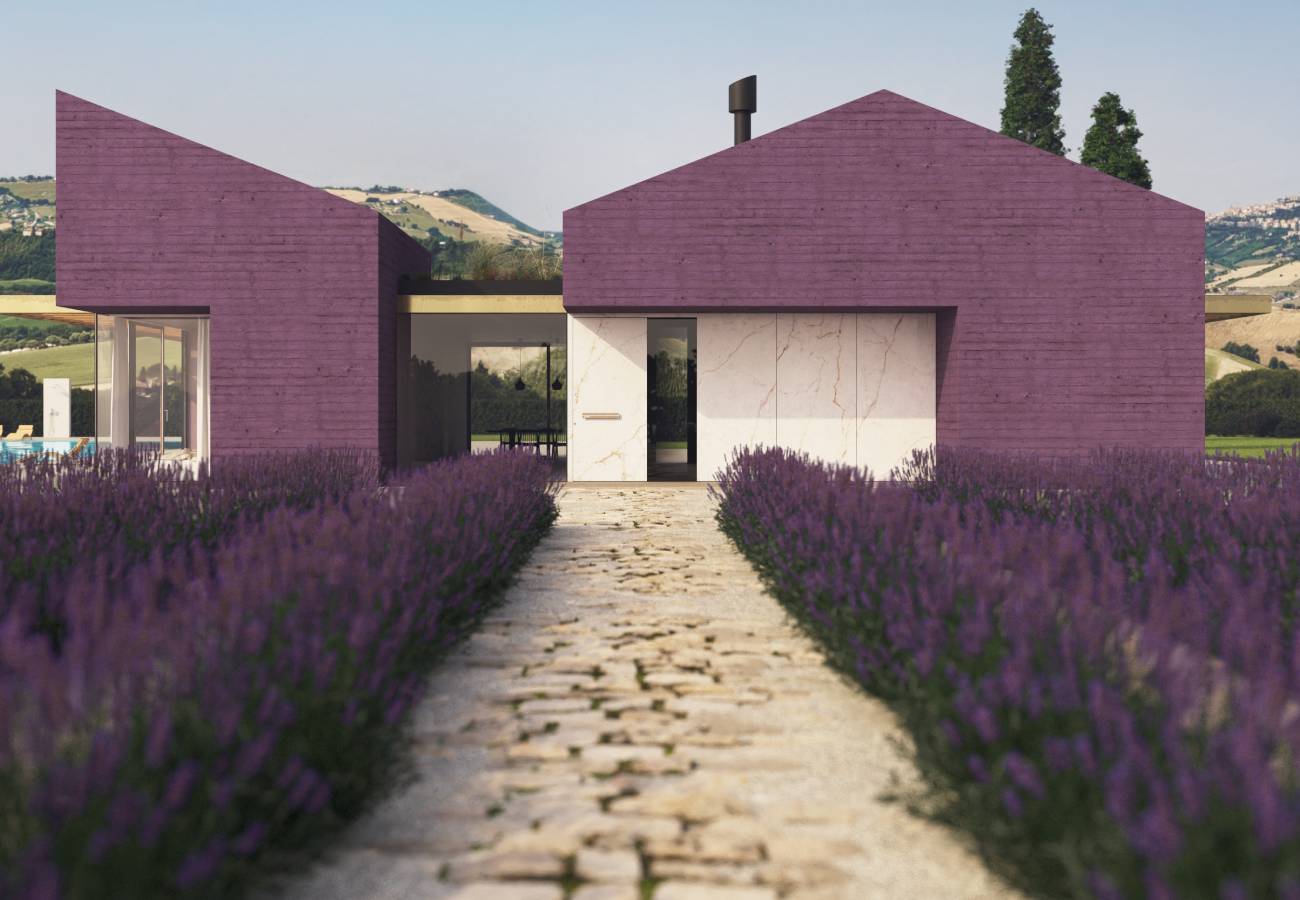

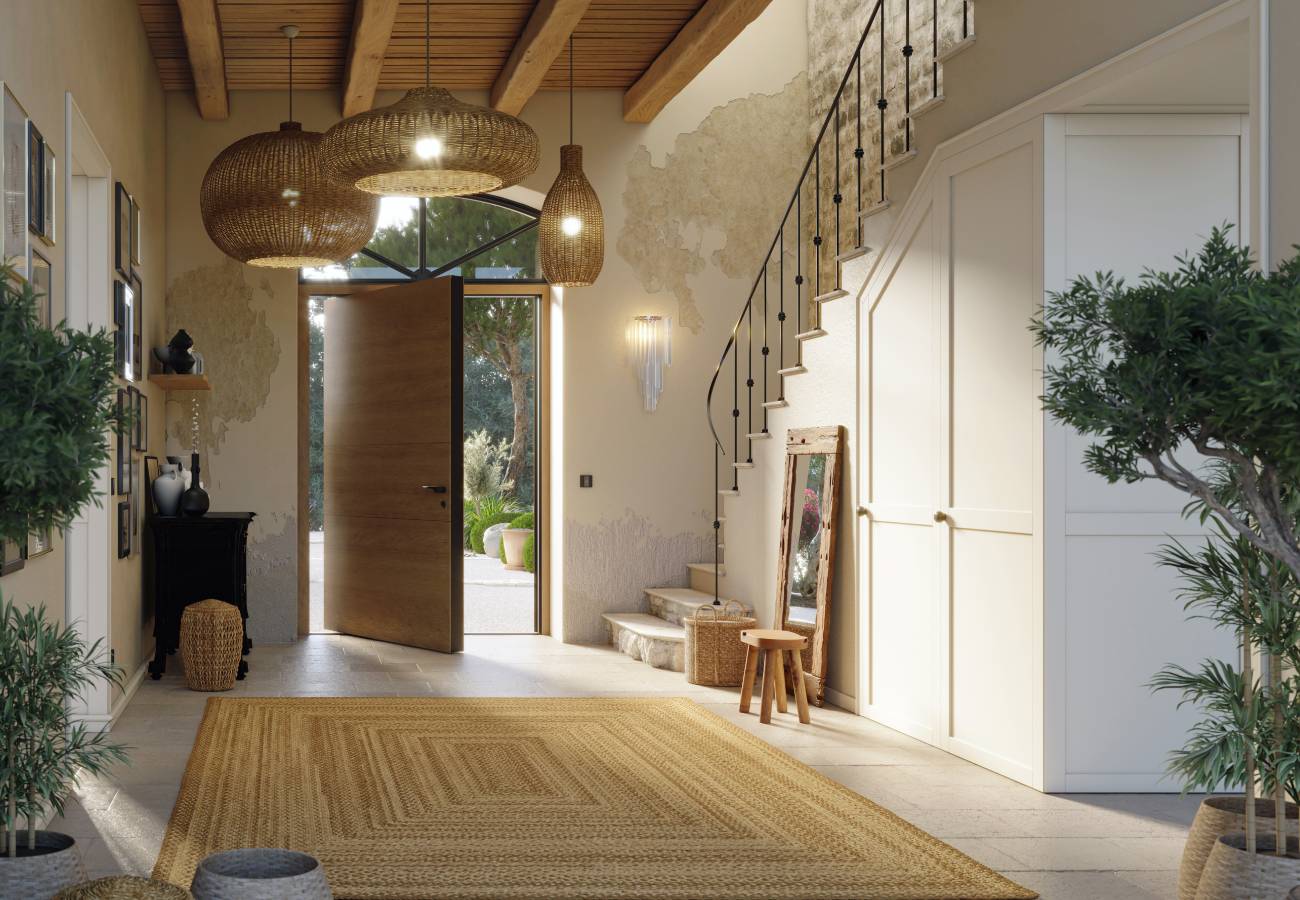

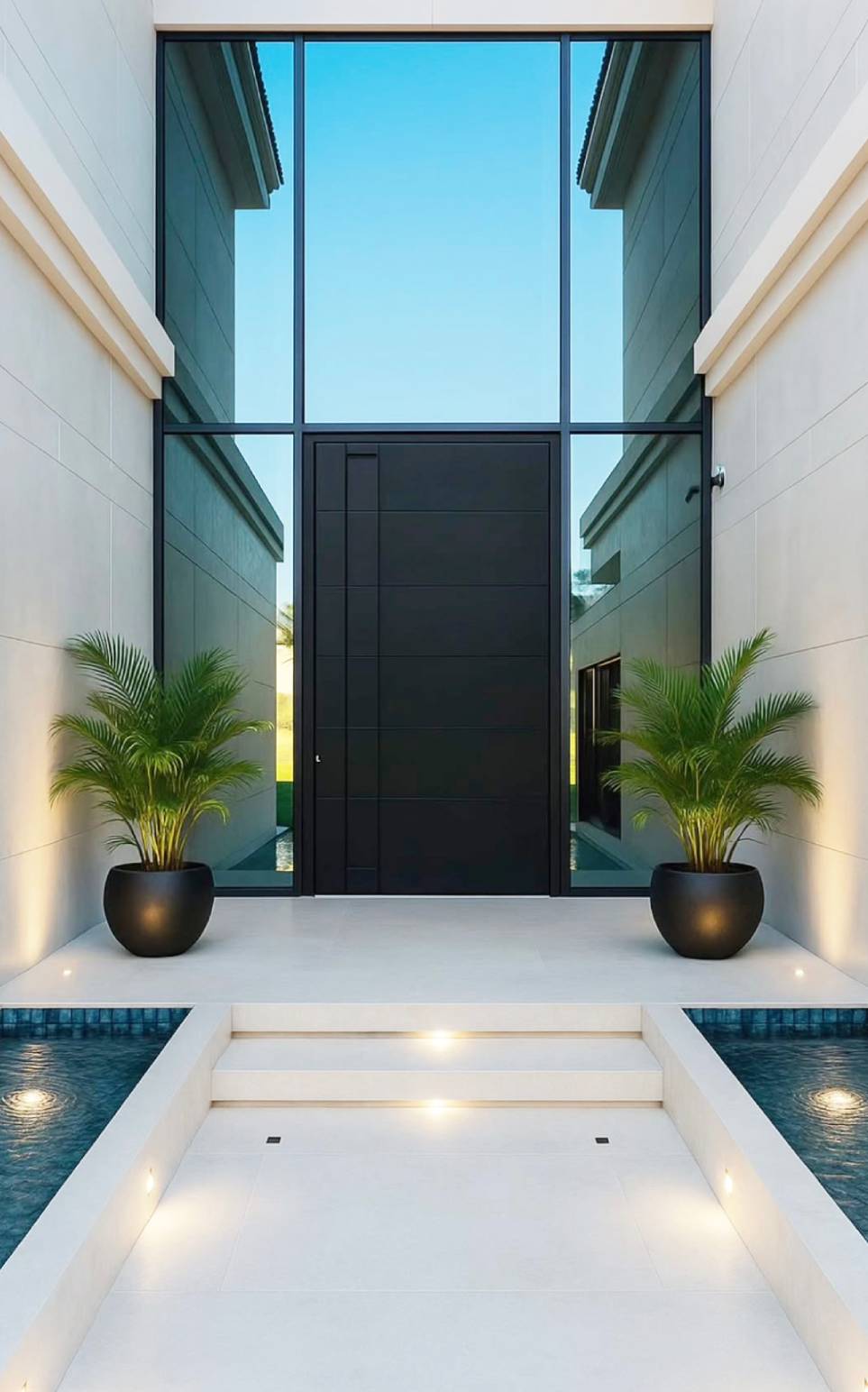

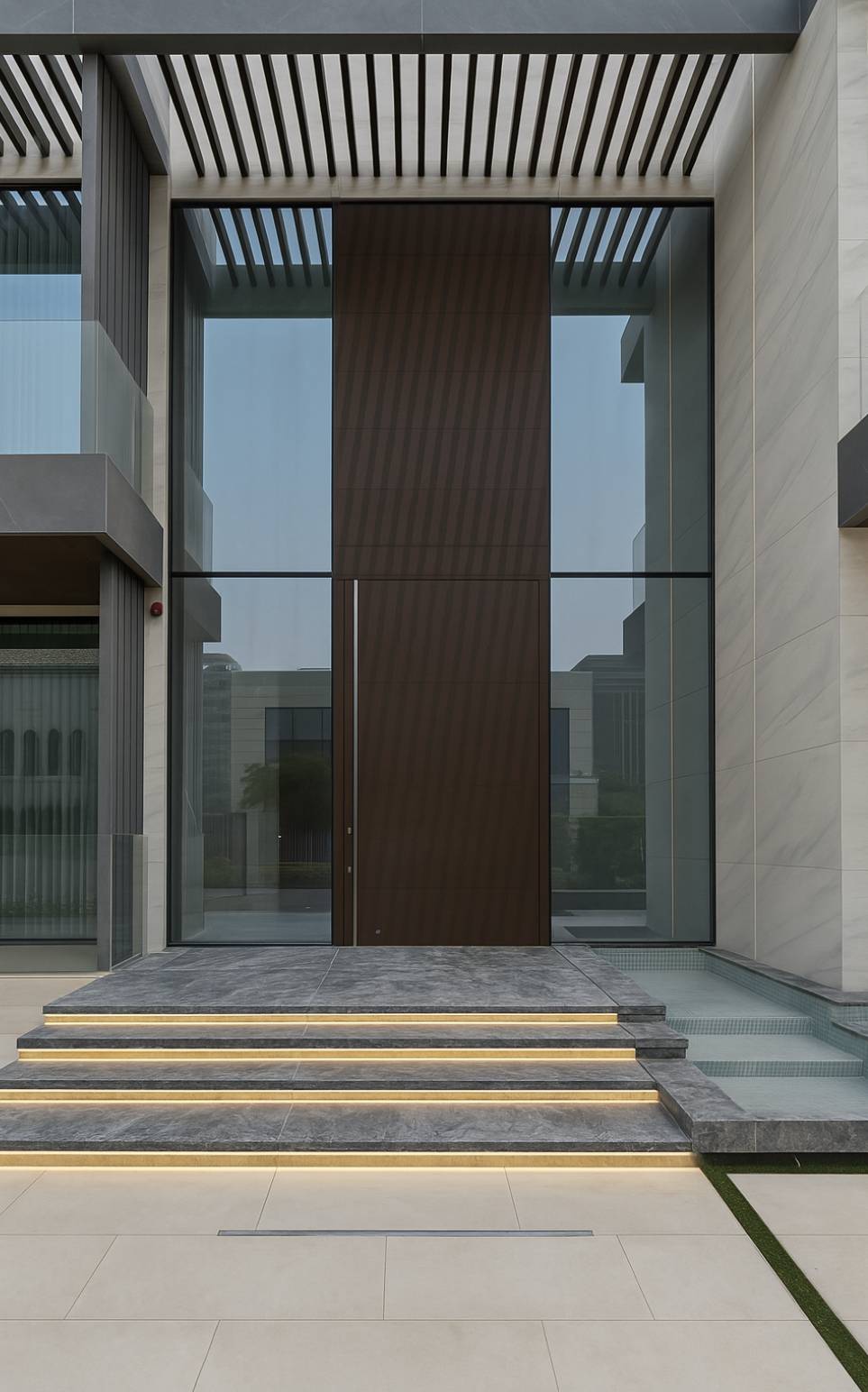

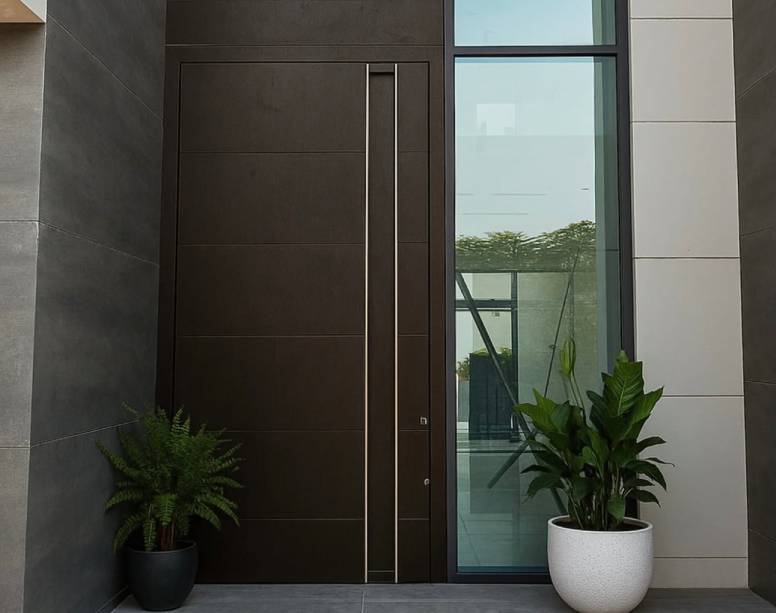

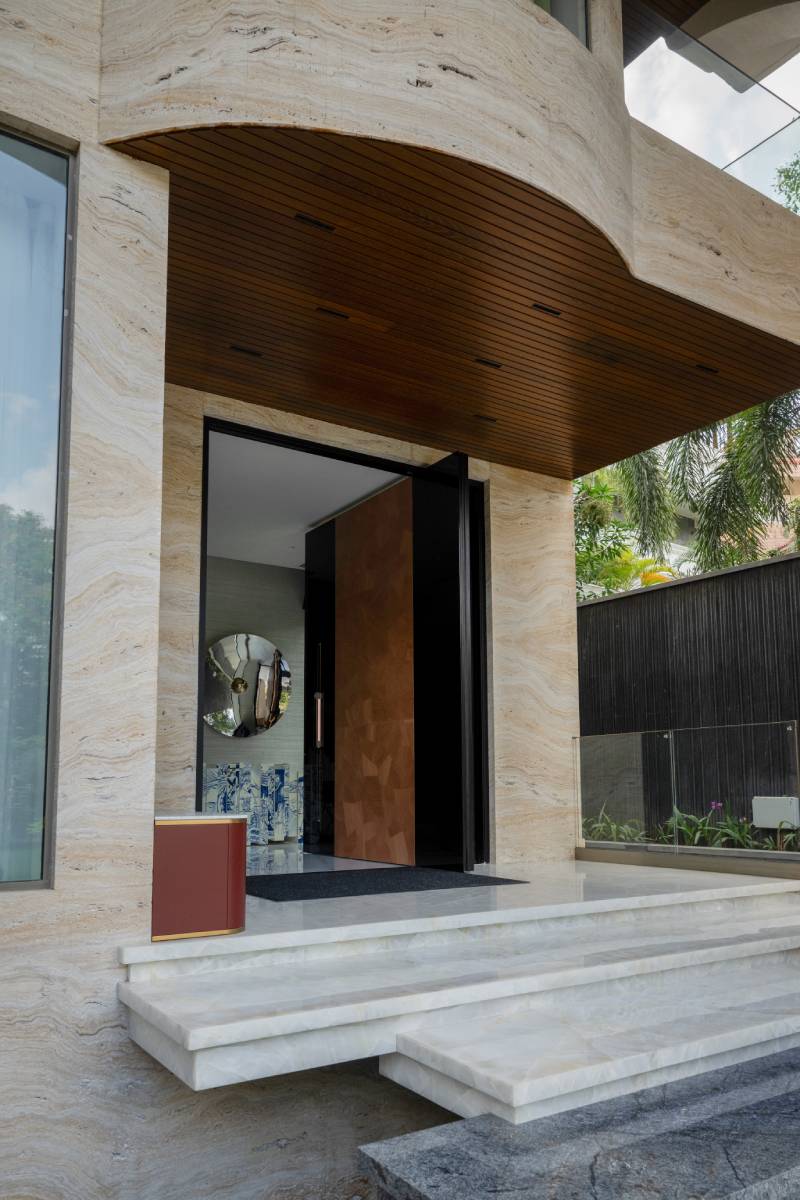

Find inspiration for your dream pivot door and explore our most beautiful references from around the world.
Get an offer for your dream pivot door
Find inspiration in the virtual pivot door catalogue
Explore the complete collection of Pirnar pivot doors inspirations and discover different variations of our base models in the virtual catalogue.
Uncover inspiration for your dream pivot door.
